304L 316L 321 SS Steel 45 Degree Elbow 1/2” To 60” SCH10S To SCH160 ASME B16.9

Name: 304L 316L 321 SS Steel 45 Degree Elbow 1/2u201d To 60u201d SCH10S To SCH160 ASME B16.9
Brand: TOBO STEEL GROUP CHINA

Price Negotiable

Price: Negotiation

MOQ: 3PCS

Delivery Time: 15DAYS

Brand: TOBO

Product Description

45º / 90º Elbow ASTM A403 WP304 , 304L , 316L ,321 Stainless Steel Elbow 1/2” To 60” SCH10S To SCH160 ASME B16.9

Description:

1. Product I:45º / 90º Elbow ASTM A403 WP304 , 304L , 316L ,321 Stainless Steel Elbow 1/2” To 60” SCH10S To SCH160 ASME B16.9

2. Degree:15 ° , 30° , 45° , 60° , 90° , 180° , male and female

3. Grade: 310S, 310, 309, 309S, 316, 316L, 316Ti, 316LN, 317, 317L, 321, 321H, 347, 347H, 304, 304L, 304H, 304N, 304LN, 302, 301, 201, 202, 904L, Duplex, etc
We can also produce other specifications according to customers' requirements.

4. Material:310S,310,309,309S,316,316L,316Ti,316LN,317,317L,321,321H,347,347H,304,304L,304H,

5. 304N,304LN,302, 301,201,202,904L,Duplex,etc

6. Standard:
JIS B2311,B2312,B2312,B2316
ASME/ANSI B16.9,B16.11,B16.28,ASTM A403
MSS SP-43,SP-83,SP-97
GB 12459,GB/T 13401-2005,GB/T 14383-2005,GB/T10752-1995
SY/T0510-1998,ST5257-91

7. Working pressure: -20° C~150° C

8. Applications range:For use in the petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat exchanger, and other fields.

9. Technique: welded elbow,punched elbow,Hot-pressed elbow,forged elbow

10. Radius:Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc

11. Type:15 ° ,30 ° ,45 ° ,60 ° ,90 ° , 180 ° ,male and female

12. Outside Diameter: 1/8"-100" (6-2500mm)

13. Wall Thickness:SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb

14. Surface:annealing,picking,hair line,polished,bright,brush,coated,sand blast,etc

15. Export to: Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand,Korea,Iran,India, Egypt,Oman,Kuwait,South Africa,Dubai,Mexico,Peru,Malaysia,Viet Nam,Russia,Italy,etc

16. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

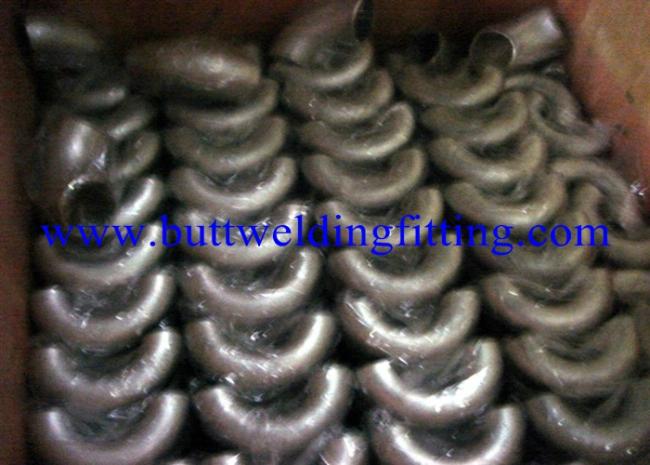

17. Packing: Wooden box or wooden pallet.

18. H.S Code: 73072300

19. Material:

Material	ASTM	Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.
		Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.)
		Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3
	DIN	Carbon steel:St37.0,St35.8,St45.8
		Stainless steel:1.4301,1.4306,1.4401,1.4571
		Alloy steel:1.7335,1.7380,1.0488(1.0566)
	JIS	Carbon steel:PG370,PT410
		Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
		Alloy steel:PA22,PA23,PA24,PA25,PL380
	GB	10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo

Applications:

We,this type pipe fittings be widely used in kinds of industries:

a. Paper Making,Waste-water Treatment

b. Chemical Industry and Natural Gas

c. Shipbuilding

d. Electrical equipment

e. Nuclear Energy

f. Construction

g. Petroleum

Specification

ND		OD(MM)	Center to end		Approx Weight KG/PCS
DN	INCH	OD	A	O	5S	10S	20S	40S	80S
20	3/4	25 20.7	-	-	-	-	-	-	-
25	1	32 33.4	25	50	0.055	0.096	0.11	0.11	0.15
32	11/4	38 42.2	32	64	0.069 0.075	0.102 0.132	0.14 0.15	0.158 0.17	0.20 0.236
40	11/2	45 48.3	38	76	0.12 0.13	0.18 0.186	0.2 0 .21	0.22 0.24	0.3 0.33
50	2	57 60.3	51	102	0.17 0.176	0.297 0.308	0.787 0.396	0.42 0.44	0.6 0.616
65	21/2	73 76.1	64	128	0.35 0.364	0.53 0.546	0.64 0.655	0.89 0.91	1.0 1.29
80	3	89	76	152	0.486	0.729	0.972	1.36	1.94
90	31/2	101.6	89	178	0.7	1.05	1.4	1.96	2.8
100	4	108 114.3	102	204	0.90 0.94	1.2 1.4	1.7 1.876	2.56 2.77	4.0 4.13
125	5	133 141.3 139.7	127	254	1.8 2.02	2.1 2.37	3.2 3.49	4.0 4.4	6.5 6.98
150	6	159 168.3 165.2	152	304	2.6 2.9	3.1 3.4	4.8 5.0	6.8 7.1	10.3 11.0
200	8	219 216.3	203	406	6.25 5.0	7.0 6.8	11.08 10.7	14.1 13.5	22 21
250	10	273 267.3	254	508	10.08 9.7	11.2 10.0	17.6 16.0	24.6 23.0	44.8 40.0
300	12	325 323.9 318.5	305	610	14.8	16.7	23.3	37	64.5
350	14	377 355.6	356	711	19.1 15.6	22 19.5	38 34	48.6 42.6	80.0 74.0
400	18	426 406.4	406	812	29.0 26.5	35 30	57.0 49.9	67 62	149.0 135.0
500	20	529 508	508	1016	-	-	-	-	-
550	22	559	559	1118	-	-	-	-	-
