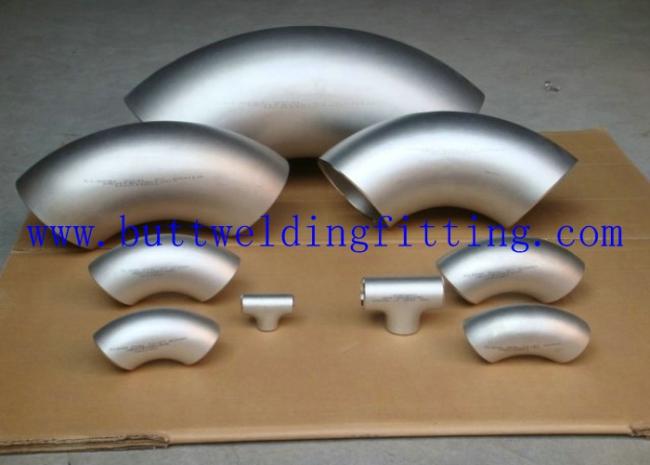

Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304
Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304
Description:
1. Product Item No.:Seamless Stainless Steel Elbow
2. Degree:15 ° , 30° , 45° , 60° , 90° , 180° , male and female
3. Grade: 310S, 310, 309, 309S, 316, 316L, 316Ti, 316LN, 317, 317L, 321, 321H, 347, 347H, 304, 304L,
304H, 304N, 304LN, 302, 301, 201, 202, 904L, Duplex, etc
We can also produce other specifications according to customers' requirements.
4. Material:310S,310,309,309S,316,316L,316Ti,316LN,317,317L,321,321H,347,347H,304,304L,304H,
5. 304N,304LN,302, 301,201,202,904L,Duplex,etc
6. Standard:
JIS B2311,B2312,B2312,B2316
ASME/ANSI B16.9,B16.11,B16.28,ASTM A403
MSS SP-43,SP-83,SP-97
GB 12459,GB/T 13401-2005,GB/T 14383-2005,GB/T10752-1995
SY/T0510-1998,ST5257-91
7. Working pressure: -20° C~150° C
8. Applications range:For use in the petroleum, smelting, foodstuff, power, papermaking, chemical,
medical equipment, aviation, boiler heat exchanger, and other fields.
9. Technique: welded elbow,punched elbow,Hot-pressed elbow,forged elbow
10. Radius:Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc
11. Type:15 ° ,30 ° ,45 ° ,60 ° ,90 ° , 180 ° ,male and female
12. Outside Diameter: 1/8"-100" (6-2500mm)
13. Wall Thickness:SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb
14. Surface:annealing,picking,hair line,polished,bright,brush,coated,sand blast,etc
15. Export to: Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand
,Korea,Iran,India, Egypt,Oman,Kuwait,South Africa,Dubai,Mexico,Peru,Malaysia,Viet Nam,Russia,Italy,
etc
16. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
17. Packing: Wooden box or wooden pallet.
18. H.S Code: 73072300
19. Material:
|
Unit : inch |
Outside Dia. |
Wall Thickness (T) |
90o L/R Elbow Center To End A |
45o L/R Elbow Center To End B |
90o S/R Elbow Center To End A |
|||
|
|
|
Sch.5S |
Sch.10S |
Sch.40S |
Sch.80S |
|
|
|
|
1/2 |
0.840 |
0.065 |
0.083 |
0.109 |
0.147 |
1.50 |
0.625 |
|
|
3/4 |
1.050 |
0.065 |
0.083 |
0.113 |
0.154 |
1.12 |
0.438 |
|
|
1 |
1.315 |
0.065 |
0.109 |
0.133 |
0.179 |
1.50 |
0.875 |
1.00 |
|
1-1/4 |
1.660 |
0.065 |
0.109 |
0.140 |
0.191 |
1.88 |
1.00 |
1.25 |
|
1-1/2 |
1.900 |
0.065 |
0.109 |
0.145 |
0.200 |
2.25 |
1.12 |
1.50 |
|
2 |
2.375 |
0.065 |
0.109 |
0.154 |
0.218 |
3.00 |
1.38 |
2.00 |
|
2-1/2 |
2.875 |
0.083 |
0.120 |
0.203 |
0.276 |
3.75 |
1.75 |
2.50 |
|
3 |
3.500 |
0.083 |
0.120 |
0.216 |
0.300 |
4.50 |
2.00 |
3.00 |
|
4 |
4.500 |
0.083 |
0.120 |
0.237 |
0.337 |
6.00 |
2.50 |
4.00 |
|
5 |
5.563 |
0.109 |
0.134 |
0.258 |
0.375 |
7.50 |
3.12 |
5.00 |
|
6 |
6.625 |
0.109 |
0.134 |
0.280 |
0.432 |
9.00 |
3.75 |
6.00 |
|
8 |
8.625 |
0.109 |
0.148 |
0.322 |
0.500 |
12.00 |
5.00 |
8.00 |
|
10 |
10.750 |
0.134 |
0.165 |
0.375 |
0.500 |
15.00 |
6.25 |
10.00 |
|
12 |
12.750 |
0.156 |
0.180 |
0.375 |
0.500 |
18.00 |
7.50 |
12.00 |
|
14 |
14.000 |
0.156 |
0.250 |
0.375 |
0.500 |
21.00 |
8.75 |
14.00 |
|
16 |
16.000 |
0.165 |
0.250 |
0.375 |
0.500 |
24.00 |
10.00 |
16.00 |
|
18 |
18.000 |
0.165 |
0.250 |
0.375 |
0.500 |
27.00 |
11.25 |
18.00 |
