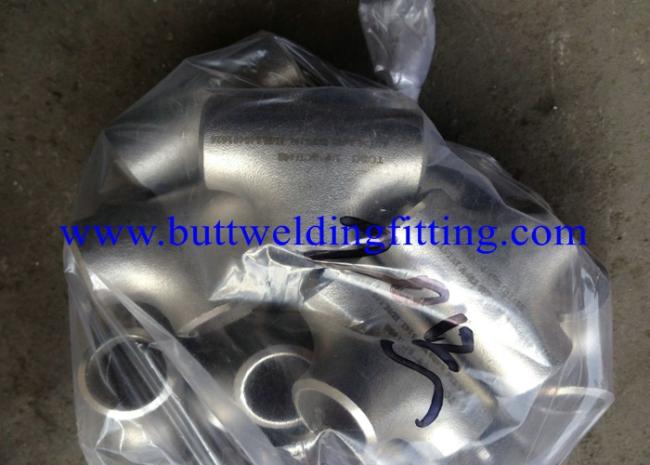

904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch

Price Negotiable

Price: Negotiable

MOQ: 1PCS

Delivery Time: 15days

Brand: TOBO

Product Description

904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch

Chemical Composition %

C	Cr	Cu	Mn	Mo	Ni	P	S	Si
Max			Max			Max	Max	Max
0.02	19.0-23.0	1.0-2.0	2.0	4.0-5.0	23.0-28.0	0.045	0.035	1.0

SPECIFICATIONS

ASTM B677, B366
ASME SB677, SB366

DESCRIPTION
904L is a high-alloy austenitic stainless steel with low carbon content. The grade is intended for use under severe corrosive conditions.

standardized and approved for pressure vessel use in several countries. Structurally, 904

L is fully austenitic and is less sensitive to precipitation ferrite and sigma phases than conventional austenitic grades with high molybdenum content. Characteristically, due to the combination of relatively high contents of chromium, nickel, molybdenum and copper 904L has good resistance to general corrosion, particularly in sulfuric and phosphoric conditions.

TENSILE REQUIREMENTS
KSI 70 KSI 25 KSI can be converted to MPA (Megapascals) by multiplying by 6.895.

Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Wall Thickness (T)				Tees Center To Ends C.M
		Sch.5S	Sch.10S	Sch.40S	Sch.80S
1/2	0.840	0.065	0.083	0.109	0.147	1.00
3/4	1.050	0.065	0.083	0.113	0.154	1.13
1	1.315	0.065	0.109	0.133	0.179	1.50
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25
2	2.375	0.065	0.109	0.154	0.218	2.50
2-1/2	2.875	0.083	0.120	0.203	0.276	3.00
3	3.500	0.083	0.120	0.216	0.300	3.38
4	4.500	0.083	0.120	0.237	0.337	4.13
5	5.563	0.109	0.134	0.258	0.375	4.88
6	6.625	0.109	0.134	0.280	0.432	5.63
8	8.625	0.109	0.148	0.322	0.500	7.00
10	10.750	0.134	0.165	0.375	0.500	8.50
12	12.750	0.156	0.180	0.375	0.500	10.00
14	14.000	0.156	0.250	0.375	0.500	11.00
16	16.000	0.165	0.250	0.375	0.500	12.00
18	18.000	0.165	0.250	0.375	0.500	13.50
20	20.000	0.188	0.250	0.375	0.500	15.00
24	24.000	0.218	0.250	0.375	0.500	17.00
