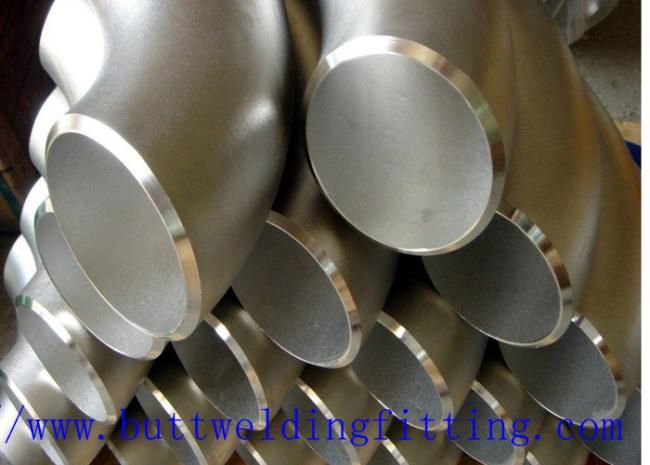

DN100 SCH 40 WPB 310s 316l 904l 2205 304 Stainless Steel Elbow Long / Short Radius
DN100 SCH 40 WPB 310s 316l 904l 2205 304 Stainless Steel Elbow Long / Short Radius
Quick Detail:
| Type of pipe fittings | Short Radius Elbow(90D,45D,180D) |
| Standard Specification | ASTM,JIS,BS,DIN,UNI etc. |
| Material | Stainless steel |
| Connection | Welding |
| Shape | Equal |
| Technics | Forged |
| Qualification | ISO9001, API,CE |
| Application | Petroleum, Chemical, Power, Gas, Metallurgy |
| Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine |
| Thickness | Sch10-Sch160 XXS |
| Size | Seamless 1/2" To 24" Welded 24" To 72" |
| Surface of Finish | Antirust Oil,Hot Galvanized |
Description:
1. Product Item No.: 002fittings-Cosco Steel
2. Product name: 2205 Stainless Steel 90D LR Elbow
3. Material: stainless steel,alloy steel,carbon steel
4. Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800
5. Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
6. Type:
SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
7. Pressure: Sch5--Sch160,XXS
8. Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
9. CE and Certification: ISO9001:2000, API, BV, SGS, LOIYD
10. Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."
11. The third party inspection: BV, SGS, LOIYD, TUV, and other party alloyed by clients.
12. Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings.
13. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
14. Packing: Wooden box or wooden pallet.
15. H.S Code: 73072300
16. Material:
| Material | ASTM | Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
| DIN | Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| GB | 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
Applications:
We,this type pipe fittings be widely used in kinds of industries:
a. Paper Making,Waste-water Treatment
b. Chemical Industry and Natural Gas
c. Shipbuilding
d. Electrical equipment
e. Nuclear Energy
f. Construction
g. Petroleum
Specification
| ND | OD(MM) | Center to end | Approx Weight KG/PCS | ||||||
| DN | INCH | OD | A | O | 5S | 10S | 20S | 40S | 80S |
| 20 | 3/4 | 25 20.7 | - | - | - | - | - | - | - |
| 25 | 1 | 32 33.4 | 25 | 50 | 0.055 | 0.096 | 0.11 | 0.11 | 0.15 |
| 32 | 11/4 | 38 42.2 | 32 | 64 | 0.069 0.075 | 0.102 0.132 | 0.14 0.15 | 0.158 0.17 | 0.20 0.236 |
| 40 | 11/2 | 45 48.3 | 38 | 76 | 0.12 0.13 | 0.18 0.186 | 0.2 0.21 | 0.22 0.24 | 0.3 0.33 |
| 50 | 2 | 57 60.3 | 51 | 102 | 0.17 0.176 | 0.297 0.308 | 0.787 0.396 | 0.42 0.44 | 0.6 0.616 |
| 65 | 21/2 | 73 76.1 | 64 | 128 | 0.35 0.364 | 0.53 0.546 | 0.64 0.655 | 0.89 0.91 | 1.0 1.29 |
| 80 | 3 | 89 | 76 | 152 | 0.486 | 0.729 | 0.972 | 1.36 | 1.94 |
| 90 | 31/2 | 101.6 | 89 | 178 | 0.7 | 1.05 | 1.4 | 1.96 | 2.8 |
| 100 | 4 | 108 114.3 | 102 | 204 | 0.90 0.94 | 1.2 1.4 | 1.7 1.876 | 2.56 2.77 | 4.0 4.13 |
| 125 | 5 | 133 141.3 139.7 | 127 | 254 | 1.8 2.02 | 2.1 2.37 | 3.2 3.49 | 4.0 4.4 | 6.5 6.98 |
| 150 | 6 | 159 168.3 165.2 | 152 | 304 | 2.6 2.9 | 3.1 3.4 | 4.8 5.0 | 6.8 7.1 | 10.3 11.0 |
| 200 | 8 | 219 216.3 | 203 | 406 | 6.25 5.0 | 7.0 6.8 | 11.08 10.7 | 14.1 13.5 | 22 21 |
| 250 | 10 | 273 267.3 | 254 | 508 | 10.08 9.7 | 11.2 10.0 | 17.6 16.0 | 24.6 23.0 | 44.8 40.0 |
| 300 | 12 | 325 323.9 318.5 | 305 | 610 | 14.8 | 16.7 | 23.3 | 37 | 64.5 |
| 350 | 14 | 377 355.6 | 356 | 711 | 19.1 15.6 | 22 19.5 | 38 34 | 48.6 42.6 | 80.0 74.0 |
| 400 | 18 | 426 406.4 | 406 | 812 | 29.0 26.5 | 35 30 | 57.0 49.9 | 67 62 | 149.0 135.0 |
| 500 | 20 | 529 508 | 508 | 1016 | - | - | - | - | - |
| 550 | 22 | 559 | 559 | 1118 | - | - | - | - | - |
