Long / Short Radius Elbow Butt Weld Fittings Thickness Sch10 - Sch160 XXS
Long / Short Radius Elbow Butt Weld Fittings Thickness Sch10 - Sch160 XXS
|
1.Type |
stainless steel 316 welded pipe fittings elbow |
|
2.Size |
1/2"-48" |
|
3.Wall thickness |
Sch5S-Sch160, XS,XXS |
|
4.Standards |
ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc |
|
5.Material |
Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Low Temperature: ASTM A420 WPL 1, WPL 3, WPL 6 |
|
6.Surface treatment |
Sand Rolling, Sand Blasting ,Acid Cleaning. |
|
7.Applications |
Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
|
8.Certificate |
API, CCS,and ISO9001:2000 for 304 316 stainless steel elbow |
We can offer samples in free, but freight charge is by you account.
We can made fittings according to your requires, but you should give us an economic lot size.

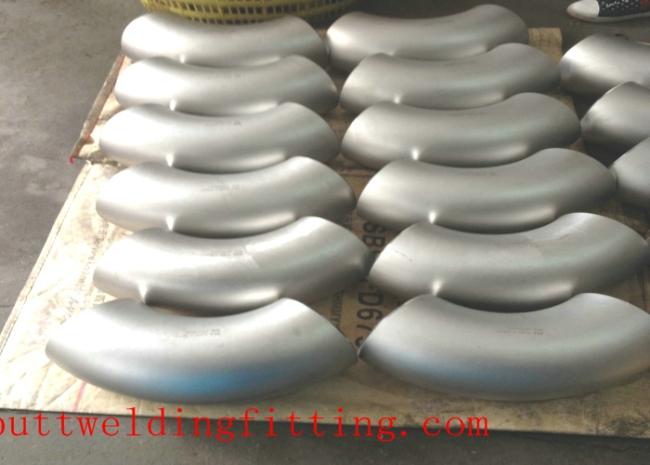

1.Stainless steel elbow
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia

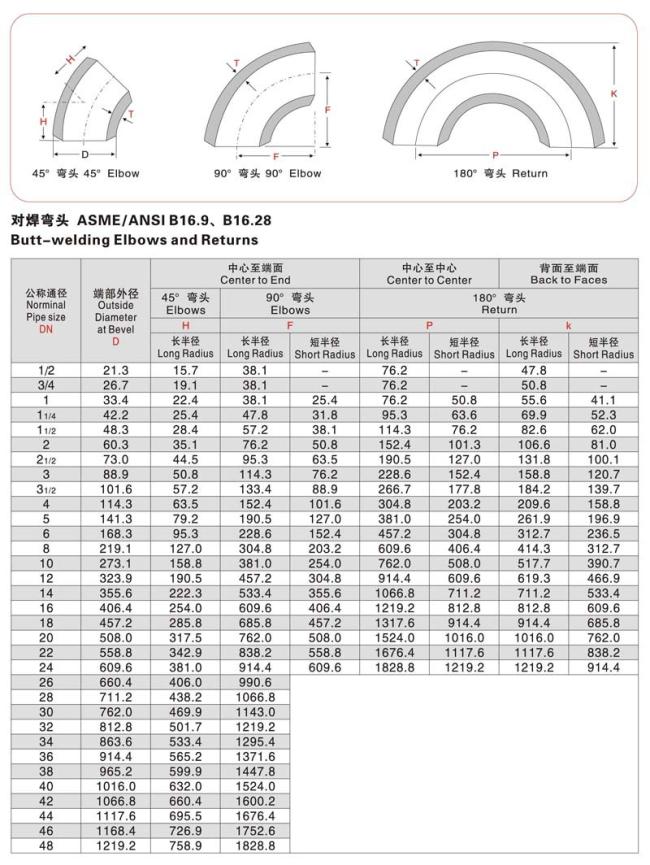

Product Name: 904l stainless steel elbow 45 deg ASME B16.9
Other pipe fitting Include Butt welded stianless steel elbow,Con. reducer,Ecc. Reducer,Tee,Stub end
Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
Manufacture Standard:

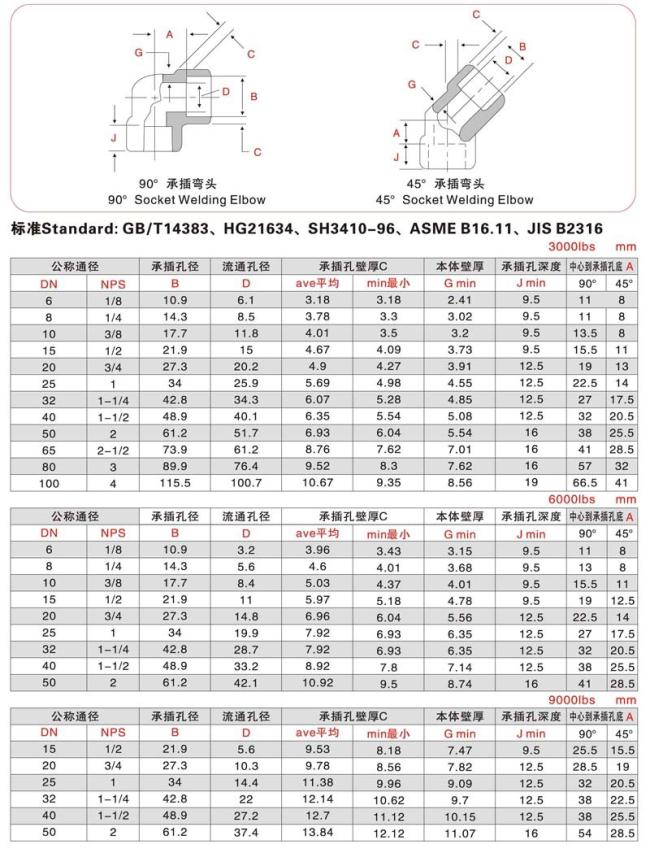

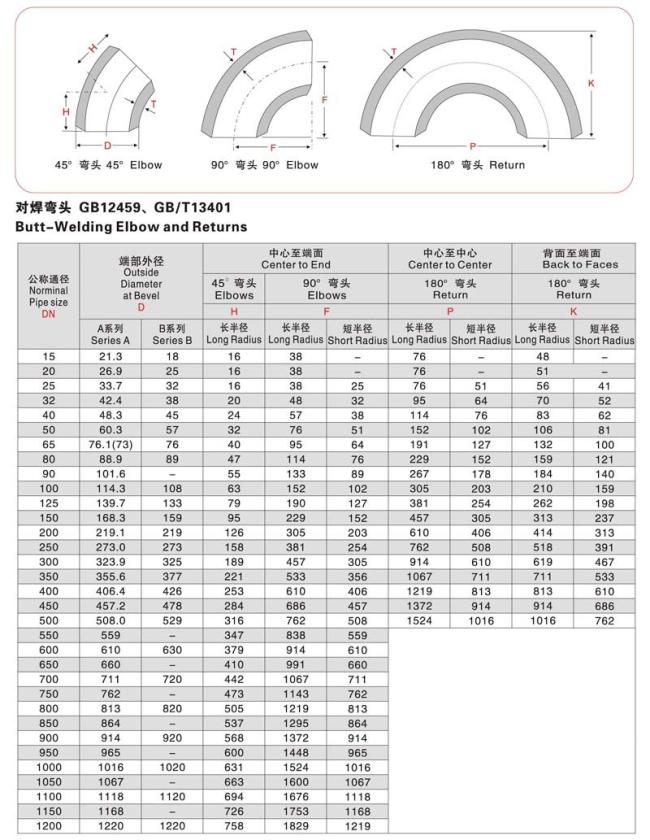

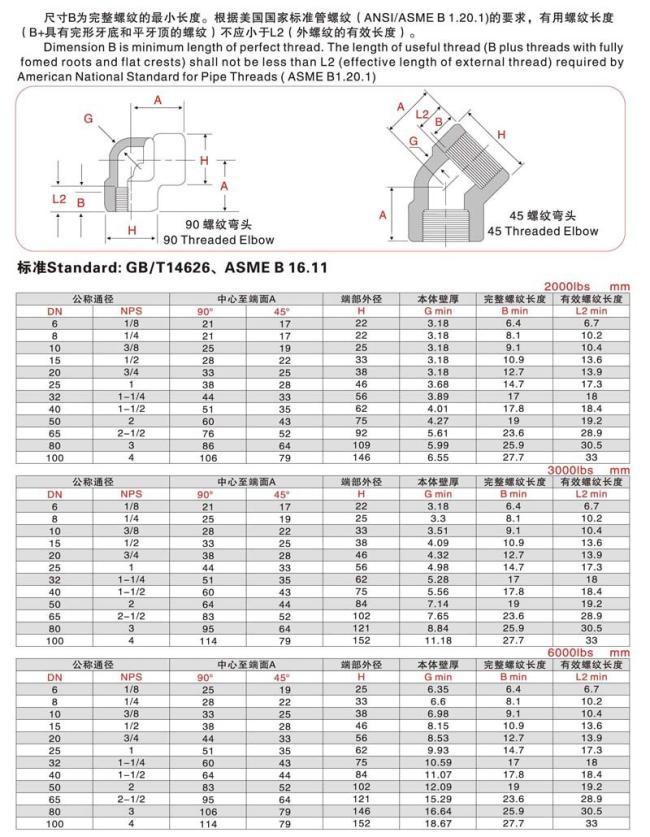

ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,
