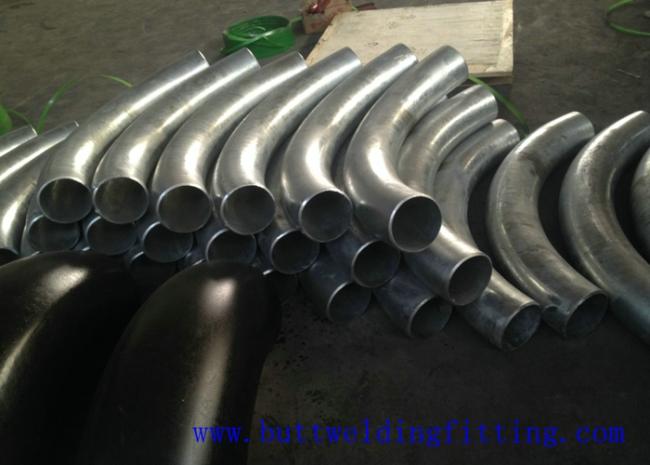

LR SR 90 Degree Stainless Steel Elbow 45 Degree And 180 Degree
LR SR 90 Degree Stainless Steel Elbow 45 Degree And 180 Degree
Description:
1. Product Item No.: 002fittings-Cosco Steel
2. Product name: 2205 Stainless Steel 90D LR Elbow
3. Material: stainless steel,alloy steel,carbon steel
4. Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800
5. Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
6. Type:
SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
7. Pressure: Sch5--Sch160,XXS
8. Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
9. CE and Certification: ISO9001:2000, API, BV, SGS, LOIYD
10. Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."
11. The third party inspection: BV, SGS, LOIYD, TUV, and other party alloyed by clients.
12. Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings.
13. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
14. Packing: Wooden box or wooden pallet.
15. H.S Code: 73072300
16. Material:
|
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, |
||
|
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, |
||
|
DIN |
Carbon steel:St37.0,St35.8,St45.8 |
|
|
Stainless steel:1.4301,1.4306,1.4401,1.4571 |
||
|
Alloy steel:1.7335,1.7380,1.0488(1.0566) |
||
|
JIS |
Carbon steel:PG370,PT410 |
|
|
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 |
||
|
Alloy steel:PA22,PA23,PA24,PA25,PL380 |
||
|
GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, |
| NAME | ELBOW(BW90Deg LR & SR/ BW45Deg LR/ BW180Deg LR & SR |
| SIZE | 1/2"-24" are made of SEAMLESS pipes,26"-80" are made of steel plate. |
| WALL THICKNESS | SCH5S-XXS |
| CONNECTION | Butt Welding |
| MATERIAL | a. Carbon Steel: |
| ASTM A234 WPB | |
| ASTM A420 WP1 WP3 WPL6 | |
| ASTM A860 WPHY42/52/60/65/70 | |
| b. Alloy Steel:: | |
| ASTM A234 WP5/9/11/22/91 | |
| c. Stainless Steel: | |
| ASTM A403 WP304 /304L /316 /316L /321/347 | |
| ASTM A815 UNS31803 S32750 S32760 | |
| STANDARD | ANSI/ASME B16.9,DIN,JIS.BS,GB,etc. |
| SURFACE | Stainless Steel: Polishing, Sand-blasting |
|
Carbon Steel/Alloy Steel : Black Painting,Varnish Paint, Anti Rust Oil, Hot Dip Galvanized, Electric Galvanized,3PE,etc. |
|
| CERTIFICATE |
ISO9001,PED. |
