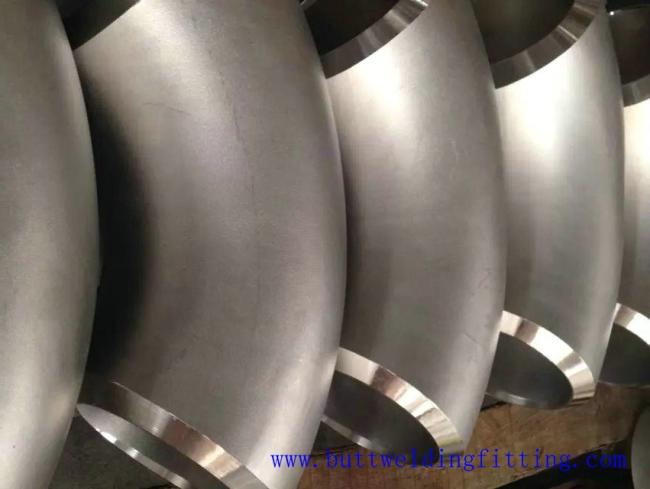

OEM ODM Long Radius 90 Degree Elbow Fitting 304 Or 316 Stainless Steel Pipe Bend
OEM ODM Short Radius 90 Degree Elbow Fitting 304 Or 316 Stainless Steel Pipe Bender
Our products mainly conclude: pipes/tubes , pipe fittings, bars,plates/sheets/coils,valves, cold & hotrolled.
We serve our customers in the field of oil, gas, construction, transportation, agriculture,
electric power and so on.
Hot Bend Description:
| INDUCTION BENDS SPECIFICATION REQUIREMENTS | ||
| GENERAL DESCRIPTION | ||
| Product Name | OEM ODM 90 degree short radius elbow stainless steel 304 or 316 fitting elbow stainless steel bend pipe 90 degree | |
| Outside Diameter | 1/2" to 80" | |
| Thickness | SCH20, SCH30, SCH40, STD, SCH80, SCH100. SCH120, SCH160. XXS | |
| Design Life | 30 Years | |
| Pipeline Design Code | ASME B31.4 / ASME 31.8 / ASME B16.49/ MSS-SP75 | |
| Service Fluid |
Full Well Stream, Offshore Shallow Water Application, Subject to Potential Late Souring and Eventual Bacteria induced Corrosion. |
|
| Third Party Inspection |
Required (Upon agreement with COMPANY. Mechanical tests to be witnessed) |
|
| MOTHER PIPE REQUIREMENTS | ||
| Material | Stainless steel pipe/Carbon steel pipe/Alloy steel pipe | |
| Grade | Stainless steel | AISI 201, 202, 304, 304L, 316, 316L,430 Etc. |
| Carbon Steel | Gr.B/X42/X46/X52/X60/X70 etc.(PSL1 & PSL2) | |
| Alloy Steel | Nickel base alloy | |
| Specification | Stainless steel | ASTM A554/A270/A312/A249/A269 ETC |
| Carbon Steel |
API 5L,A106,A53,ISO 3183Etc. |
|
1. Product Item No.: 002fittings-Cosco Steel
2. Product name: 2205 Stainless Steel 90D LR Elbow
3. Material: stainless steel,alloy steel,carbon steel
4. Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800
5. Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
6. Type:
SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
7. Pressure: Sch5--Sch160,XXS
8. Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
9. CE and Certification: ISO9001:2000, API, BV, SGS, LOIYD
10. Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."
11. The third party inspection: BV, SGS, LOIYD, TUV, and other party alloyed by clients.
12. Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings.
13. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
14. Packing: Wooden box or wooden pallet.
15. H.S Code: 73072300
16. Material:
| Material | ASTM | Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
| DIN | Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| GB | 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
Applications:
We,this type pipe fittings be widely used in kinds of industries:
a. Paper Making,Waste-water Treatment
b. Chemical Industry and Natural Gas
c. Shipbuilding
d. Electrical equipment
e. Nuclear Energy
f. Construction
g. Petroleum
Specification
| ND | OD(MM) | Center to end | Approx Weight KG/PCS | ||||||
| DN | INCH | OD | A | O | 5S | 10S | 20S | 40S | 80S |
| 20 | 3/4 | 25 20.7 | - | - | - | - | - | - | - |
| 25 | 1 | 32 33.4 | 25 | 50 | 0.055 | 0.096 | 0.11 | 0.11 | 0.15 |
| 32 | 11/4 | 38 42.2 | 32 | 64 | 0.069 0.075 | 0.102 0.132 | 0.14 0.15 | 0.158 0.17 | 0.20 0.236 |
| 40 | 11/2 | 45 48.3 | 38 | 76 | 0.12 0.13 | 0.18 0.186 | 0.2 0.21 | 0.22 0.24 | 0.3 0.33 |
| 50 | 2 | 57 60.3 | 51 | 102 | 0.17 0.176 | 0.297 0.308 | 0.787 0.396 | 0.42 0.44 | 0.6 0.616 |
| 65 | 21/2 | 73 76.1 | 64 | 128 | 0.35 0.364 | 0.53 0.546 | 0.64 0.655 | 0.89 0.91 | 1.0 1.29 |
| 80 | 3 | 89 | 76 | 152 | 0.486 | 0.729 | 0.972 | 1.36 | 1.94 |
| 90 | 31/2 | 101.6 | 89 | 178 | 0.7 | 1.05 | 1.4 | 1.96 | 2.8 |
| 100 | 4 | 108 114.3 | 102 | 204 | 0.90 0.94 | 1.2 1.4 | 1.7 1.876 | 2.56 2.77 | 4.0 4.13 |
| 125 | 5 | 133 141.3 139.7 | 127 | 254 | 1.8 2.02 | 2.1 2.37 | 3.2 3.49 | 4.0 4.4 | 6.5 6.98 |
| 150 | 6 | 159 168.3 165.2 | 152 | 304 | 2.6 2.9 | 3.1 3.4 | 4.8 5.0 | 6.8 7.1 | 10.3 11.0 |
| 200 | 8 | 219 216.3 | 203 | 406 | 6.25 5.0 | 7.0 6.8 | 11.08 10.7 | 14.1 13.5 | 22 21 |
| 250 | 10 | 273 267.3 | 254 | 508 | 10.08 9.7 | 11.2 10.0 | 17.6 16.0 | 24.6 23.0 | 44.8 40.0 |
| 300 | 12 | 325 323.9 318.5 | 305 | 610 | 14.8 | 16.7 | 23.3 | 37 | 64.5 |
| 350 | 14 | 377 355.6 | 356 | 711 | 19.1 15.6 | 22 19.5 | 38 34 | 48.6 42.6 | 80.0 74.0 |
| 400 | 18 | 426 406.4 | 406 | 812 | 29.0 26.5 | 35 30 | 57.0 49.9 | 67 62 | 149.0 135.0 |
| 500 | 20 | 529 508 | 508 | 1016 | - | - | - | - | - |
| 550 | 22 | 559 | 559 | 1118 | - | - | - | - | - |
Our advantage
i. Ultrasonic equipment for thickness inspection
ii. Ultrasonic flaw detecting equipment
iii. Universal material testing equipment
Carbon and sulfur analyzer
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
