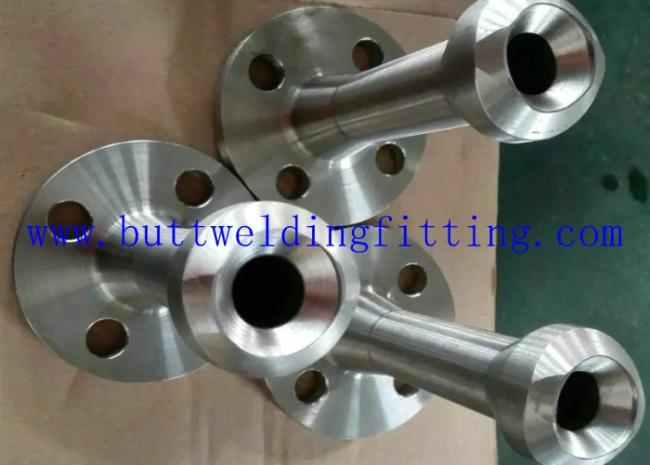

Nipoflange ASME A182 F44 F51 F55 F317L Forged Steel Flanges 150LB To 2500LB

Nipoflange ASME A182 F44 F51 F55 F317L Forged Steel Flanges 150LB To 2500LB

Specifications

1.NipoFlange

Brand: TOBO

Materials: Carbon Steel, Stainless Steel, Alloy Steel

Standard: ASME, JIS(KS), ANSI, API, MSS, AWWA, DIN, BS and etc

Varieties: Threaded Flange, Slip-On Flange (SO), Socket Welding Flange, Lap Joint Flange (LJF), Welding Neck Flange (WNF), Blind Flange, Orifice Flange, Reducing Flange, Pad Type Flange, Loose Hubbed Flange, Welding Plate Flange, Welding Neck Collar, Welding-On Collar, Loose Plate Flange, Companion Flange, Plate (PL) Flange, Spectacle FLG8 (Spacer & Blanks), Square Flange, Long Welding Neck (LWN) and so on.

Technics: Forged

Size: From 1/2 inches to 24 inches(DN1000-DN6000)

III)SIZE: 1/2inches- 80inches (DN15-DN2000)

Types Of Products: WNRF(WNFF), SORF(SOFF), BLRF (BLFF), SWRF(SWFF), PLRF(PLFF), LJRF(LJFF), Spectacle Flg8 (Spacer & Blanks), Square Flange, LWNRF(LWNFF), THRF(THFF)

Facing Method: rust preventing oil, spray paint (black, yellow), hot galvanization, cold galvanization or colored electroplate, powder coating and so on.

Types Of Jointing Faces: raised face; ring joint face; tongue and groove face; male and female face; lapped joint; flat face; threaded

Connection: Welding

Standards:

1) ANSI B16.5, A105 Class 150, Class300, Class600, Class900, Class1500, Class2500, WNRF, SORF, BLRF, THRF, SWRF, LJRF Carbon Steel Flange

2) Din2573 Pn6 Slip-On, Din2576 Pn10 Slip-On, Din2543 Pn16 Slip-On, Din2544 Pn25 Slip-On, Din2545 Pn40 Slip-On, Din 2527 Blind, Din2631-2635 Welding Neck , Rst37.2 Or C22.8

3) JIS Ss400 Or Sf440a 5k 10k 16k 20k 30k SOPFF, SOHFF, BLFF

4) Uni2276 2277 2278 6084 6089 6090 2544 2282 6091-6093 (Rst37.2, S235jrg2, A105 )Carbon Steel Flange

5) En1092 Pn6 Pn10 Pn16 Pn25 Pn40 Pn64 Pn100 Pn160 Type01, Type02, Type05, Type12, Type13 Carbon Steel Flange

6) Bs4504 Sani1123 1000/3, 1600/3, 2500/3, T/D, T/E, T/F Carbon Steel Flange

7) As2129 Table D, Table H, Table E Carbon Steel Flange

8) GOST 12820-80, 12821-80 Table D, E, H Carbon Steel Flange

Non Standard: According to the drawing size from 10mm to 5000mm, weight from 0.5kg to 30tons(300000kg)

Certificate: ISO9001: 2000, TUV PED and AD-2000 certification.

Inspection: Factory In-House Or Third Party

Shape: Equal

Usage: connecting pipe line and keep its leakproofness; convenient for replacing pipe line; easy to separate and check the situation of pipe line; easy to seal pipe line, such as oil, petroleum, gas, chemical industry, nuclear power station, water and nuclear power construction, shipbuilding, food manufacturing, construction, shipbuilding, paper making, medicine, and other industries.

Main Market: United Kingdom, America, Canada, Australia, Egypt, South Africa, Japan, South Korea, Singapore, Germany and other countries in the world.

Packing: Using Veneer Case or Plywood Case Of Outside, Linoleum And Plastic Cloth Of Inside Dampproof, or other methods according to the requirements of our clients

Term Of Payment: T/T, L/C, Western Union, Money Gram

Delivery Time: Within 12-15 Days after receipt the payment in advance

Supply Ability: 5000ton/Month

Place Of Origin: China(Mainland)

OEM: Yes

Seaport: Tianjin, Qingdao, Shanghai, Ningbo, Shenzhen seaport and etc

Weldoflange Short length 90 degree branch connection

Nipoflange Extended length 90 degree branch connection Reinforced Nipoflange Self reinforcing fixed length 90 degree branch connection

Elboflange Centre line branch connection for pipe heads

Latroflange 45 degree angular branch connection

 Material grades include:

• Carbon Steel
• Stainless Steel ASTM A182 F304L / F316L / F321
• Duplex Stainless Steel (to UNS S31803 (ASTM A182 F51)
• Super Duplex Stainless Steel (to UNS 32760 and UNS 32750)
• Alloy Steels (ASTM A182 F5 / F9 / F11 / F22)
• Titanium
• Monel
• Hastelloy
• Cunifer 90/10 (Copper/Nickel 90/10 to BS 2871-CN.102)
• Other material grades to customers' specific requirements

 Sizes and ratings include:

• ½" to 24" NB - ANSI 150 , 300, 600, 900, 1500 & 2500 lb
• 1½" to 12" NB - API 2000, 3000, 5000, 10000, 15000 & 20000 lb
• FLANGE WN ASME B16.5 CL300 RF SCH80S ASTM A18GR.F51
• FLANGE 1-13/16" WN TYPE 6BX CL10000 RTJ 15.88mm W/T ASTM A694 F65
• FLANGE WN ASME B16.5 CL2500 RTJ 30.16mm - ASTM A694 F52
• FLANGE WN ASME B16.5 CL2500 RTJ 19.05mm W/T ASTM A182 GR.F316/316L
• Flanges  ASTM A 182 Gr F5 – ASME   B16.5
• Flanges ASTM A182 Gr F9 – ASME  B16.5
• Flanges ASTM A182 Gr F11 – ASME B16.5
