L / SR Tubing Stainless Steel Elbow Inconel 625 180 Degree Pipe Elbow
L / SR Tubing Stainless Steel Elbow Inconel 625 180 Degree Pipe Elbow
Quick Details
| Material: |
Inconel 625, etc
|
Technics: |
Forged
|
Type: | |
| Place of Origin: |
Shanghai, China (Mainland)
|
Model Number: |
pipe elbow
|
Brand Name: |
TOBO
|
| Connection: |
Welding, Weld
|
Shape: |
Equal
|
Head Code: |
Round
|
Packaging & Delivery
| Packaging Detail: | Plywood case or fumigation woodern case |
| Delivery Detail: | Usually 2-10 days depend on the quantity |
Specifications

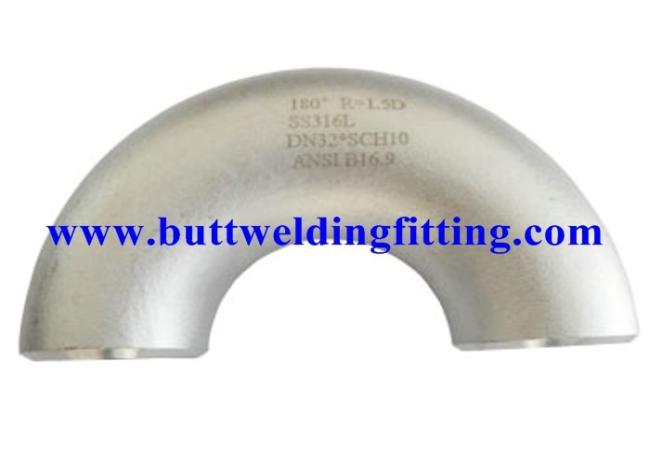

Inconel 625 180 Degree Elbow
1) Size: 1/2"~48" (DN15 - DN1200)
2) THK: SCH5S - SCH160 XXS
3) Material: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,
Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc
180 Degree Elbow is mainly used for connecting two pipes or tubes, allowing a change of direction. We can provide short radius elbows and long radius elbows.
Usually, 180 Degree Elbow is made of duplex stainless steels, stainless steels, alloy steels, and more.
Description Of Inconel 625 180 Degree Elbow
| Type | 180 Degree Elbow |
| Size |
SMLS Elbow: 1/2"~24" (DN15 - DN600) Welded Elbow: 1/2"~48" (DN15 - DN1200) |
| Wall thickness |
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, etc |
| Standards | ASME, ASTM, DIN, JIS, etc |
| Material |
Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc Stainless Steel: ASTM A182 F304/304L/316/316L, etc Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc. Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc Cu-Ni: 90/10,70/30, etc |
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Applications | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
Specifications - Inconel 625 180 Degree Elbow
| Standard | Inconel 625 |
| UNS | N06625 |
| Werkstoff Nr. | 2.4856 |
Chemical Composition Of Inconel 625 180 Degree Elbow
| Weight % | Ni | Cr | Mo | Nb + Ta | Fe | Ti |
| Alloy 625 | 58.0 min | 20 - 23 | 8 -10 | 3.15 -4.15 | 5.0 max | 0.40 max |
| C | Mn | Si | S | P | Al | Co |
| 0.10 max | 0.50 max | 0.50 max | 0.15 max | 0.15 max | 0.40 max | 1.0 max |
Mechanical & Physical Properties – Inconel 625
| Density | 8.4 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 135,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 517 |
| Elongation | 42.5 % |
What are the characteristics of Inconel 180 Degree Elbow?
1, Excellent corrosion resistance in reducing environments
2, Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides
3, High nickel and molybdenum contents providing good corrosion resistance in reducing environments
4, Low carbon content which minimizes grain-boundary carbide precipitation during welding to in heat-affected zones of welded joints
5, Resistance to localized corrosion such as pitting and stress-corrosion cracking
6, One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide
Design Features - UNS N06625 Inconel 625
1, Outstanding corrosion resistance and oxidizing environments.
2, Excellent resistance to pitting and stress-corrosion cracking.
3, Maintains corrosion resistance in welded joints.
Application of Inconel 625 180 Degree Elbow
1. Petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
5. Oil and Gas Pipeline industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce pipe fittings with special specifications according to customers’ requirements;
Inconel 625 180 Degree Elbows Packing & Shipping
1) Packing Method:
Normal packing: plastic film or bubble paper wrapped on product's surface ,protect ends with caps , pack with wooden case or load on fumifation plywood pallet .
Custom made as customers request .
2) Shipping Way:
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
