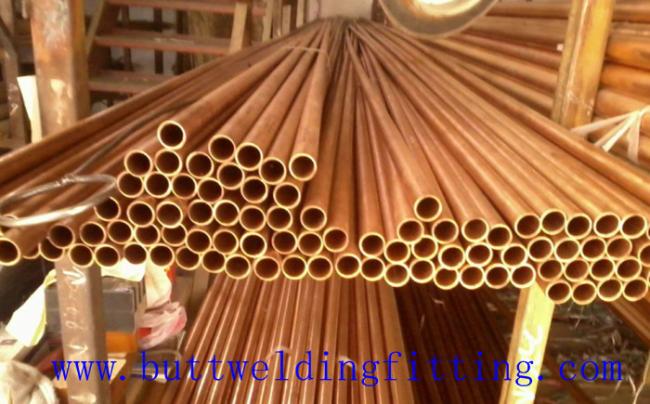

Seamless Copper Nickel Tube C70600 Cu - Ni Weldolet C70600(90:10) C71500 (70:30) C71640
Copper Nickel Tube C70600, Cu-Ni Weldolet C70600(90:10), C71500 (70:30), C71640
1) Grade : C71500 C70600
2) Diameter :10mm-55mm
3) Wall thickness : 0.5mm-3mm
4) Length : 1000mm-8000mm
5)Temper: soft ,Hard
Nickel -Copper Tube :
We produce the tubes at different diameters, wall thicknesses and lengths according to your specific requirements.
Specification of Nickel-Copper Tube:
1) Grade:C71500 C70600
2) Diameter: 10mm-55mm
3) Wall thickness: 0.5mm-3mm
4) Length: 1000mm-8000mm
5) Temper:Soft, Half Hard ,Hard
More detailed imformation as the following table:
| Grade | Temper | Section Size (mm) | Length | |
| Outer Diameter | Wall Thickness | |||
|
CuNi30Mn1Fe |
Soft | Φ12 ~ 55 | 0.75-3.0 | 1000 ~ 8000 |
| Half Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 | |
| Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 | |
|
CuNi10Fe1Mn |
Soft | Φ12 ~ 55 | 0.5-3.0 | 1000 ~ 8000 |
| Half Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 | |
| Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 | |
1.1.2 Specifications
1) Superior quality copper nickel pipes
2) Offer a wide range of copper Tubes,pipes
4) Grade:C70600 (90/10) & C71500 (70/30)
Description Of The Products :
- Brief Information :
- Civen RA Copper Foil is rolled from pure copper ingots, the process including purifying copper ores, make into copper cathodes, ingoting, rolling, annealing, washing, testing, slitting and packing. Our copper ores are imported from South America, which were famous for their copper mining.
- 110-anneal (Electrolytic Tough Pitch or ETP) dead soft. Min 99.96% CU
- This is high quality copper and has a wide range of applications based on conductivity, corrosion resistance, workability, and beauty.
- Advantage :
- Rolled Copper Foil has extraordinary strength, bendability, ductility and lustrous surface, plus its excellent mechanical capacity, makes it irreplaceable as a raw material. Especially when used for transformer, Copper Flexible Connector, CCL, FCCL, PCB, Geothermal Film, Construction, Decoration etc.
- The copper foil made by Civen can be customized for different temper, which including soft , quarter hard,half hard , hard temper, even special soft and special hard temper.
- Key Features:
- Cuts with scissors or paper cutter .
- Thick enough, so when glued to a backing-board, wood grain does not show through .
- Often used for punching, scrapbooking and other paper crafts.
- Has a wide range of applications based on workabilty and beauty.
- Cuts with household scissors, extremely pliable .
- Excelleent for tooling and will dent easily with a light touch but will not hold its sha[e umder pressure
- Dead soft, very pliable
- Creat designs by emboss drawing . denting , piercing ,rub-transferring , tracing , origami , and hammering (Repousse )
- Has a wide range of applications based on workability and beauty.
- Can be hammered, texturized or punched.
- Used for many outside or inside projects.
- There are many applications based on workability and beauty.
Table 1 : Mechanical Properties
| Temper | JIS Temper | Tensile Strength Rm/N/mm 2 | Elongation A50/% | Hardness HV |
| M | O | 310~410 | ≥ 30 | 40~60 |
| Y2 | 1/2H | 320~450 | ≥ 20 | 55~85 |
| Y | H | 440~480 | - | 80~150 |
| T | EH | 450~540 | - | - |
Table 2 : Alloy Number
| Name | GB | ALLOY NO. | SIZE (mm) | ||||
| (ISO) | (ASMT) | (JIS) | (BIS) | (DIN) | |||
| Copper Foil | T2 | Cu-ETP | C11000 | C1100 | C101 | R-Cu57 | Thickness: 0.006-0.1 /Max Width: 650 |
Table 3 : Size & Tolerance
| Thickness | Thickness Tolerances | Width | Width Tolerances |
| 0.006~0.04 | ± 0.001 | 1.0~650 | ± 0.1 |
| > 0.04~0.10 | ± 0.002 |
Table 4 : Specifications
| Thickness | Width | Temper |
| 0.006~0.04 | 1.0～650 | O,1/2H,H,EH |
| > 0.04~0.10 | 1.0～650 |
O,1/2H,H,EH |
