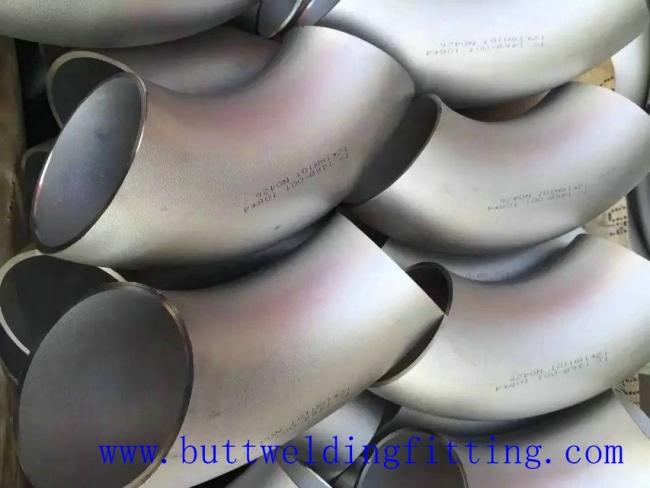

1-48 inch Stainless Steel Elbow 904L / A403 WP304 LR / SR R5 Bend
Stainless Steel Elbow 904L / A403 WP304 Stainless steel elbow LR / SR R5 Bend.
1.Stainless steel elbow
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia
product: stainless steel ansi b 16.9 a403 wp 904l elbow -BG BEST
Products : Elbow bend equal ,/reduce tee,concentric/eccentric reducer , cap,flange
Size: Seamless(SMLS) Elbows : 1/2"-24" ,DN15-DN600
Butt Welded Elbows (seam) :24”-96",DN600-DN1800
Type: LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
Thickness: SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard: ASME,ANSI B16.9;
| Material | ASTM |
Carbon steel:ASTM A234WPB,,A234WPC,A420WPL6,A420WPL3 |
| Stainless steel:ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect. | ||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,A420WPL6, | ||
| DIN | Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, |
|
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized | |
| Packing | In wooded cases or pallets, or as for clients' requirements | |
| Applications | Petroleum, chemical, machinery, boiler,electric power, shipbuilding, papermaking, construction, etc | |
| Certification | API CE and ISO 9001:2008 | |
| Third part inspect | BV,SGS,etc accept | |
| Delivery time | 7 after receipt of advanced payment ,have stock ~ | |
| special design | as your drawing | |
| test | Direct-reading Spectrograph,Hydrostatic testing machine, X-ray detector,Ultrasonic flaw detector,Magnetic particle detector,etc |
|
| equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc | |
Description:
1. Product Item No.: 001fittings-Cosco Steel
2. Product name: 2205 Stainless Steel 90D LR Elbow
3. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
4. Packing: Wooden box or wooden pallet.
5. H.S Code: 73072300
6. Material: Stainless Steel: 304(CF8,1.4301),316 (CF8M,1.4408),2205 etc Alloy Steel: 12Cr1Mov, 10CrMo910, 15CrMo, A335, P22 etc.
7. Standard:
China Standard GB12459-90 etc
U.S.A Standard ASTM A403,ANSI B16.9,ANSI B16.28,ANSI B16.11 etc
Germany Standard KIN2605, DIN2606, DIN2615 etc
Japanese Standard JIS B2311, JIS B2312, JIS B2313 etc.
Applications:
We,this type pipe fittings be widely used in kinds of industries:
a. Paper Making,Waste-water Treatment
b. Chemical Industry and Natural Gas
c. Shipbuilding
d. Electrical equipment
e. Nuclear Energy
f. Construction
g. Petroleum
Specification
| Nominal Pipe Size (NPS) | Outside Diameter | Center-to-Center,O | Back-to-Face,K | |
| mm | Inch | |||
| 1/2 | 21.3 | 0.84 | 76 | 48 |
| 3/4 | 26.7 | 1.05 | 76 | 51 |
| 1 | 33.4 | 1.32 | 76 | 56 |
| 11/4 | 42.2 | 1.66 | 95 | 70 |
| 11/2 | 48.3 | 1.90 | 114 | 83 |
| 2 | 60.3 | 2.38 | 152 | 106 |
| 21/2 | 73.0 | 2.88 | 190 | 132 |
| 3 | 88.9 | 3.50 | 229 | 159 |
| 31/2 | 101.6 | 4.00 | 267 | 184 |
| 4 | 114.3 | 4.50 | 305 | 210 |
| 5 | 141.3 | 5.56 | 381 | 262 |
| 6 | 168.3 | 6.62 | 457 | 313 |
| 8 | 219.1 | 8.62 | 610 | 414 |
| 10 | 273.0 | 10.75 | 762 | 518 |
| 12 | 232.8 | 12.75 | 914 | 619 |
| 14 | 355.6 | 14.00 | 1067 | 711 |
| 16 | 406.4 | 16.00 | 1219 | 813 |
| 18 | 457.0 | 18.00 | 1372 | 914 |
| 20 | 508.0 | 20.00 | 1524 | 1016 |
| 22 | 555.9 | 22.00 | 1676 | 1118 |
| 24 | 610.0 | 24.00 | 1829 | 1219 |
Our advantage
i. Ultrasonic equipment for thickness inspection
ii. Ultrasonic flaw detecting equipment
iii. Universal material testing equipment
iv. Carbon and sulfur analyzer
