ASTM A105 ANSI WN RTJ Forged Steel Flanges 3.1 Certificate ASME B16.5
Price:
US $ 10 - 100 / Kilogram
MOQ:
1pc
Delivery Time:
30 days After Receiving the 30% Prepayment by T/T or LC
Brand:
TOBO
Product Description

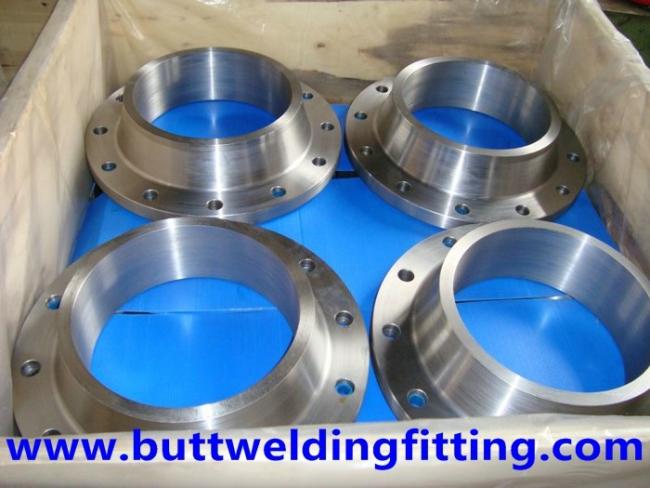

Carbon Steel ASTM A105 ANSI WN RTJ Flange 3.1 Certificate ASME B16.5
Quick Details
| Size: |
DN15-DN2000
|
Material: |
Carbon Steel
|
Standard: |
ANSI
|
| Place of Origin: |
Shandong, China (Mainland)
|
Model Number: |
Forged Flange
|
Brand Name: |
TOBO
|
| Standard or Nonstandard: |
Standard
|
Type: |
carbon steel flange ansi welding neck
|
technical: |
forged
|
| material: |
a105,c22.8,rst37-2,p245gh,ss400
|
standard: |
DIN,UNI,ASME,ANSI,AWWA,JIS,GOST,BS4504,SABS1123,EN1092-1
|
size: |
3/4"-48",dn10-dn2000,10a-2000a
|
| pressure: |
pn6,10,16,25,40,63,100,cl150,300,600,900,1200,2500,5k,10k,16k,20k
|
dimension: |
plate,blind,welding neck,slip on,threaded,socket weld,lap joint
|
face: |
raised face ,flat face,rtj,groove
|
| surface: |
rust proof,black/yellow paint,galvanized
|
packing: |
Plywoodwooden pallets or cases
|
Packaging & Delivery
| Packaging Details: | Plywoodwooden pallets or cases |
| Delivery Detail: | 30 days after advance |
carbon steel a105 ansi wn flange 3.1 specification
Product Description
1.The specification sheet
| STANDARDS | SIZE | PRESSURE | TYPE | |
| ANSI B16.5 | 1/2"-24" | class150,300 | slip-on,welding neck,socket welding, | |
| ASME B16.5 | class400,600,900 | threaded,lap joint,blind,RTJ(ring joint) | ||
| ASA B16.5 | class1500,2500 | FF(flat face),RF(raised face) | ||
| ANSI B16.47 A | 12"-60" | class150,300 | slip-on,welding neck ,RTJ(ring joint) | |
| class400,600,900 | FF(flat face),RF(raised face) | |||
| ANSI B16.47 B | 26"-60" | class75,150,300 | slip-on,welding neck ,RTJ(ring joint) | |
| FF(flat face),RF(raised face) | ||||
| ANSI B16.36 | 1"-24" | class300,400,600 | welding neck,slip-on,RTJ,threaded | |
| class900,1500,2500 | FF(flat face),RF(raised face) | |||
| AWWA C207 flanges | 4"-144" | class150 |
|
|
| class300 | Table 3 AWWA hub flanges classD | |||
| class400 | Table 4 AWWA hub flanges classE | |||
| class600 | Table 5 AWWA ring flanges classE | |||
| class900 | Table 6 AWWA ring flanges classF | |||
| class1500 | Table 6 AWWA ring flanges classF | |||
| class2500 | Table 7 AWWA blind flanges thickness | |||
| DIN flanges | DN10-DN4000 | PN6,PN10 | DIN2502,2503,2527,2565,2566,2573 | |
| PN16,PN25 | 2576,2627,2628,2629,2630,2631 | |||
| PN40,PN64 | 2638,2641,2642,2656,86029,86030 | |||
| PN100,PN160 | 2632,2633,2634,2635,2636,2637 | |||
| JIS B 2220 | 10A-1500A | 1K,2K,5K,10K,16K | SOPFF,SOPRF,SOH,BL | |
| 20K,30K,40K,63K | A-TYPE,B-TYPE,C-TYPE | |||
| 6BAR,10BAR,16BAR | welding neck | |||
| 25BAR,40BAR | slip-on | |||
| EN1092-1 | DN10-DN1800 | PN6,PN10,PN16 | TYPE01,02,05,11,12,13 | |
| 21,32,32,36,37 | ||||
| UNI flanges | DN10-DN2000 | PN6,PN10,PN16 | DIN2642,2282,6093,2254,2527,6092 | |
| PN25,PN40,PN64 | 6089,2277,2278,2284,2253,6082 | |||
| PN100,PN160 | 2276,6083,6084 | |||
| GOST flanges | DN15-DN1200 | PN6,PN10,PN16 | gost12821-80 | |
| PN25,PN40,PN63 | gost12820-80 | |||
| SABS1123 | 15mm-800mm | plate | ||
| BS4504,BS10 | DN10-DN800 | PN6,PN10 | slip-on,welding neck,socket welding | |
| PN16,PN25 | plate,threaded,lap joint,blind | |||
| PN40,PN63 | FF(flat face),RF(raised face) | |||
| ISO7005-1 | DN10-DN800 | PN6,PN10 | slip-on,welding neck,socket welding | |
| PN16,PN25 | plate,threaded,lap joint,blind | |||
| PN40,PN63 | FF(flat face),RF(raised face) | |||
| Surface Treatment | Rust-proof oil,Black,Yellow,Electro Galvanizing,Hot Dip Galvanizing | |||
| Packing | Wooden Pallets or Wooden Cases or As Customers' Requirements | |||
| Payment Terms | L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L | |||
| Delivery Time | 30 Days after the Advance or the L/C | |||
| Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry and general pipes connecting projects etc. | |||
| After-Sales Service | Orders and Products Tracking System |
|||
