ASTM B337 ASTM B338 GR.3 12" Std Titanium Alloy Tubes 6m length 0.5 - 50 mm Thickness
Price:
negotiable
MOQ:
100KGS
Delivery Time:
10days->
Brand:
TOBO/TPCO/TISCO/VALIN/METAL
Product Description
ASTM B337,ASTM B338 GR.3 Titanium Alloy Tubes Thickness: 0.5 - 50 mm
Quick Details
| Available Sizes | ||||||
| Products | OD | WT | Length | |||
| Inch | MM | Inch | MM | Ft max. | M max. | |
| Tube | 1/2"-3" | 12.0-76.2 | 0.02"-0.5" | 0.5-12.0 | 105' | 32.00 |
| Pipe | NPS1/2"-6" | 21.34-168.3 | Sch10-Sch80 | 2.11-12.7 | 98' | 30.00 |
| Super Length Tube/Pipe is our advantages. | ||||||
- Standard: API, ASTM, API 5L, ANSI A213-2001
- Thickness: 0.5 - 50 mm
- Section Shape: Round
- Outer Diameter: 6 - 200 mm
- Place of Origin: China
- Secondary Or Not: Non-secondary
- Application: Condensers and Heat Exchangers
- Technique: Cold Drawn
- Certification: API
- Surface Treatment: Bright
- Alloy Or Not: Non-alloy
- Type1: ASTM B338 GR.1 tubes
- Type2: ASTM B338 GR.2 tubes
- Type3: ASTM B338 GR.5 tubes
- Type4: ASTM B338 GR.7 tubes
- Type5: ASTM B338 GR.9 tubes
- Type6: ASTM B338 GR.12 tubes
- Type7: ASTM B338 GR.23 tubes
- Type8: ASTM B338 GR.1 Titanium tubes
- Type9: ASTM B338 GR.2 Titanium tubes
- Type10: ASTM B338 GR.2 Titanium tubes for condensers and heat exchangers
ASTM B338 GR.3 Titanium alloy tubes
1. Titanium Pipe, Titanium Tube
| Item name | Titanium Pipe |
| Standard | ASTM B337,ASTM B338,ASTM B861,ASTM B862 |
| Material | Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,G9,Gr12,Gr23 |
| Length | can be customized |
| Application | Chemical processing,Oil and chemicals,medical industry etc |
| Packaging | Plywood case lined with foam or as per clients requirements |
| Payment | T/T in advance or Irrevocable L/C at sight |
| MOQ | 20Kg |
| Leadtime | Within 15~20 days based on MOQ after deposit |
| Payment terms | Payment terms: T/T or Irrevocable L/C at sight |

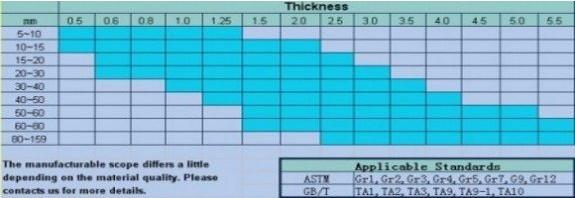

2. Manudacturable Scope
3. Chemical requirements
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | bal |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
4. Tensile requirements
| Grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| Grade1 | 35 | 240 | 20 | 138 | 24 |
| Grade 2 | 50 | 345 | 40 | 275 | 20 |
| Grade 3 | 65 | 450 | 55 | 380 | 18 |
| Grade 5 | 130 | 895 | 120 | 828 | 10 |
| Grade 7 | 50 | 345 | 40 | 275 | 20 |
| Grade 9 | 90 | 620 | 70 | 438 | 15 |
| Grade 12 | 70 | 438 | 50 | 345 |
18 |
