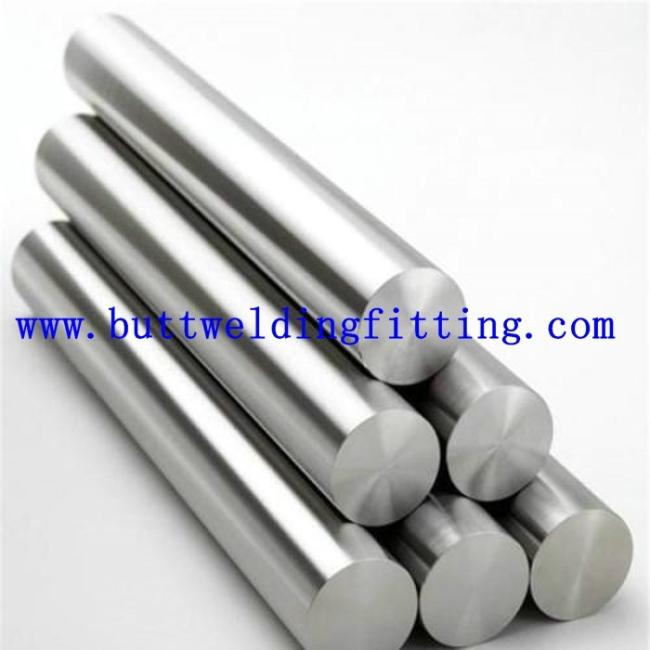

Polished 301 302 Bright Steel Rod 0.5mm For Kitchen / Sanitation Tools
Kitchen Use Stainless Steel Wire Rod 0.5mm 301 302 304 316 316L 410 430
Quick Details
| Standard: |
AISI, ASTM, DIN, EN, GB, JIS
|
Grade: |
300 Series
|
Wire Gauge: |
0.05-20mm
|
| Length: |
according to customers' requirements, in coil
|
Application: |
spring, screw, rope, steel brush, pin, mesh
|
Certification: |
ISO
|
| C Content (%): |
standard level
|
Si Content (%): |
standard level
|
Place of Origin: |
Shanghai, China (Mainland)
|
| Brand Name: | TOBO | Model Number: |
200 300 400 Series
|
Certificate: |
ISO BV SGS
|
| T/S: |
High
|
Type: |
spring,tiny,tig,mig,welding
|
Surface: |
black or bright
|
| MOQ: |
1MT
|
tolerance: |
standard level
|
Y/S: |
High
|
| Main market: |
Southeast Asia, Africa,Oceania,Mid-east
|
Craft: |
cold drawn or annealed
|
Packaging & Delivery
| Packaging Details: | seaworthy package or according to customer's request |
| Delivery Detail: | 15-30 days after received your deposite or LC. |
1.Specifications
| 1.Diameter: | 0.03-20mm |
| 2.Standard: | ASTM, EN,DIN,JIS |
| 3. Grade: |
201,202,301,303,304,304L,305,316,316L,321,410,416,420,430 1.4301, 1.4306, 1.4845, 1.4401, 1.4371, 1.4597,1.4541, etc |
| 4. Diameter tolerance: | H9, H11, H13, K9, K11, K13...etc, as per clients’ requirement |
| 5. Surface: | bright, cloudy,plain,black |
| 6.Application: |
With bright surface, slight magnetism and no cracks on forming, is widely used in bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.
|
| 7. Delivery time: |
* Black bar: be ready for shipment within 15 days upon receipt the PO * Bright bar: be ready for shipment within 25 days upon receipt the PO |
| 8. Package: | in coil or in spool then in carton or as your request |
| 9. Cert.: | ISO,BV,SGS |
| Type AISI | C Max % | Mn Max % | P Max% | S Max% | Si Max% | Cr% | Ni% | Mo% |
| 201 | 0.15 | 5.50-7.50 | 0.06 | 0.03 | 1 | 16.000-18.00 | 0.5 | - |
| 202 | 0.15 | 7.50-10.00 | 0.06 | 0.03 | 1 | 17.00-19.00 | 3.-0-5.00 | - |
| 204CU | 0.08 | 6.5-8.5 | 0.06 | 0.03 | 2 | 16.0-17.0 | 1.5-3.0 | - |
| 302 | 0.15 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 8.00-10.00 | - |
| 302HQ/ | 0.03 | 2 | 0.045 | 0.02 | 1 | 17.00-19.00 | 9.00-10.00 | - |
| 304CU | ||||||||
| 304HC | 0.04 | 0.80-1.70 | 0.04 | 0.015 | 0.3-0.6 | 18-19 | 8.5-9.5 | - |
| 303 | 0.07 | 2 | 0.045 | 0.25 Min | 1 | 17-19 | 8.0-10.0 | 0.6 |
| 304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.0-10.50 | - |
| 304L | 0.03 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.00-12.00 | - |
| 310 S | 0.055 | 1.5 | 0.04 | 0.005 | 0.7 | 25.0-28.0 | 19-22 | - |
| 314 | 0.25 | 2 | 0.045 | 0.03 | 1.50-3.00 | 23.00-26.00 | 19.00-22.00 | - |
| 316 | 0.06 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | 0.03 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316Ti | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 9.00-13.00 | - |
| 321 | 0.06 | 2 | 0.045 | 0.01 | .40-.60 | 17-19.00 | 9.4-9.6 | - |
| ER308 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17-19 | 9.5-13.0 | - |
| ER308L | 0.025 | 1.50/2.00 | 0.025 | 0.02 | 0.5 | 19.0/21.0 | 9.5/11.0 | - |
| ER309 | 0.08 | 1.50/2.50 | 0.02 | 0.015 | 0.5 | 23.0/25.0 | 20.0/14.0 | - |
| ER309L | 0.025 | 1.50/2.50 | 0.02 | 0.015 | 0.5 | 23.0/25.0 | 12.0/14.0 | - |
| ER316L | 0.02 | 1.50/2.00 | 0.02 | 0.02 | 0.5 | 18.0/20.0 | 12.00-14.00 | 2.00-3.00 |
| 430L | 0.03 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | - | |
| 434 | 0.08 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | - | 0.90-1.40 |
Corrosion Resistance:
Incoloy 800, like many austenitic stainless steels, can be sensitized, or made susceptible to intergranular attack in some aggressive media, by exposure to the temperature range of 1000 to 1400F.
Applications:
For services below 600 degree centigrade the use of soft annealed incoloy 800 is suggested. Incoloy 800 has
applications in furnae components and equipment, petrochemical furnace cracker tubes, pigtails,headers and
sheathing for electrical heating elements.
Packaging is one of the best service of Ronsco, in order to prevent the damage from transit, our finished products are packaged carefully. All of our stainless steel sheet products will be transported with steel pallets or wooden pallets.
Customers will be guaranteed that the product they received from TOBO can go directly into the production and out to the customers as finished product.
