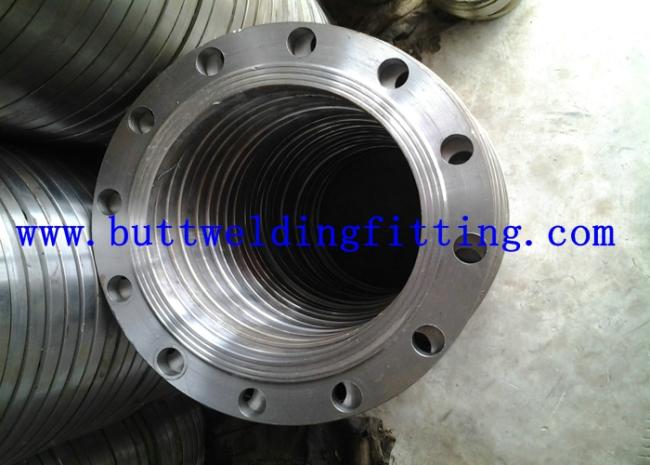

ASTM A182 F304 Forged Steel Flanges White And Silver Color With Special Design
Price:
negotiable
MOQ:
100KGS
Delivery Time:
15days->
Brand:
TOBO
Product Description
ASTM A182 F304, Flange WN SO SW BL ASME B16.5 Size:1/2"-24" Class:150-1500#
| Brand Name: | TOBO |
| Model Number: | A182 F304 |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Place of Origin: | China |
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 3,0000pcs per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
Specifications
ASTM A182 F304 FLANGES
1) TUV certified & ISO 9001: 2000
2) DIN, ANSI, JIS,BS etc.
3) Flange (various materials)
4) Special design available
5) Pressure ratings: class150 300 400 600 900 1500 and 2500, PN6 10 16 25 40 64 and 160,
6) Sample: sample for free, but you should pay for the express fee for the samples.
| Material | F304, 304L, F316, F316L, F321, 316Ti, 317L, 347, F5, F9, F11, F22, LF2, A105, 1.4541, 1.4571, 1.4404, 1.4307 and P250GH. |
| Size | from 1/2"-84" |
| Standard | ANSI, DIN, JIS, BS, SH, BS4504, EN1092-1, BS3293 and other standards. |
| type | WN,SO,BL,SW,LJ,TH, |
| packing | plywood case, pallet or according to customers’ requirements |
| certificate | TUV&ABS, ISO9001:2000, Pressure Equipment Directive PED 97/23/EC, and BV and AD2000-Merkblatt WO |
| Sealing surface | FF ,RF, LJ, FM ,R.T.J and so on |
| ASTM A182 /ASME SA182 | Standard Specification for Forged or Rolled Alloy-Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service | ||||
| Low alloy Steels | F1 | F2 | F5, F5a | F5 | F91 |
| F92 | F911 | F11, 1,2,3 | F12, 1,2 | F36 | |
| F21, F3V, F3VCb | F22, 1/3/V | F23 | F24 | FR | |
| F122 | F10 | F9 | |||
| Martensitic and Ferritic Stainless steel | F6a | F6b | F6NM | F XM-27Cb | F429 |
| F430 | |||||
| Austenitic Stainless steel | F304 | F304H | F304L | F304N | F304LN |
| F309H | F310 | F310H | F310MoLN | F316 | |
| F316H | F316L | F316N | F316LN | F316Ti | |
| F317 | S31727 | S32503 | F321 | F321H | |
| F347 | F347H | F347LN | F348 | F348H | |
| FXM-11 | FXM-19 | F20 | F44 | F45 | |
| F46 | F47 | F48 | F49 | F56 | |
| F58 | F62 | F63 | F64 | F904L | |
| Ferritic-Austenitic Stainless steel | F 50 | F 51 | F 52 | F 53 | F 54 |
| F 55 | F 56 | F 57 | F 58 | F 59 | |
| F60 | F61 | F65 | F65 | F67 | |
| Product Form | |||||
| ASME B16.5 | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| ASME B16.47 | Size:26"-48" Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| ASME B16.48 | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| MSS SP-44 | Size:12"-60" Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
