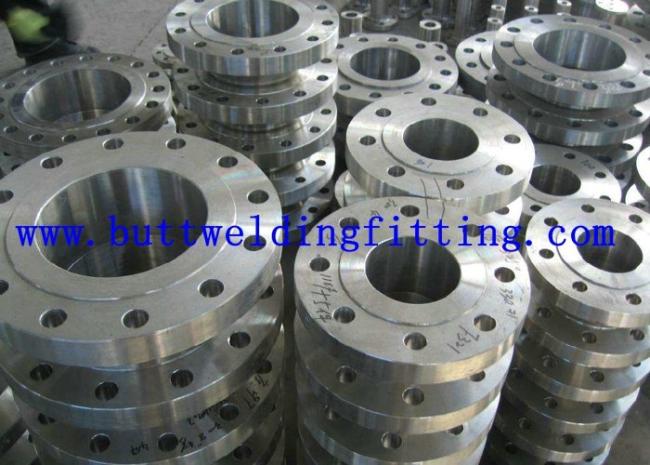

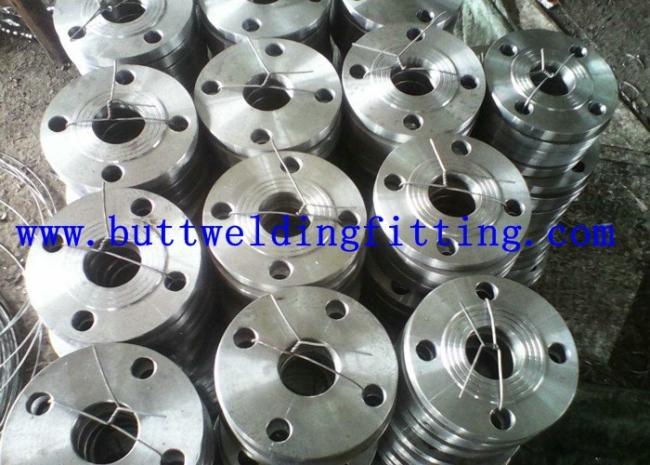

Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection
Price:
US $ 10 - 100 / Kilogram
MOQ:
1pc
Delivery Time:
30 days After Receiving the 30% Prepayment by T/T or LC
Brand:
TOBO
Product Description
DIN 2633 PN16 WELDING NECK FLANGE WNRF Class 150 / Class300 / Class900
Specifications
Size:
Schedule DN or as you required
Material:
Stainless Steel
Standard:
ASTM, ASME, DIN, EN, BS,ISO, JIS,GB etc
Place of Origin:
Shanghai, China (Mainland)
Model Number:
Forged Flange
Standard or Nonstandard:
Standard
Product name:
DIN 2633 PN16 WELDING NECK FLANGE WNRF Class 150 / Class300 / Class900
Type:
Forged Flange
Surface treatment:
Pickled,2B,No.4,BA, Hairline, Mirror
Technique:
ERW
Application:
Application: motor,construction, oil, medicine, food...
Trade term:
FOB,CIF,CFR,EXW
Size range:
OD 9.5 to 219mm WT 0.25mm to 3mm
MOQ:
500kg
Sample:
Yes,free for frequenter customers
Packaging & Delivery
Packaging Details:
1. Wooden Pallet
2. Anti-wet woven bag
3. as required
Delivery Detail:
7-10 days,according to the final quantity
| Flange Dimensions & Approximate Masses |
|
Germany standard flange DIN 2633 welding neck flanges; nominal pressure 16
|
||||||||||||||||
|
Vorschweißflansche DIN 2633 Nenndruck 16
|
||||||||||||||||
|
Brides à souder à collerette DIN 2633: pression nominale 16
|
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | - | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | - | 32 | ||||||||||||||
| 20 | - | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | - | 40 | ||||||||||||||
| 25 | - | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | - | 45 | ||||||||||||||
| 32 | - | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | - | 56 | ||||||||||||||
| 40 | - | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | - | 64 | ||||||||||||||
| 50 | - | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | - | 75 | ||||||||||||||
| 65 | 76,1 | - | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | - | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | - | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | - | 131 | ||||||||||||||
| 125 | - | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | - | 156 | ||||||||||||||
| 150 | - | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | - | 184 | ||||||||||||||
| (175) | 193,7 | - | 315 | 24 | 270 | 60 | 210 | 5,4 | 10 | 12 | 242 | 3 | 8 | M 20 | 22 | 9,85 |
| 200 | 219,1 | - | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 12 | M 20 | 22 | 11 |
| 250 | - | 267 | 405 | 26 | 355 | 70 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 24 | 26 | 15,6 |
| 273 | - | 292 | ||||||||||||||
| 300 | 323,9 | - | 460 | 28 | 410 | 78 | 344 | 7,1 | 12 | 16 | 378 | 4 | 12 | M 24 | 26 | 22 |
| 350 | 355,6 | - | 520 | 30 | 470 | 82 | 390 | 8 | 12 | 16 | 438 | 4 | 16 | M 24 | 26 | 31,2 |
| - | 368 | 28,8 | ||||||||||||||
| 400 | 406,4 | - | 580 | 32 | 525 | 85 | 445 | 8 | 12 | 16 | 490 | 4 | 16 | M 27 | 30 | 39,3 |
| - | 419 | 36,3 | ||||||||||||||
| (450) | 457 | - | 640 | 34 | 585 | 85 | 490 | 8 | 12 | 16 | 550 | 4 | 20 | M 27 | 30 | 44,3 |
| 500 | 508 | - | 715 | 34 | 650 | 90 | 548 | 8 | 12 | 16 | 610 | 4 | 20 | M 30 | 33 | 61 |
| 600 | 610 | - | 840 | 36 | 770 | 95 | 652 | 8,8 | 12 | 18 | 725 | 5 | 20 | M 33 | 36 | 75,4 |
| 700 | 711 | - | 910 | 36 | 840 | 100 | 755 | 8,8 | 12 | 18 | 795 | 5 | 24 | M 33 | 36 | 77 |
| 800 | 813 | - | 1025 | 38 | 950 | 105 | 855 | 10 | 12 | 20 | 900 | 5 | 24 | M 36 | 39 | 101 |
| 900 | 914 | - | 1125 | 40 | 1050 | 110 | 955 | 10 | 12 | 20 | 1000 | 5 | 28 | M 36 | 39 | 122 |
| 1000 | 1016 | - | 1255 | 42 | 1170 | 120 | 1058 | 10 | 16 | 22 | 1115 | 5 | 28 | M 39 | 42 | 162 |
|
NOTE:
1. Facing according to DIN 2526 Flat face: Form A, Face without any requirements Form B, Face Rz=160, machined (not smoother than 40µm) Raised Face: Form C, Face Rz=160, machined (not smoother than 40µm) Form D, Face Rz=40, machined Form E, Face Rz=16, machined 2. Tongue and groove according to DIN 2512 Form F, Tongue Form N, Groove 3. Male and Female according to DIN 2513, DIN 2514 Form V13, V14, Male Form R13, R16, Female 4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695 5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696 |
| Production Capacity & Purchase Details | ||
| 1. | Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange. | |
| 2. | Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105 | |
| 3. | Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc. | |
| 4. | Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc. | |
| 5. | Monthly Output: 3000 tons per Month. | |
| 6. | Delivery Terms: CIF, CFR, FOB, EXW. | |
| 7. | Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc. | |
| 8. | Minimum Order Quantity: 1Ton or 100Pcs. | |
| 9. | Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service. | |
| 10. | Find More Requirements In Flanges Market. | |
