Air Conditioning C71500 C70600 Copper Nickel Tube , Thickness1-60mm
Copper Nickel Tube Thickness1-60mm Size 1-96inch C70600(90:10), C71500 (70:30), C71640
1) Grade : C71500 C70600
2) Diameter :10mm-55mm
3) Wall thickness : 0.5mm-3mm
4) Length : 1000mm-8000mm
5)Temper: soft ,Hard

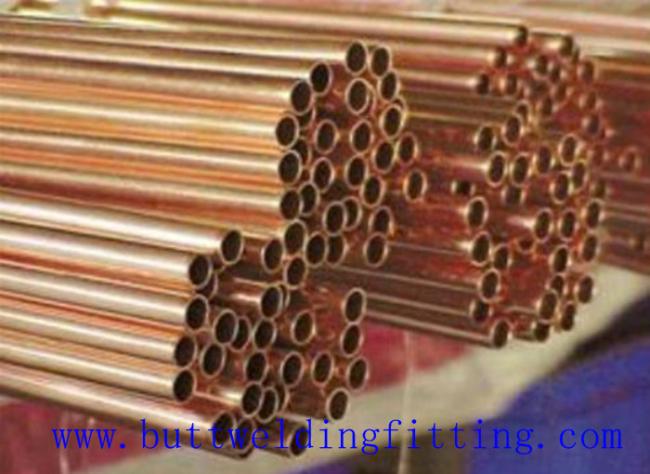

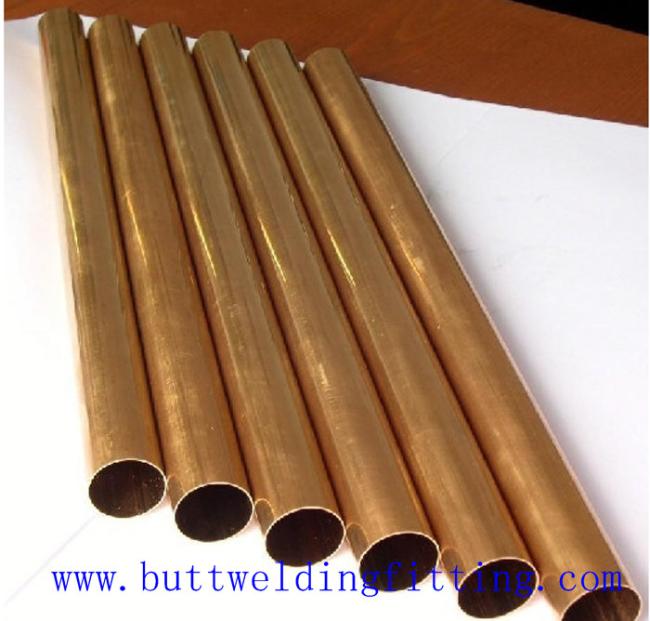

Nickel -Copper Tube :
We produce the tubes at different diameters, wall thicknesses and lengths according to your specific requirements.
Specification of Nickel-Copper Tube:
1) Grade:C71500 C70600
2) Diameter: 10mm-55mm
3) Wall thickness: 0.5mm-3mm
4) Length: 1000mm-8000mm
5) Temper:Soft, Half Hard ,Hard
More detailed imformation as the following table:
| Grade | Temper | Section Size (mm) | Length | |
| Outer Diameter | Wall Thickness | |||
|
CuNi30Mn1Fe (C71500) |
Soft | Φ12 ~ 55 | 0.75-3.0 | 1000 ~ 8000 |
| Half Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 | |
| Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 | |
|
CuNi10Fe1Mn ( C70600 ) |
Soft | Φ12 ~ 55 | 0.5-3.0 | 1000 ~ 8000 |
| Half Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 | |
| Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 | |
1.1.1 Specifications
1) Superior quality copper nickel pipes
2) Offer a wide range of copper Tubes,pipes
4) Grade:C70600 (90/10) & C71500 (70/30)
|
Item Name
|
air conditioning nickel price copper pipe/copper tube
|
|
Material
|
brass tube
|
|
Standard
|
GB/T3190-1996, AA/UNS, JIS H4000-1999,JIS H4040-1999, ISO209.1-1989,
EN573-3-1994
|
|
Colour
|
Natural colour
|
|
Dimensions
|
OD:2mm-914mm
|
|
Thickness:0.2-120mm
|
|
|
General length:1—12m
|
|
|
Custom size to be welcomed.
|
|
|
Tolerence
|
As per customers' requirement
|
|
Surface treatment
|
Mill Finish,Polish etc.
|
|
Technique
|
Extructed etc
|
|
Deep Processing
|
Cutting,Drilling,Punching,CNC machining,Bending,etc
|
|
Inspection
|
Factory’s available report can be offered like REACH,MSDS,Rosh and so on.
|
|
Third Party inspection service can be offered like ISO,SGS and so on.
|
|
|
Export markets
|
Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA,Brazil,Thailand,
|
|
Iraq,Russia,Holland,Turkey,Kuwait,Korea,Iran,India,Egypt,Oman,Malaysia,Peru,Vietnam,
|
|
|
Mexico,etc.
|
|
|
Application
|
Decoration,Construction,Industry,Handrail,Chemical,Air conditioner,Fridge,Water etc.
|
|
Package
|
Standard export seaworthy or as per customers' requirement
|
