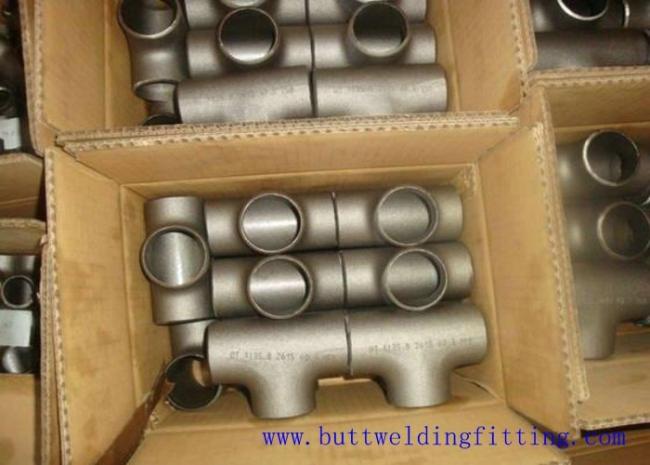

Stainless Steel Tee Butt Welding Tee ASTM A403 ASME B16.9 WPXM-19
Stainless Steel Tee Butt-welding Tee ASTM A403 WPXM-19 1/2-48''sch40 ASME B16.9
DESCRIPTION
A403 is a high-alloy austenitic stainless steel with low carbon content. The grade is intended for use under severe corrosive conditions.
Standardized and approved for pressure vessel use in several countries. Structurally, 403
is fully austenitic and is less sensitive to precipitation ferrite and sigma phases than conventional austenitic grades with high molybdenum content. Characteristically, due to the combination of relatively high contents of chromium, nickel, molybdenum and copper 904L has good resistance to general corrosion, particularly in sulfuric and phosphoric conditions.
TENSILE REQUIREMENTS
KSI 70 KSI 25 KSI can be converted to MPA (Megapascals) by multiplying by 6.895.
| Unit : inch Nominal Pipe Size |
Outside Dia. (OD) |
Wall Thickness (T) | Tees Center To Ends C.M | |||
| Sch.5S | Sch.10S | Sch.40S | Sch.80S | |||
| 1/2 | 0.840 | 0.065 | 0.083 | 0.109 | 0.147 | 1.00 |
| 3/4 | 1.050 | 0.065 | 0.083 | 0.113 | 0.154 | 1.13 |
| 1 | 1.315 | 0.065 | 0.109 | 0.133 | 0.179 | 1.50 |
| 1-1/4 | 1.660 | 0.065 | 0.109 | 0.140 | 0.191 | 1.88 |
| 1-1/2 | 1.900 | 0.065 | 0.109 | 0.145 | 0.200 | 2.25 |
| 2 | 2.375 | 0.065 | 0.109 | 0.154 | 0.218 | 2.50 |
| 2-1/2 | 2.875 | 0.083 | 0.120 | 0.203 | 0.276 | 3.00 |
| 3 | 3.500 | 0.083 | 0.120 | 0.216 | 0.300 | 3.38 |
| 4 | 4.500 | 0.083 | 0.120 | 0.237 | 0.337 | 4.13 |
| 5 | 5.563 | 0.109 | 0.134 | 0.258 | 0.375 | 4.88 |
| 6 | 6.625 | 0.109 | 0.134 | 0.280 | 0.432 | 5.63 |
| 8 | 8.625 | 0.109 | 0.148 | 0.322 | 0.500 | 7.00 |
| 10 | 10.750 | 0.134 | 0.165 | 0.375 | 0.500 | 8.50 |
| 12 | 12.750 | 0.156 | 0.180 | 0.375 | 0.500 | 10.00 |
| 14 | 14.000 | 0.156 | 0.250 | 0.375 | 0.500 | 11.00 |
| 16 | 16.000 | 0.165 | 0.250 | 0.375 | 0.500 | 12.00 |
| 18 | 18.000 | 0.165 | 0.250 | 0.375 | 0.500 | 13.50 |
| 20 | 20.000 | 0.188 | 0.250 | 0.375 | 0.500 | 15.00 |
| 24 | 24.000 | 0.218 | 0.250 | 0.375 | 0.500 | 17.00 |
Dtailed Production Description
1)Size: Seamless: 1/2”-60" SCH10s-XXS
2)Standard: ANSI B16.9/B16.11/B16.28, DIN, JIS, ISO
3)Material:carbon steel:A234-WPB WPC,
alloy steel :A420-WPL6, A234-WP11, A234-WP12, A234-WP5,A234-WP9,A234-WP22,15Mo3,15CrMoV,35CrmoV
stainless steel:A403 WP 304-304L-304H-304LN-304N
A403 WP 316-316L-316H-316LN-316N-316Ti
A403 WP 321-321H
A403 WP 347-347H
low tempture steel: A402 WPL3-WPL6
high performance steel: A860 WPHY 42-46-52-60-55-70
4)Surface treatment: carbon steel: shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot galvanizing
alloy steel: Shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot galvanizing
stainless steel: pickled ,Polish
5)Nominal wall thickness:SCH5-SCH160, STD, XS, XXS
6)Packing: Wooden case or wooden pallet according to the size of fittings
7)Delivery time:7-10 days for a 20 ft container
8)Others:1) Special design available 2)All the production process are made under the ISO 9001:2000 strictly.
Application
Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical), chemical
and pharmaceutial, pulp and paper, fertilizer, desalination, nuclear, electrict power, boiler,heat exchanger,metallurgy, refinery,
machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile,ect.
our advangtage
1) Raw material use 100% material steel
2) good service
3) Competive price
4) Fast delivery
5)High quality products
other products
we can provide steel butt weld pipe fittings such as elbow, tee, reducer,cap,bend and so on. Good quality, competitive price
and excellence service are your best choice.
