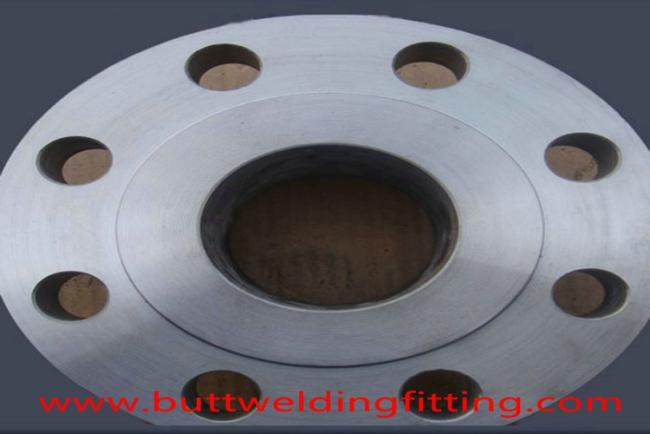

Alloy N06058 Forged Steel Plate Flanges 14'' RF STD B16.5 150LB
Alloy N06058 Forged Steel Plate Flanges 14'' RF STD B16.5 150LB
Product Description
Specifications
1.Copper Nickel Alloy flange
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia
| Material: | CuNi 90/10 | Technics: | Forged | Type: | Welding Neck |
| Place of Origin: | Shanghai, China (Mainland) | Pressure: | 150#,300#,600#,900#,1500#,2500# | Brand Name: | METAL |
| Connection: | Welding | Standard: | ASME B16.9 | Head Code: | Round |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | stainless steel |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange |
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
| Materials | Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on |
| P250GH, P280GHM 16MN, 20MN ,20# | |
| Stainless Steel: ASTM A182, F304/304L, F316/316L and so on | |
| Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on | |
| Types | Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed |
| Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange | |
| Blind Flange/Blank flange, Lap Joint Flange /LJ Flange | |
| Socket Weld Flange/SW Flange/ Threaded Flange/Screwed Flange | |
| Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring | |
| Custom Flange/Special Flange/ Hot/Cold/Electro Gavanized Flange | |
| Standards | ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES |
| JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504 | |
| BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123 | |
| GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES | |
| Pressure &Ratings | 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5 |
| PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI | |
| PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504 | |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80 | |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80 | |
| 600kPa, 1000.1600.2500.4000.-SANS 1123 | |
| 5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503 | |
| TABLE D, TABLE E ,TABLE F-BS 10, AS2129 | |
| CLASS D, CLASS E, CALSS F, AWWA C207 |
Why Choosing Metal Industrial:
-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Metallurgical Equipment
-Experienced Professinonals on Communications
Packing&Delivery
Packing Details :In wooden case, pallets or as per customers’ requirement
Delivery Details : 7-15 days after the PO
