Super Duplex 2507 2595MO Stainless Steel Flanges JIS Standard DN3600
Super Duplex 2507 Stainless Steel Flange
Standard: ANSI B16.5
Material: Carbon steel, Stainless steel and alloy steel etc.
Size: 1/2"-24"
Pressure: class600-2500
Surface:Antirust oil/Black painting/Yellow painting
Packing: Plywood cases, Plywood Pallets
Packaging Details
20" and below size will be packed in plywood cases,
24" and above size will be packed by plywood pallets
Delivery Time
5-20days
ASME SA182 2507 Super Duplex Stainless Steel Flange
1.Product Description
1)What's blind flange usage
- blind flange is used to close ends of piping systems. It is a kind of round plate with no center hold but with all the proper bolt holes. This blind flange is available in various sizes and materials and is used to provide positive closer on the ends of pipes, valves or equipment nozzles. This flange helps in easy access to a line once it has been sealed. The blind flange is sometimes custom made or machined to accept a nominal sized pipe to which reduction is being made. This reduction can be a threaded reduction or welded reduction.
2) Features of blind flanges:Some important features of blind flanges are as follows:
- Blind flanges are sometimes supplied with NPT fittings which allow pressure test connections to be fitted.
- They are used to blank off the ends of pipe.
- They are also used to blank off the ends of valves and pressure vessel opening.
- Considering factors like internal pressure and bolt loading, blind flanges, especially in the larger sizes, are the most highly stressed of all types of flanges.
- Since the maximum stresses in a blind flange are bending stresses at the center, they can ely be allowed to be higher than in other types of flanges.
- Blind flanges are made to fit standard pipes in all sizes.
3) Blind flange material
Stainless Steel : ASTM A 182, A 240
Grade : F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel : ASTM A 105, ASTM A 181
Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys : Copper, Brass & Gunmetal
Size : 1/8" NB TO 72"NB.
Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
4)Blind flange standard
ANSI :ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10

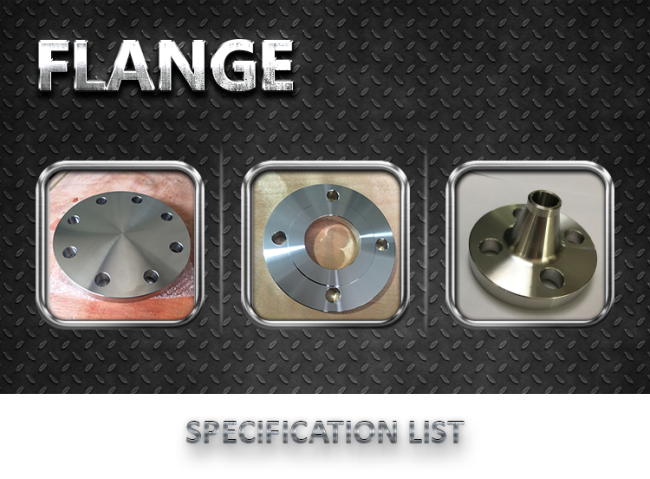

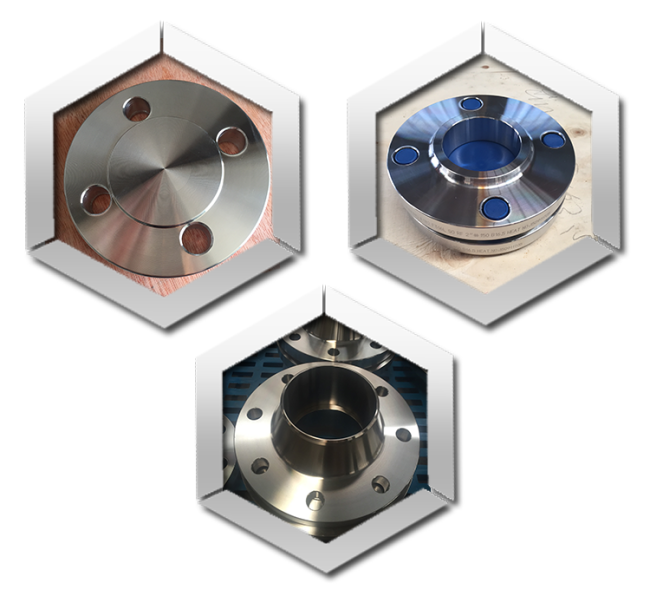

| Porduct Name | weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange, etc. |
| OD | 15mm-6000mm |
| Pressure | 150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc. |
| Wall thickness |
SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Material |
Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S, A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc. |
|
Duplex stainless steel: UNS31803, 2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. |
|
| Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276, Monel400, Alloy20 etc. | |
| Application | Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plart;ship buliding;water treament,etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,austomized;high quality |
The flange is a connection between the shaft and the shaft, for the connection between the pipe ends; also used in the equipment on the inlet and outlet of the flange, for the connection between the two devices.

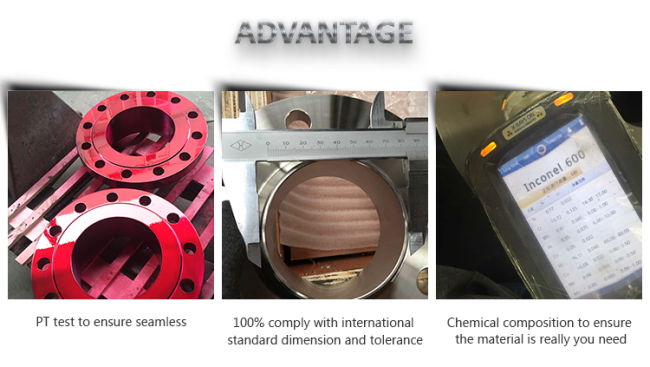

To control and guarantee products qualit .We will test products in each process of manufactuing
A Raw material inspection:
dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw material's quality assurance certificate check
B Semi-finished goods inspection:
dimension and tolerance check, physical and chemical inspection, leakage magnetism and ultrasonic inspection
C Finished goods inspection:
dimension and tolerance, appperance quality check and mechanical properties testing
D Inspection before ex-factory:
We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.
