0.1mm - 300mm Thickness Copper Nickel CuNi Condenser Pipe C715 70 / 30% ASTM B111 C70600
High Quality Copper Nickel CuNi Condenser Tube / Pipe C706 90/10
DESIGNATION: COPPER NICKEL, 90-10%.
This alloy is highly resistant to corrosion by turbulently flowing sea water. Tests and many years of service in tide water stations indicates to be an excellent condenser tube alloy for salt water use.
Copper nickel tubes 90-10% 706 are normaly produced in annealed temper.
Feasible Dimensions
Copper Nickel tube C70600 ASTM B111
The seamless copper nickel pipe/tube C70600 which is widely used for Evaporator,Heat Exchanger,Condenser,Distiller.
under standard ASTM B111, we can provide alloy tube C71500, C70600, C71640, etc.
Copper Nickel tubes, 10% – C70600 - exhibits excellent resistance to impingement attack. It is also highly resistant to SCC. This alloy is suitable for Marine condenser tube installations in place of Aluminum Brass, especially where higher water velocities are encountered.

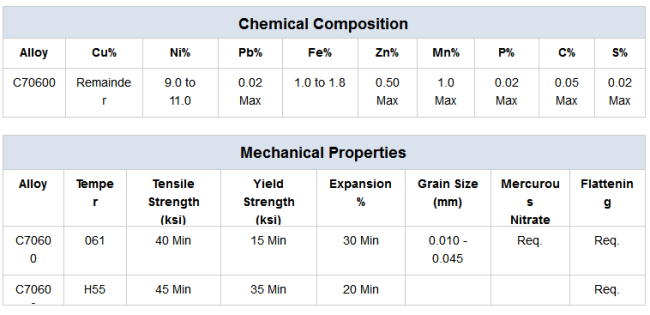

| UNS No. | C70600 – BSI No. CN102 – ISO Name CuNi10Fe1Mn |
| Chemical Comp. (%) | Cu rem / Ni 9 ~ 11 / Pb 0.05 / Fe 1 ~ 1.8 / Zn 1 max / Mg 1 max |
| ASTM Spec. | B 111, B 395, B 466, B 552 |
| ASME Spec. | SB 111, SB 395, SB 466 |
| Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing; Salt Water piping. |
| Temper | O61 Annealed / H55 Light-Drawn |

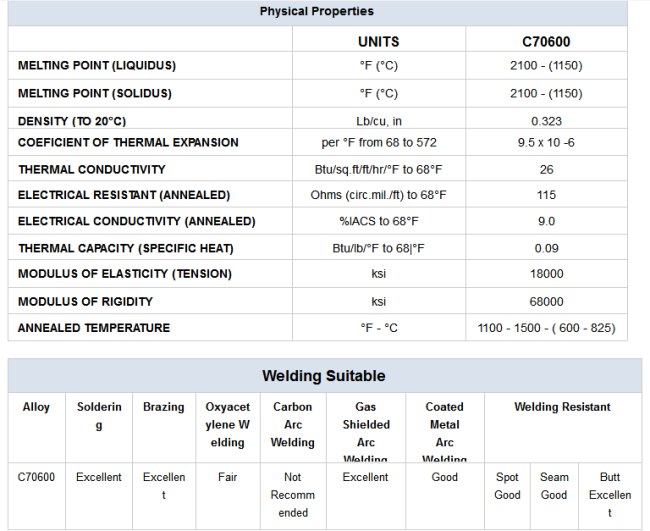

| Properties * | |
| Density | 0.323 lb/in³ |
| Tensile Strength min.- O61 -/- H55 | 40 ksi -/- 45 ksi |
| Yield Strength min.- O61 -/- H55 | 15 ksi -/- 35 ksi |
| CTE, linear | 9.5 10-6/°F @ 70.0 – 570 °F |
| Specific Heat Capacity | 0.09 BTU/lb-°F @ 70ºF |
| Thermal Conductivity | 26 BTU/ft2/ft/h/°F @ 70.0 °F |
| Melting Point | 2010 – 2100 °F |
Send your message to this supplier
Fully satisfy our customers, making products of copper and its alloys, using processes that are continuously improved in order to:
- Meet customer requirements.
- Control and prevent any environmental impact.
- Control and prevent risks in the process.
- Comply with legal and other applicable requirements.
1.Can we supply the sample ?
Yes,we can supply the sample of copper nickel pipe.You can tell us the detail size.
2.Can we accept customize?
Yes,we can.We can manufacture as customer's requirement.You can send the CAD or drawing to us.
3.Quality problem?
According to the standard for production.And the products must pass the quality inspection department.We also accept Third Part Inspection.
4.Delivery time?
Prompt delivery for standard size,or under the contract.
5.Payment term?
Under the contract.
6.Other problem?
You can contact our customer service staff to ask help.
