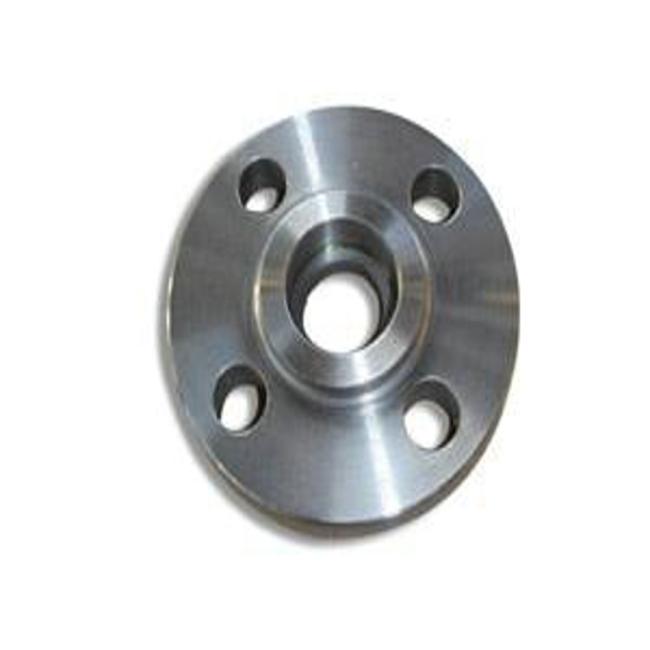

Round 600LB Slip-On Flanges 1/2" - 48 ASTM A182 F53 High Strength Slip On Type
Forged Steel Flange 600LB Slip-On Flanges 1/2''-48 ASTM A182 F53 High Quality
All our products come in a variety of classes and material grade for any application.
This catalogue is specific for flanged outlets.
Flanged outlets are available with nominal diameter from 1/2" up to 12", rating from class
150# to 2500#, RF or RTJ. Schedules available are 10S, STD, XS, 160 and XXS, all
according to Shell Standard Drawing S38.090-C and can be installed on header pipes
from DN 3/4" up to 36".
| Materials | Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on |
| P250GH, P280GHM 16MN, 20MN ,20# | |
| Stainless Steel: ASTM A182, F304/304L, F316/316L and so on | |
| Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on | |
| Types | Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed |
| Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange | |
| Blind Flange/Blank flange, Lap Joint Flange /LJ Flange | |
| Socket Weld Flange/SW Flange/ Threaded Flange/Screwed Flange | |
| Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring | |
| Custom Flange/Special Flange/ Hot/Cold/Electro Gavanized Flange | |
| Standards | ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES |
| JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504 | |
| BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123 | |
| GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES | |
| Pressure &Ratings | 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5 |
| PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI | |
| PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504 | |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80 | |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80 | |
| 600kPa, 1000.1600.2500.4000.-SANS 1123 | |
| 5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503 | |
| TABLE D, TABLE E ,TABLE F-BS 10, AS2129 | |
| CLASS D, CLASS E, CALSS F, AWWA C207 | |
| Surface Treatment | Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color |
| Varnish Paint Coating, Varnish Oil Coating, | |
| Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30mm) | |
| Hot Dip Galvanizing Coating (Coating Thickness 200mm around) | |
| Technical | Forging |
| Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry |
| and general pipes connecting projects etc. | |
| Inspection | Quality Control System-Well Equipments and Machinery-Well Workers and Engineers |
| Packing | Wooden Pallets or Wooden Cases or As Customers' Requirements |
| Payment Terms | L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L |
| Delivery Time | 30 Days after the Advance or the L/C |
| After-Sales Service | Orders and Products Tracking System |
Why Choosing Metal Industrial:
-
Sufficient Forging, Heating, Machining Equipment
-
In-house Inspection Instruments for Quality Controlling
-
Competitive Price & High Quality Assurance
-
Fast, Effective and Efficient Services
-
Directly supplier of Metallurgical Equipment
-
Experienced Professinonals on Communications
- Reduced installation and manufacturing cost
- Longer life under cyclic fatigue loading
- Butt-weld installation in header pipe
- Shape in compliance with Shell Standard Drawing S38.090-C
- Flange dimension according to ASME B16.5
Packing&Delivery
-
Packing Details :In wooden case, pallets or as per customers’ requirement
-
Delivery Details : 7-15 days after the PO
