Nickel based astm400 k500 seamless alloy steel pipe with ASTM B127 Standard

Price Negotiable
Price: negotiable
MOQ: 0.5-1 tons
Delivery Time: 15days->
Brand: TOBO/TPCO/TISCO/VALIN/METAL
Product Description

Nickel based astm400 k500 seamless alloy steel pipe with ASTM B127 Standard

Overview
Quick Details
Place of Origin:
China
Application:
widely
Alloy Or Not:
Is Alloy
Section Shape:
Round
Outer Diameter:
6 - 500 mm
Thickness:
0.1 - 10 mm
Standard:
ASTM, ASME B36.19M-2004
Grade:
Cr17Ni8, CrNi alloy
Technique:
Cold Rolled
Dimension:
0.1mm-10mm
Composition:
Ni Min63%,Cu 28%-34%,Fe Max2.5%,Mn Max2%
Shape:
wire,bar,plate,tube
Density:
8.83 g/cm3
Melting:
1300-1390°C
Certificate:
ISO9001
Ultimate Strength (≥ MPa):
480
Surface:
Bright
M.O.Q:
3kgs
Delivery Time:
7 to 20 Days





























Packaging & Delivery

Selling Units:
Single item
Single package size:
100X50X20 cm
Single gross weight:
50.000 kg
Package Type:
Packed with waterproof paper or weave bag, into pallets or wooden case.
 Products of spool wire or ribbon are packed with plastic film, standard cardboard boxes,into pallets and wooden case.
Product Description

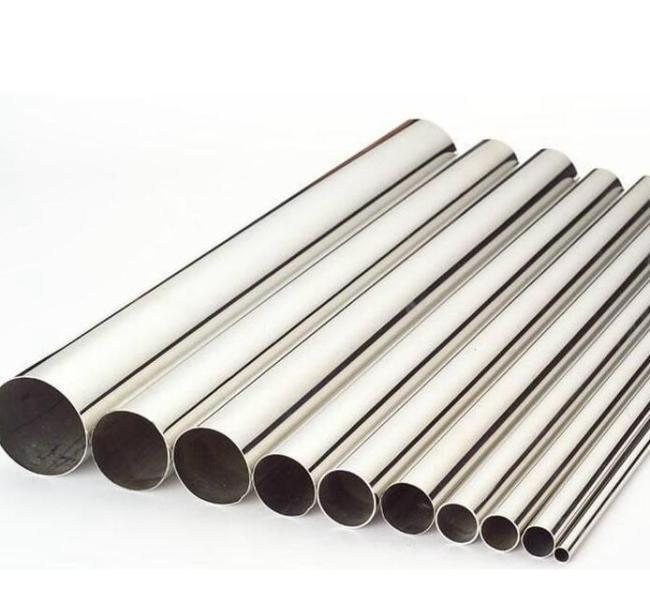

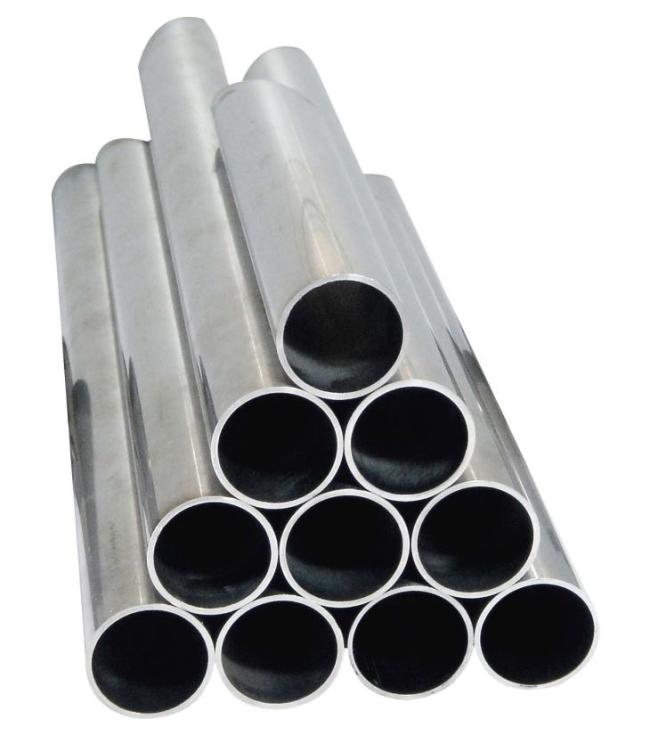

Monel 400 seamless pipe with good price



400 is copper nickel alloy,has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.

It is widely used on many aspects,like valve and pump parts, electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment, propeller shafts, marine fixtures and fasteners,boiler feedwater heaters and other heat exchangers.




Specification

  USA GE UK FR
UNS SEW VDIUV BS AFNOR
Monel 400 N04400 W.Nr.2.4360 NiCu30Fe NA 12 Nu 30



Chemical Composition:

Grade Ni% Cu% Fe% Mn% C% Si% S%
Monel 400 Min 63 28-34 Max 2.5 Max 2.0 Max 0.3 Max 0.5 Max 0.024



Physical Properties:

Grade Density Melting Point
Monel 400 8.83 g/cm3 1300°C-1390°C



Mechanical Properties:

Alloy Tensile Strength (Rm N/mm2) Yield strength (RP0.2N/mm2) Elongation (A5 %) HB
Monel400 480 170 35 ≥331





Production Standard:

  Bar Forging Pipe Sheet/Strip Welding Wire
Standard ASTM B164 ASTM B564 ASTM B165 ASTM B127 ERNiCu-7ERNiCu-7







FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
