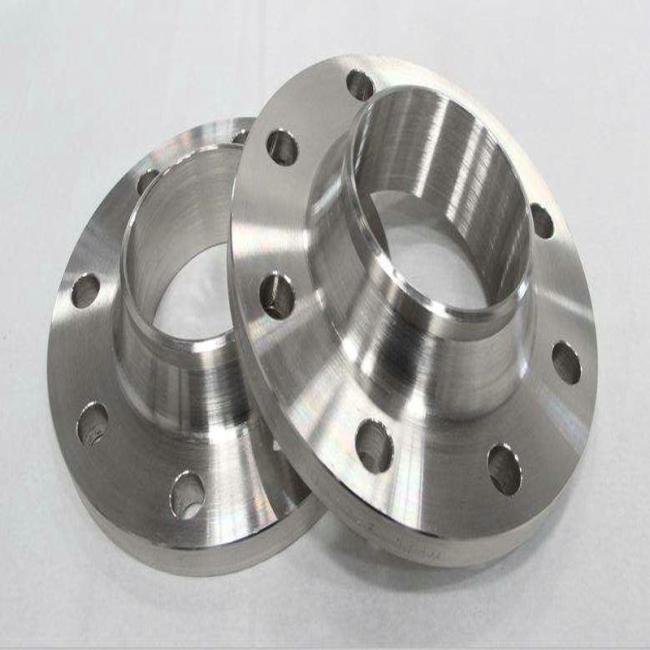

ASME B16.5 A182 UNS 32760 F55 Plate Forged Steel Flanges 6 Inch Class 600
ASME B16.5 A182 UNS 32760 F55 Plate Flange 6 Inch Class 600
Quick Details
| Material: |
F55 (UNS 32760/F55), etc
|
Size: |
6"
|
Type:F55 |
Plate Flange
|
| Place of Origin: |
Zhejiang, China (Mainland)
|
Connection: |
Welding
|
Brand Name: |
TOBO
|
| Standard: |
ASME B16.5, etc
|
Shape: |
Round
|
Standard or Nonstandard: |
Standard
|
| Technics: |
Forged
|
Packaging & Delivery
| Packaging Details: | Seaworthy plywood case or as customer requests |
|---|---|
| Delivery Detail: | 2 - 10 days after receiving the deposit |
Specifications
ASME B16.5 A182 UNS 32760 F55 Plate Flange 6 Inch Class 600
1. Material: Super Duplex Stainless Steel 2507 (UNS 32760/F55)
2. Size: 6"
3. Standard: ASME B16.5, etc
4. Pressure: 150#, 300#, 600#, etc
A plate flange is a flat, circular disk that is welded onto the end of a pipe and allows it to be bolted to another pipe. Typically used in fuel and water pipelines, the two plate flanges will be bolted together with a gasket in between them. The plate flange will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
When building a pipeline, the length of the pipes used are not always known. By manufacturing the pipe separate from the plate flange, the welders can cut the pipe to length and weld a plate flange in place to join the pipes at any needed length. The plates can also be welded to the pipe on a slight bias, allowing two pipes to be joined that may not be precisely lined up.
Chemical Composition Of F53 UNS 32750 GR2507 Super Duplex Stainless Steel
|
GRADE
|
C≤
|
Mn≤
|
Si≤
|
S≤
|
P≤
|
Cr≤
|
Ni
|
Mo
|
Cu≤
|
N
|
|
S32750
(2507)
|
0.03
|
1.20
|
0.8
|
0.020
|
0.035
|
24.0/26.0
|
6.0/8.0
|
3.0/5.0
|
0.50
|
0.24/0.32
|
| Type | 2507 Plate Flange |
| Size | 1/2" to 80" |
| Standards | SO, WN, SW, TH, LJ, BL, PL, etc |
| Material |
Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, 46, 52, 56, 60, 65, 70 Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Duplex Stainless Steel: F51, 2205, F53, 2507, etc |
| Surface treatment | Chamfering |
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
APPLICATIONS:
1. Petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers’ requirements;
Plate flange is most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
1) Packing Method:
Normal packing: plastic film or bubble paper wrapped on product's surface ,protect ends with caps , pack with wooden case or load on fumifation plywood pallet .
Custom made as customers request.
2) Shipping Way:
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
