Wholesale Custom Stainless Steel Pipe Fitting Flat Clamp Cover End Cap

Price Negotiable

Price: negotiable

MOQ: 0.5-1 tons

Delivery Time: 15days->

Brand: TOBO/TPCO/TISCO/VALIN/METAL

Product Description

Wholesale Custom Stainless Steel Pipe Fitting Flat Clamp Cover End Cap

Overview

Quick Details

Warranty:: 1 year

Customized support:: OEM

Place of Origin:: China (Mainland)

Technics:: Casting

Connection:: Quick install, weld, flange,clamp

Shape:: Equal

Head Code:: Round

Product name:: Stainless Steel Sanitary End Cap

Surface treatment:: Polished

Standard:: 3A.SMS.ISO.DIN

Sample:: Sample Freely

Payment:: L/C T/T 30% Deposit

Service:: OEM Service

Size:: 1/2"-12"

MOQ:: 10 Pcs

Application:: Food,beer,beverage,milk pipeline,pharmacy,cosmetic

Packing:: Plastic Bag+Carton

Supply Ability

Supply Ability: 10000 Piece/Pieces per Month

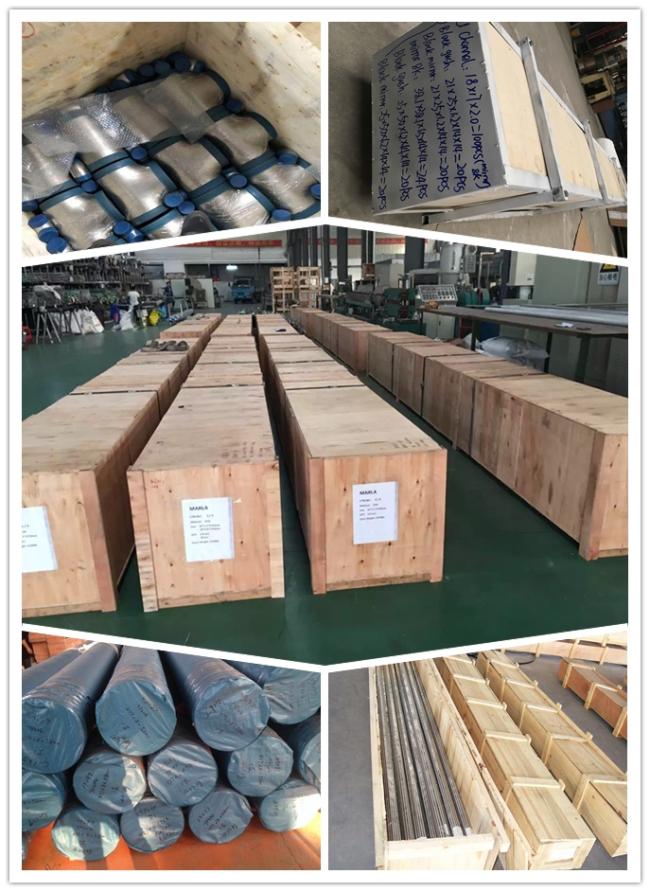

Packaging & Delivery

Packaging Details: Carton and Wooden case or as your requirement for stainless steel pipe fiitings packing

Port: Shanghai

Picture Example:

Product Description

Product name	45mm Sanitary Pipe Fitting Blind Ferrule Gasket Stainless Steel Tri Clamp Clover Set
Material	TP304(SS304), TP316(SS316), TP316L(SS316L) 1.4301 1.4306 1.4307 1.4404
Seal material	NBR,Silicone,EPDM,FPM,PTFE
Standards	DIN,SMS,ISO,IDF,RJT,AF,BS
Type	Welded. tri clamp, union connect
Surface treatment	1.Ra≤ 1.6μM 2.Ra≤ 0.8μM 2.Ra≤ 0.4Polished
Application	1, Biological engineering industry 2, Food industry 3, Pharmaceutical industry 4, Purified water industry 5, Beer industry 6, Cosmetics industry and etc.
Packing	In wooden cases with water-proof package or as customers’ requirement for stainless steel sanitary end cap/ blind flange packing
Documents	1, Raw material certification 2, All the test & Inspection reports as per PO and standards 3, Shipping notification before shipment 4, Quality warranty letter
Min order	10 pieces
Productivity	20000 Pieces per month
Delivery time	10-25days
Payment terms	T/T L/C
Service	OEM , Free sample, Third Party Test for stainless steel end cap/ blind flange

ment contain list	Material	201	202	304	316
	Composition	201	202	304	316
	C	0.073	0.055	0.042	≤0.08
	Si	0.364	0.416	0.46	≤1.00
	Mn	9.282	7.483	1.03	≤2.00
	P	0.0329	0.0393	0.044	≤0.045
	S	0.0051	0.0032	0.004	≤0.030
	Cr	14.912	15.958	18.35	16-18
	NI	1.246	4.079	8.03	10.0-14.0
	Mo				2.0-3.0
	Cu	1.46	1.494
Test	Material Item		201	202	304
	Tensile Strength		≥535	≥520	687
	Yield Strength		≥245	≥205	287
	Extension		≥30%	≥30%	52.50%
	Hardness (HV)		<253	<253	187

Product Show

Specification

Wholesale Custom Stainless Steel Pipe Fitting Flat Clamp Cover End Cap

Size(Tube OD)	Dimensions
Size(Tube OD)	A	B
1/2″ — 3/4″	0.187	0.992
1″ — 1-1/2″	0.250	1.984
2″	0.250	2.516
2-1/2″	0.250	3.047
3″	0.250	3.579
4″	0.312	4.68
6″	0.437	6.570
8″	0.437	8.570
10″	0.437	10.570
12 “	0.437	12.570

Related Products

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
