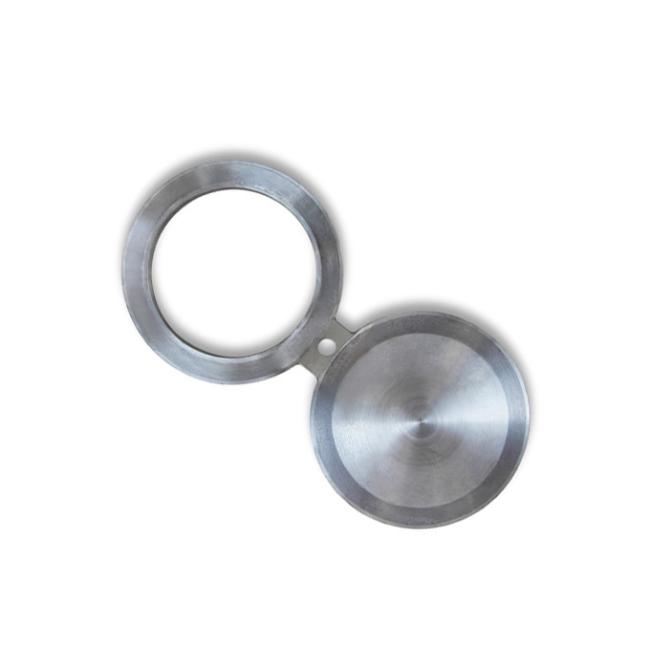

Copper Nickel CuNi 9010 Special Spectacle Blind Flange NPS 10 CL150 FF ASTM B171 UNS C70600
Price:
US $ 10 - 100 / Kilogram
MOQ:
300 Kilogram/Kilograms
Delivery Time:
7-30days
Brand:
TOBO
Product Description
Copper Nickel CuNi 9010 Special Spectacle Blind Flange NPS:10 CL150 FF ASTM B171 UNS C70600
| Specification | Copper Nickel Pipe Fittings |
|---|---|
| Copper Nickel Alloy Pipe Fittings Dimensions | ASME/ANSI B16.9/ EN/ JIS/ ASME/ANSI B16.11/ DIN/ ASME B16.28/ MSS-SP-43/ |
| Type Of Connection | Clamp End End Bell Threaded Forging/ |
| Manufacturer Type Of Cu Ni Fitting | Reducer/ Stub End/ Pipe Bend/ End Cap/ Elbow/ Tee |
| Grade Of Copper Nickel Fittings | Copper Nickel 90/10 Pipe Fittings And Copper Nickel 70/30 Pipe Fittings |
| Copper Nickel Fittings Manufacturers Schedule | SCH 10/ SCH 40/ SCH 80/ SCH 120/ SCH 160/ SCH 180 |
| Threaded Pressure Class | Class 3000 and Class 600 |
| Chemical Composition Of Copper Nickel Fittings | Mn (1.0 max.), Pb (0.05 max.) Cu (88.6 min.) Etc. |
| Forging Type | (1) Seamless (2) ButtWeld (3) Welded |
| Bending Radius | R=1D/ 2D/ 3D/ 5D/ 6D/ 8D/ 10D or Custom |
| Surface Treatment | Sand blasting/ Sand Rolling/ Sand Blasting |
| Application | Power/ gas/ petroleum/ chemical/ metallurgy/ shipbuilding etc. |
| Supporting Material | Gasket/ Ring Joint/ Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged/ Heat treated and machined |
| Manufacturer Size | Buttweld ½" NB to 120" NB Seamless ½” to 24” Welded ½” to 120” Two Joint / Two Halve Fittings 6” to 48” |
| Our service | Nace Mr 01 75 Sour Service Impact Test As Per Ug 84 Macro Structure Analysis Hydrogen Induce Cracking Test (Hic) Sulphide Stress Cracking Test (Sscc) Cryogenic Services (Cryo),hydrogen Services (H2) Helieum Leak Test Dye Peniterant Test (Dp) Magnetic Partius Test (Mp) Post Weld Heat Treatment (Pwht) Ultrasonic Test (Ut) Hydro Test, Etc. |
Material: Copper Alloys - Copper Nickel Alloys
| Property | Minimum Value (S.I.) | Maximum Value (S.I.) | Units (S.I.) | Minimum Value (Imp.) | Maximum Value (Imp.) | Units (Imp.) |
|---|---|---|---|---|---|---|
| Atomic Volume (average) | 0.0071 | 0.0073 | m3/kmol | 433.268 | 445.473 | in3/kmol |
| Density | 8.5 | 8.95 | Mg/m3 | 530.638 | 558.731 | lb/ft3 |
| Energy Content | 140 | 180 | MJ/kg | 15167.4 | 19501 | kcal/lb |
| Bulk Modulus | 130 | 170 | GPa | 18.8549 | 24.6564 | 106 psi |
| Compressive Strength | 85 | 550 | MPa | 12.3282 | 79.7708 | ksi |
| Ductility | 0.03 | 0.44 | 0.03 | 0.44 | ||
| Elastic Limit | 85 | 550 | MPa | 12.3282 | 79.7708 | ksi |
| Endurance Limit | 138 | 240 | MPa | 20.0152 | 34.809 | ksi |
| Fracture Toughness | 26 | 79 | MPa.m1/2 | 23.6612 | 71.8937 | ksi.in1/2 |
| Hardness | 580 | 1650 | MPa | 84.1219 | 239.312 | ksi |
| Loss Coefficient | 1.5e-005 | 0.00056 | 1.5e-005 | 0.00056 | ||
| Modulus of Rupture | 85 | 550 | MPa | 12.3282 | 79.7708 | ksi |
| Poisson's Ratio | 0.34 | 0.35 | 0.34 | 0.35 | ||
| Shear Modulus | 45 | 58 | GPa | 6.5267 | 8.41219 | 106 psi |
| Tensile Strength | 267 | 624 | MPa | 38.7251 | 90.5036 | ksi |
| Young's Modulus | 120 | 156 | GPa | 17.4045 | 22.6259 | 106 psi |
| Glass Temperature | K | °F | ||||
| Latent Heat of Fusion | 220 | 240 | kJ/kg | 94.5825 | 103.181 | BTU/lb |
| Maximum Service Temperature | 425 | 480 | K | 305.33 | 404.33 | °F |
| Melting Point | 1384 | 1508 | K | 2031.53 | 2254.73 | °F |
| Minimum Service Temperature | 0 | 0 | K | -459.67 | -459.67 | °F |
| Specific Heat | 384 | 386 | J/kg.K | 0.297162 | 0.298709 | BTU/lb.F |
| Thermal Conductivity | 19 | 66 | W/m.K | 35.5686 | 123.554 | BTU.ft/h.ft2.F |
| Thermal Expansion | 16 | 17 | 10-6/K | 28.8 | 30.6 | 10-6/°F |
| Breakdown Potential | MV/m | V/mil | ||||
| Dielectric Constant | ||||||
| Resistivity | 11.7 | 36.3 | 10-8 ohm.m | 11.7 | 36.3 | 10-8 ohm.m |
Specifications
Features:
1) Clean and smooth
2) Bright
3) High quality
4) Can meet our clients' different requirement to make U-type tube
Alloy No.:C70600,C44300,C71500,C68700
Standard: GB, ASTM, EN, etc.
1.Excellent mechanical and physical properties
2.Smooth, clean, bright on both outer and inner surfaces
3.Chemical composition strictly conform to relevant standards
4.Can meet our clients' different requirement to make U-type tube
5.Free from defects such as blowholes, cracks, pin hole leaks, etc.
Application: Heat exchanger; Condenser; Air Cooler; Evaporator,etc.
