3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings

Name: 3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings
Brand: TOBO STEEL GROUP CHINA

Price Negotiable

Price: negotiable

MOQ: 0.5-1 tons

Delivery Time: 15days->

Brand: TOBO/TPCO/TISCO/VALIN/METAL

Product Description

3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings

Overview

Quick Details

Warranty:: 3 years

Customized support:: ODM, OEM

Place of Origin:: China

Model Number:: FP01

Technics:: Forged

Connection:: Female/Male/Welding

Shape:: Equal or Reducing

Head Code:: Round

Surface treatment:: Galvanized is available

Feature:: High Durability

Function:: Piping Connection

Sample:: Sample Freely

Sample Delivery:: 5-7 days

Pressure:: 3000 lb , 6000 lb , 9000 lb

Supply Ability

Supply Ability: 400000 Ton/Tons per Year

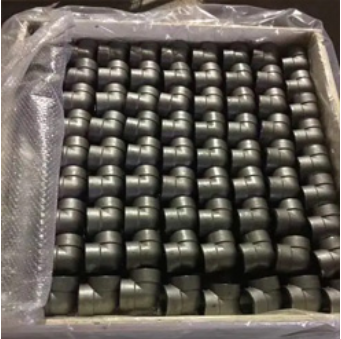

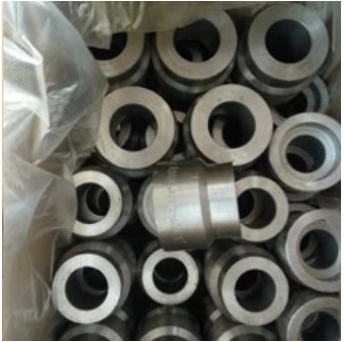

Packaging & Delivery

Packaging Details: two boxes in one carton
35 cartons per one pallet
842 cartons with the pallet in one container
Carton size: 485mm x 320mm x 180mm

Port: Tianjin

Picture Example:

Lead Time:

Quantity(pieces)	1 - 10	11 - 100000	>100000
Est. Time(days)	7	35	To be negotiated

Products Description

Name	Forged Pipe Fittings
Dimension Specification	GB/T 7306,12716,14383,14626 ASME B16.11-2001(Revison of ASME 16.11-1996) MSS-SP-79,83,95,97
Material specification	Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2 Stainless steel: ASTM A182 F304/ F304/ F316/F316L/F317/317L/F321/F310/347/904 Size of raw material: DIS19~100MM round bar.
Pressure	Threaded end--2000/3000/6000LBS Socket weld end--3000/6000/9000LBS Butt welding--SCH40/SCH80/SCH160/XXS
Connection way	Socket-weld Threaded(NPT/BSPT) Butt-welding
Type	Elbow, tee, cross, coupling, half coupling, cap, plug, bushing, union, out-let, swage nipple, bull plug, reducer insert and hex, nipple, street elbow, boss, ect.
Marking	Carbon and alloy steel: marked by stamping. Stainless steel: marked by electro-etched, jet printed or stamping. 1/2"-4"
Finishing	Carbon steel--Galvanized or black phos, phosphating. Stainless steel--Pickled.
Application	Suitable for fire piping system,air,oil,gas,water supply.
Service	Buyer's drawing or designs are available.
Package	1. Cartons 2. Wooden case 3. Plywood case 4. As the buyer's requirements.
Delivery Details	According to the quantities and specifications of each order; Normal delivery times is from 25 to 35 days after receiving the deposit.

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
