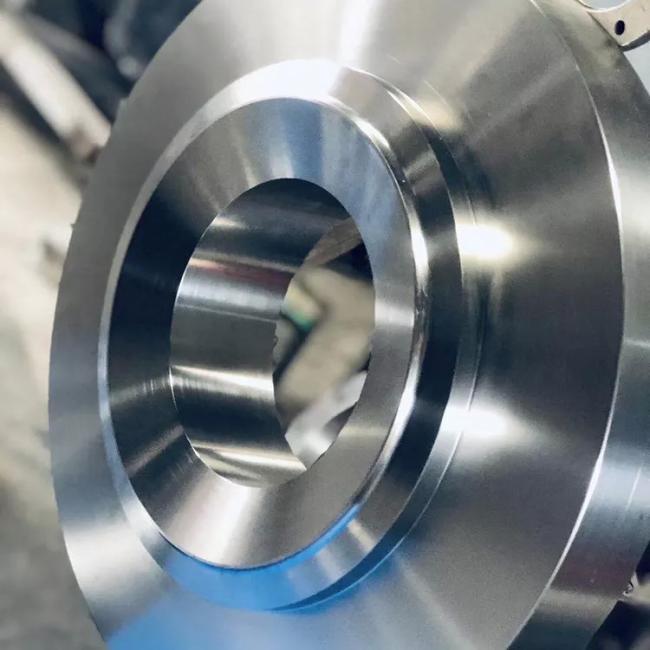

3“ TH Flange TG ASME B16.47 SERIE A FLG x BW 900 R.F. (125-250 AARH) FORGED ASTM A 694 F65 GA-E-60103

Referenced documents

The following list of standard apply to these specification:

ASTM standards:

• A266/A266M Specification for carbon steel forgings for pressure vessel components.
• A675/A675M Specification for hot-rolled, special quality and mechanical properties, carbon steel bars.
• A696 Specification for steel bars, carbon, hot-rolled or cold-finished,special quality, for pressure piping components.
• A788/A788M Specification for steel forgings, general requirements.
• A961/961M general requirements for steel flange, forging fittings, valve and parts for piping applications.

MSS standard:

• SP44 Standard for steel pipe line flanges

ASME Standard:

• B16.5 Dimensional standard for steel pipe flanges and flanges fittings
• B16.9 Wrought steel butt-welding fittings
• B16.10 Face-to-face and end-to-end dimensions of ferrous valves
• B16.11 Forged steel fittings, socket weld and threaded
• B16.34 Valves connect by flanges, threaded and welding end
• B16.47 Large diameter steel flanges
• ASME boiler and pressure vessel code:

API standard:

• API-600 Flanged and butt-Welding-end steel gate valves
• API-602 Compact design carbon steel gate valves for refinery use

Elongation

Terminology

For definitions of other terms used in this specification, find in specification A961/A961M.

Ordering information

See specification A961/A961M.

General requirements

If conflict between the requirements of this specification and Specification A961/A961M. Comply with this specification.
