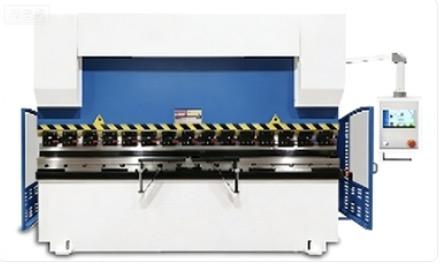

Blue Hydraulic Press Brake bending machine for 3mm thickness 3000mm length for russia user
Price:
LOWE PRICE
MOQ:
1 SET
Delivery Time:
35 DAYS
Brand:
JINQIU
Product Description
| Item | Unit | 80T3200 |
| Control Axis | Y-X-axis | |
| Bending force | Ton | 80 |
| Bending length(A) | mm | 3200 |
| Distance between columns(B) | mm | 2600 |
| Beam Stroke(C) | mm | 130 |
| Daylight(D) | mm | 375 |
| Throat Depth(E) | mm | 400 |
| Working table height(F) | mm | 680 |
| WORKING SPEED: | ||
| Approaching Speed | mm/sec | 180 |
| Work Speed | mm/sec | 12 |
| Return Speed | mm/sec | 140 |
| BACKGAUGE: | ||
| Max Speed X-axis | mm/sec | 150 |
| Max Travel X- Axis | mm | 500 |
| Max Travel R- Axis | mm | / |
| Finger Block | Pcs | 3 |
| Support Arms | Pcs | 2 |
| CAPACITY: | ||
| Motor Power | KW | 7.5 |
| Overall dimensions (LxWxH) | mm | 3700x1800x2450 |
| Machine weight | kg | 6200 |
| MODEL | CNC Double Servo Press Brake |
| APPEARANCE |  |
| CONTROL SYSTEM | TP10 S (China) |
| CNC AXIS | Y+X |
|
MAIN MOTOR (Three-phase Asynchronous) |
HUYUAN(CHINA) |
| Y+X AXIS MOTOR | POWMAX (China) |
| GUIDE RAIL | Ball Screw and Linear Guide Rail (China) |
| CYLINDER | HUAYI (China) |
| HYDRAULIC SYSTEM | Boch Rexroth (Germany) |
| HYDRAULIC PUMP | HUIXI (China) |
| SEAL RING | (Japan) |
| MAIN ELECTRIC COMPONENTS | Schneider (France) |
| CLAMP | Fast Clamp (side draw) |
| MOLD |
Square Mold(Standard) CNC Double-V Mold(optional) |
|
VOLTAGE/HZ/PHASE (can be customized) |
380V/50HZ/Three-phase |
