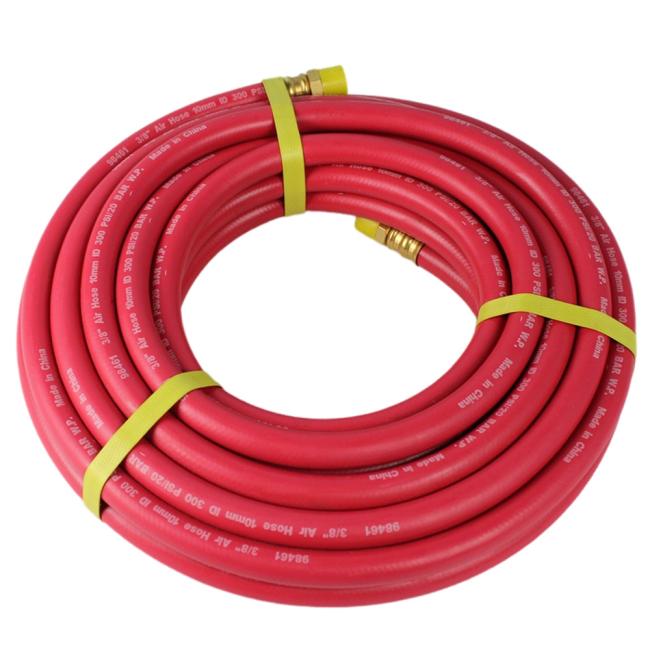

Red EPDM 1/2'' X 50FT with NPT Male Rubber Air Hose Assembly for Compressed Air
Price:
USD7.5~10.0 per piece
MOQ:
100pieces
Delivery Time:
30 working days
Brand:
PASSIONCO HOSE
Product Description
Rubber Air Hose Assembly
Product Description:
Features:
1. Customized sizes.
2. Long life.
3. Aging resistance.
4. Joint is Firmly Buckled.
5. Customized LOGO.
6. Wear Resistance.
7. High Flexibility.
8. No Kinks.
4. Joint is Firmly Buckled.
5. Customized LOGO.
6. Wear Resistance.
7. High Flexibility.
8. No Kinks.
Technical Parameters:
| Factory Customized 1/2'' x 50FT with NPT Male Rubber Air Hose Assembly | |
| Application | Industrial, Automotive, Construction, etc. |
| Color option | Red/Blue/Black/Green/Orange/Yellow etc. |
| TEMP. Rang | -30ºC ~ +90ºC |
| Inner Diameter | 1/4'' ~ 1'' |
| Certifications | CE & RoHS approved. |
| Fittings | NPT, BSP & other Male & Female thread connectors. |
| Inner Tube | NR & SBR Synthetic Rubber. |
| Outer Cover | SBR & EPDM Synthetic Rubber. |
| Specific Parameters | |||||||||||
| Part Number | I.D | O.D | Max W.P. | Min B.P. | Min Bend Raidus | Weight | |||||
| NO. | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/50ft |
| PAA-1050 | 3/8 | 10 | 0.67 | 17 | 300 | 20 | 900 | 60 | 6.69 | 170 | 4.40 |
| PAA-1950 | 3/4 | 19 | 1.14 | 29 | 300 | 20 | 900 | 60 | 11.42 | 290 | 9.50 |
Applications:
Mainly used for conveying of air, inert gas, and water in mining, construction, engineering, shipbuilding, steel production, etc. Various sizes are suitable for machinery, tubes have good air tightness and pressure resistance. Excellent wear resistance, a good assistant for your life and work, improving work efficiency.
