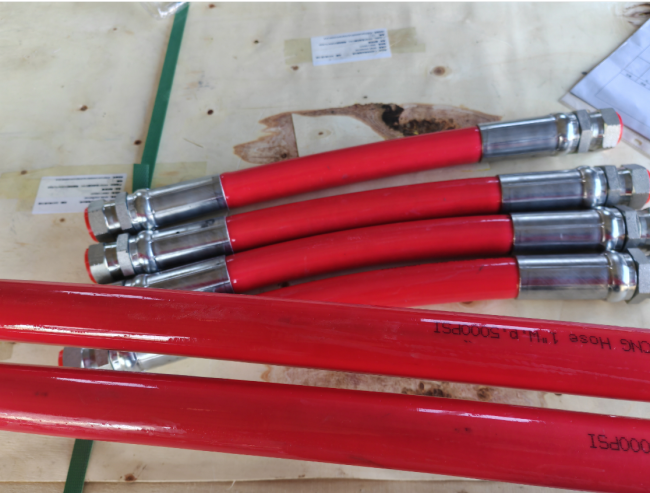

CNG Hose with Wire-Braided Reinforcement for High-Pressure Natural Gas Delivery

Aramid Fiber CNG Hose – High-Pressure Gas Transfer with Less Weight, More Flexibility, and Enhanced Safety

Key Benefits

• Aramid (Kevlar®) Fiber Braid – Around 40% lighter than steel-braided hoses, allowing easier handling and simpler installation

• High Performance – Rated for 350 bar working pressure and up to 1400 bar burst pressure for safe operations

• All-Weather Reliability – Operates from -40°C to +85°C, suitable for varied global climates

Why Aramid Over Steel Wire?

Built-In Anti-Static Safety

• Integrated Conductive Layer – Disperses static through carbon black or conductive fiber inside the hose

• No Grounding Hardware Needed – Unlike metal-braided hoses, no risk of grounding failure

• Maintenance-Free – Eliminates the need for regular electrical continuity checks

Typical Uses

• CNG & LNG Vehicles – Cuts weight to extend driving range and improve fuel economy

• Gas Refueling Stations – Flexible routing in complex piping systems

• Marine & Industrial Settings – Corrosion-free in saltwater or humid conditions

Four-Layer Hose Design

1. Inner Tube – Anti-static thermoplastic with excellent gas sealing

2. Reinforcement Layer – Lightweight yet strong aramid fiber braid

3. Bonding Layer – High-adhesion compound for structural integrity

4. Outer Cover – UV, weather, and abrasion-resistant thermoplastic

Addressing Customer Concerns

Customization Options

• Length range: 1 m to 50 m

• Fitting choices: SAE J2044 threads, clamp fittings, quick-connect couplers

• Available colors: Yellow, Blue, Red for easy pressure identification

Trusted Worldwide

• Global Reach – Products in service across 30+ countries, including key CNG markets like China, India, Russia, Brazil, and Iran

• Proven Track Record – Over 10 years in production, more than 5 million meters delivered
