SAE 100R6 Hydraulic Hose Oil Resistant Low Pressure Return Line for Hydraulic and Fuel Systems
SAE 100R6 Hydraulic Hose (Standard & Technical Focus)
SAE 100R6 Hydraulic Hose – Oil & Low-Pressure Fluid Line
Size Range: 1/4" ~ 3/4" | Smooth or Wrapped Cover | Oil, Heat & Weather Resistant
Overview
The SAE 100R6 Hydraulic Hose is a flexible, lightweight, and high-quality hose designed for low-pressure hydraulic and fluid transfer systems. It is made from synthetic rubber materials for superior oil, fuel, and weather resistance, reinforced with one high-tensile textile braid for strength and flexibility.
This hose performs reliably in lubrication, return, and suction lines, making it ideal for machinery, vehicles, and industrial applications where space is limited but performance is essential.
Key Features
-
Durable Inner Tube: Synthetic rubber (NBR-based) provides strong resistance to petroleum oils and fuels.
-
High-Tensile Fiber Reinforcement: Single braid construction ensures flexibility and stable pressure performance.
-
Protective Outer Layer: Synthetic rubber cover resists oil, ozone, UV, and environmental aging.
-
Wide Temperature Range: Works from -40°C to +100°C (-40°F to +212°F).
-
Flexible Options: Available in smooth or wrapped cover finishes to suit different usage environments.
-
Meets SAE 100R6 Standard: Ensures compatibility with hydraulic fluids and equipment worldwide.
Applications
Commonly used for:
-
Hydraulic oil return and suction lines
-
Lubrication and fuel oil transfer
-
Air and water low-pressure lines
-
Agricultural machinery and industrial equipment
-
General fluid delivery under mild pressure
Technical Specifications
| Part No. | Size | I.D. (mm) | O.D. (mm) | Working Pressure | Burst Pressure | Bend Radius | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| PR6-04 | 1/4" | 6.5 | 12.6 | 2.8 MPa (405 PSI) | 11.2 MPa (1620 PSI) | 65 mm | 0.13 |
| PR6-05 | 5/16" | 8.0 | 15.0 | 2.8 MPa (405 PSI) | 11.2 MPa (1620 PSI) | 75 mm | 0.15 |
| PR6-06 | 3/8" | 9.8 | 16.0 | 2.8 MPa (405 PSI) | 11.2 MPa (1620 PSI) | 75 mm | 0.19 |
| PR6-08 | 1/2" | 12.8 | 21.0 | 2.8 MPa (405 PSI) | 11.2 MPa (1620 PSI) | 100 mm | 0.23 |
| PR6-10 | 5/8" | 16.0 | 24.0 | 2.4 MPa (350 PSI) | 9.6 MPa (1400 PSI) | 125 mm | 0.33 |
| PR6-12 | 3/4" | 19.0 | 29.5 | 2.1 MPa (300 PSI) | 8.4 MPa (1200 PSI) | 150 mm | 0.47 |
Construction Details
| Layer | Material | Key Properties |
|---|---|---|
| Inner Tube | Synthetic Rubber (NBR) | Excellent oil & fuel resistance |
| Reinforcement | One Braid High-Tensile Fiber | Flexible yet strong under pressure |
| Outer Cover | Oil & Weather Resistant Synthetic Rubber | Withstands UV, abrasion, and temperature extremes |
Conclusion
Looking for a reliable, lightweight, and durable hose for hydraulic oil return or fuel transfer?
The SAE 100R6 Hose is your dependable solution for consistent performance and long service life.
OEM branding and custom color options available

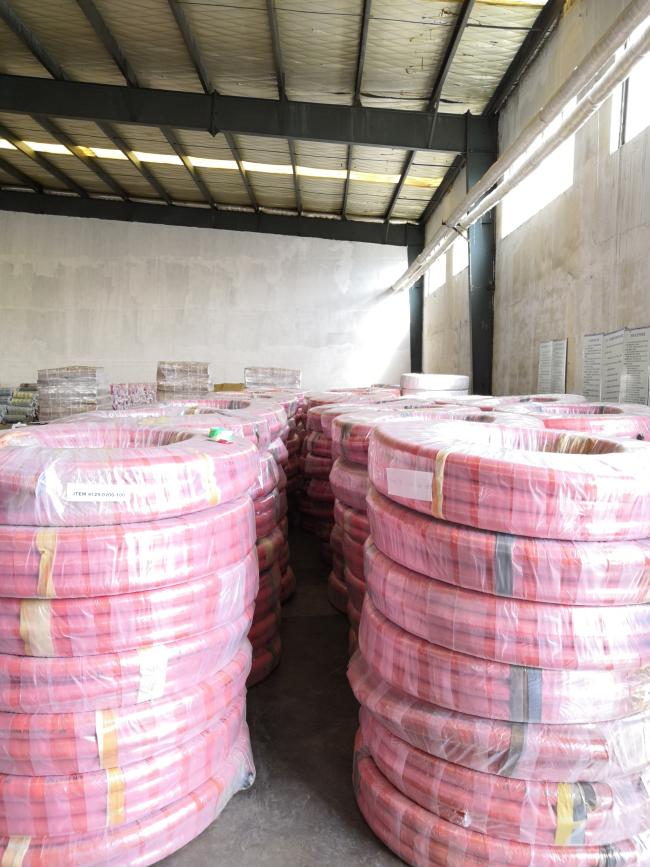

Export-safe packaging in coils or reels
Ready for quick shipment worldwide
