EN 853 2TE High Pressure Hydraulic Hose with High Tensile Strength, Flexibility, and Compatibility with Various Hydraulic Fluids
Price:
negotiation
MOQ:
500m
Delivery Time:
20 to 30 working days
Brand:
PASSIONCOHOSE
Product Description
EN 854 2TE Low Pressure Hydraulic Rubber Hose
The EN 854 2TE is a high-quality, textile-reinforced hydraulic hose designed for low to medium-pressure applications. It is widely recognized for its excellent flexibility and durability in demanding industrial environments.

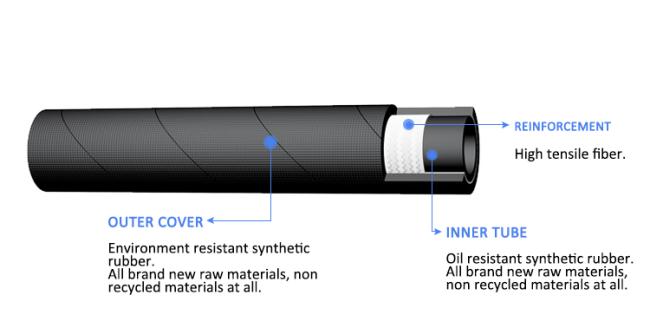

Construction & Specifications
- Inner Tube: Synthetic Rubber
- Outer Cover: Oil & Weather Resistant Synthetic Rubber
- Temp. Range: -40C ~ +100C (-40F ~ +212F)
- Standard: EN 854 2TE
- Reinforcement: One Braid of High Tensile Fiber
- Option: Smooth Cover / Wrapped Cover
Technical Specifications
| Part Number | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (MPa) | B.P. (MPa) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
| P2TE-03 | 3/16" | 5.0 | 11.8 | 8.0 | 32 | 35 |
| P2TE-04 | 1/4" | 6.5 | 13.0 | 7.5 | 30 | 40 |
| P2TE-05 | 5/16" | 8.0 | 14.6 | 6.8 | 27.2 | 50 |
| P2TE-06 | 3/8" | 9.8 | 16.5 | 6.3 | 25.2 | 60 |
| P2TE-08 | 1/2" | 12.8 | 19.8 | 5.8 | 23.2 | 70 |
| P2TE-10 | 5/8" | 16.0 | 23.9 | 5.0 | 20.0 | 90 |
| P2TE-12 | 3/4" | 19.0 | 26.4 | 4.5 | 18.0 | 110 |
| P2TE-16 | 1" | 25.4 | 33.8 | 4.0 | 16.0 | 150 |
Application Range
Application for EN 854 1TE/2TE/3TE
- This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
