1" Anti-Static Fuel Hose (Smooth Surface) Designed for Fuel Oil, Diesel, Gasoline, and Other Flammable Liquids

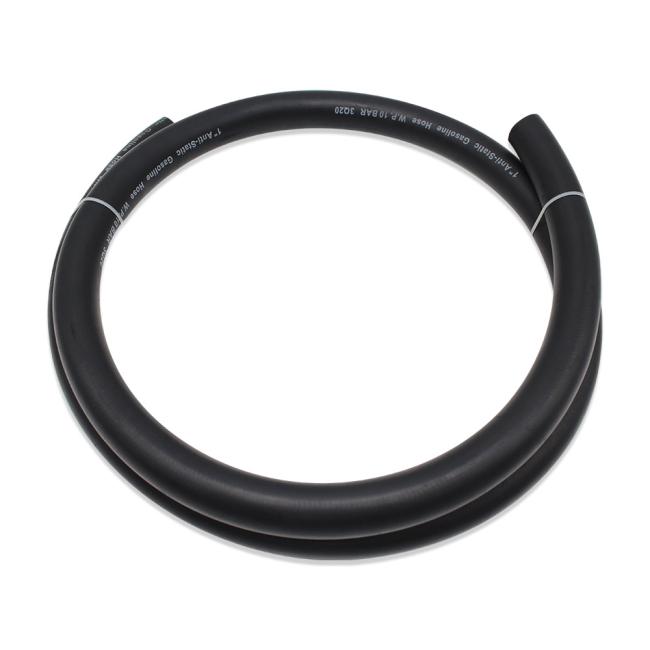

1" Anti-Static Gasoline Rubber Fuel Hose For Fuel Pumps

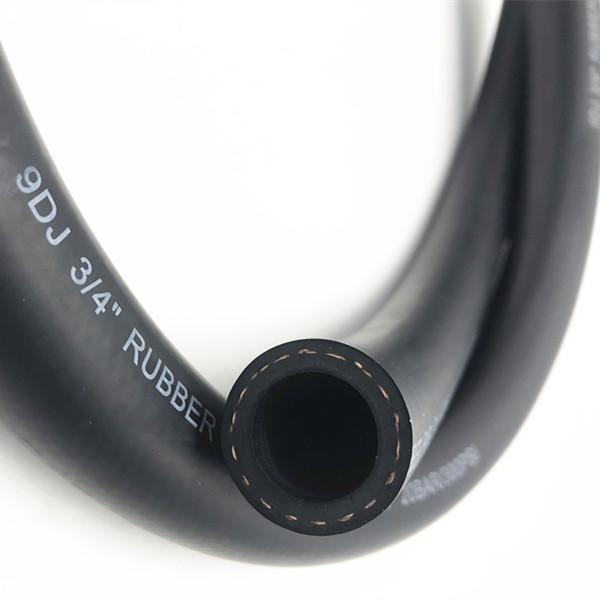

Construction - Tube: NBR
Reinforcement: High tensile polyester fiber braided.
Cover: NBR
Temperature: -30ºC to +100ºC
Color: Black, Red, Blue etc.
Application: Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.
Standard length:
50m, 100m.
Specification:
|
Inner Diameter |
Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| 3/16" | 5 | 11.5 | 20 | 300 | 60 | 900 | 100 | 0.028 | 0.15 |
| 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.031 | 0.17 |
| 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.0353 | 0.216 |
| 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 0.0442 | 0.24 |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 0.0756 | 0.428 |
| 5/8" | 16 | 25 | 20 | 300 | 60 | 900 | 50 | 0.0329 | 0.40 |
| 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 | 0.0572 | 0.60 |
| 1" | 25 | 36 | 20 | 300 | 60 | 900 | 50 | 0.099 | 0.84 |
| 1-1/4" | 32 | 43 | 10 | 150 | 30 | 450 | 50 | 0.170 | 1.20 |
| 1-1/2" | 38 | 50 | 10 | 150 | 30 | 450 | 50 | 0.190 | 1.39 |
| 2" | 51 | 65 | 10 | 150 | 30 | 450 | 50 | 0.410 | 1.80 |
About PAISHUN

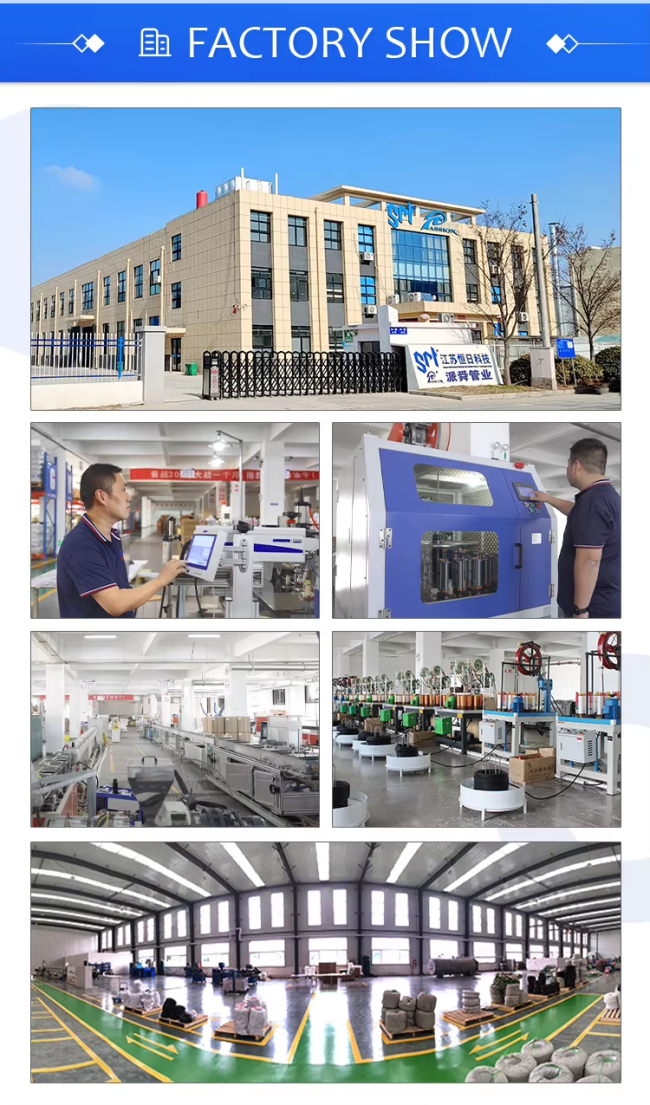

The factory covers a land of over 1.5 hectares, and the workshops occupy a surface of 7500 square meters. We own complete production lines for the rubber mixing process and cold feeding
The factory covers a land of over 1.5 hectares, and the workshops occupy a surface of 7500 square meters. We own complete production lines for the rubber mixing process, cold feeding, material extrusion process, microwave vulcanization process, and high-speed braiding process, etc.
We mainly produce industrial hoses such as air hoses, water hoses, welding hoses, hydraulic hoses, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, has a yearly production capacity of 10 million meters
