I.D. 1 / 4" Hydraulic Hose Pipe , Weatherhead Hydraulic Hose 3270 PSI
I.D. 1/4" Hydraulic Hose Pipe in High Pressure 3270 PSI ( SAE 100 R1 AT / EN 853 1SN )
Description:
Construction:
Tube: NBR synthetic rubber.
Reinforcement: A single high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40 °C - +100 °C
Color: Black, Grey, Blue, etc.
Standard length:
100m, 50m, 40m, 20m.
Specifications:
|
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
R1-05 |
3/16 |
5.0 |
12.0 |
250 |
3630 |
1001 |
14520 |
100 |
0.0425 |
0.20 |
|
R1-06 |
1/4 |
6.4 |
14.0 |
225 |
3270 |
902 |
13080 |
100 |
0.0454 |
0.24 |
|
R1-08 |
5/16 |
8.0 |
15.1 |
215 |
3120 |
860 |
12480 |
100 |
0.0487 |
0.28 |
|
R1-10 |
3/8 |
10.0 |
17.5 |
180 |
2615 |
721 |
10460 |
100 |
0.0735 |
0.36 |
|
R1-13 |
1/2 |
12.5 |
20.0 |
160 |
2320 |
640 |
9280 |
100 |
0.0487 |
0.45 |
|
R1-16 |
5/8 |
16.0 |
24.0 |
130 |
1890 |
521 |
7560 |
50 |
0.0784 |
0.51 |
|
R1-19 |
3/4 |
19.0 |
28.0 |
105 |
1530 |
422 |
6120 |
50 |
0.0686 |
0.65 |
|
R1-25 |
1 |
25.0 |
36.0 |
88 |
1280 |
353 |
5120 |
50 |
0.0949 |
0.96 |
|
R1-32 |
1 1/4 |
32.0 |
43.5 |
63 |
920 |
254 |
3680 |
20 |
0.121 |
1.25 |
|
R1-38 |
1 1/2 |
38.0 |
50.1 |
50 |
730 |
201 |
2920 |
20 |
0.1452 |
1.60 |
|
R1-51 |
2 |
51.0 |
63.6 |
40 |
580 |
160 |
2320 |
20 |
0.2197 |
2.20 |
Application:
Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.

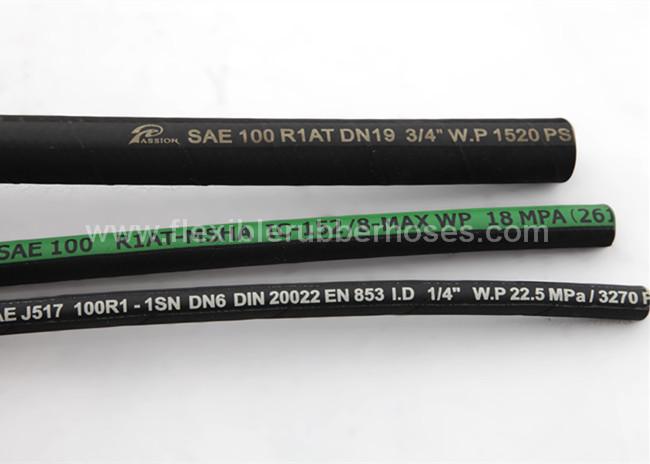

Printing on the Hydraulic Hose:

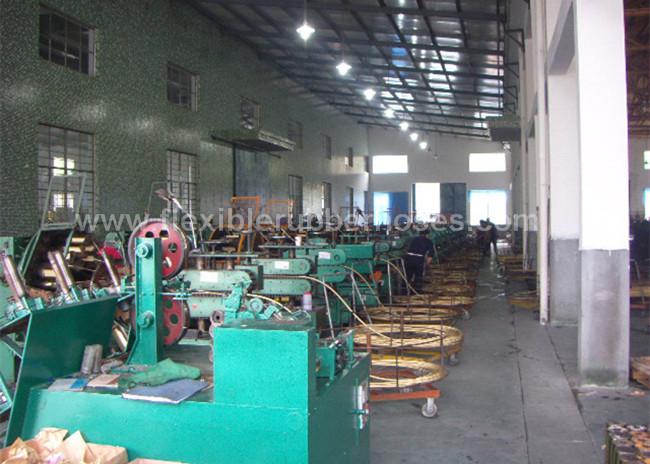

Planting of Hydraulic Hose:

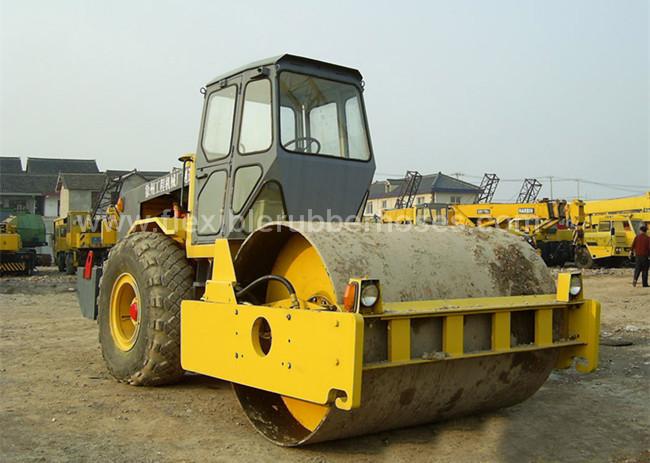

Application of Hydraulic Hose:
Competitive Advantage:
- We are professional manufacturer of rubber hose in China. It is excellent in quality and competitive in
price.
- The rubber material is without reclaimed rubber. The working time of our hydraulic hose is considerable.
We have testing machines of aging box, hardness tester, tensile tester, etc. The exact testing report can
be sent to our customers.
- We supply OEM, ODM according to customer’s requirement.
-The hydraulic hoses and fittings can be assembled in our factory.
- The hydraulic hoses R1 can be made in both smooth surface and cloth wrapped surface.
