87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI Flange For Oilfield , Mine Industriy ( 87691 )
Price:
Negotiated
MOQ:
500pcs
Delivery Time:
Within 20 to 30 days after we receive advance payment
Brand:
PASSION
Product Description
87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI Flange For Oilfield , Mine Industriy
Descrioption:

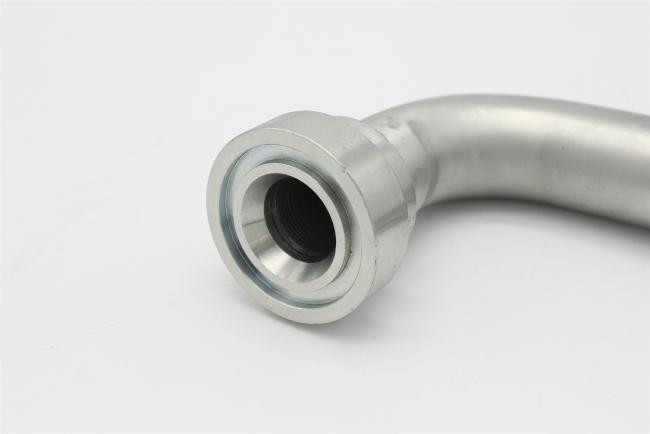

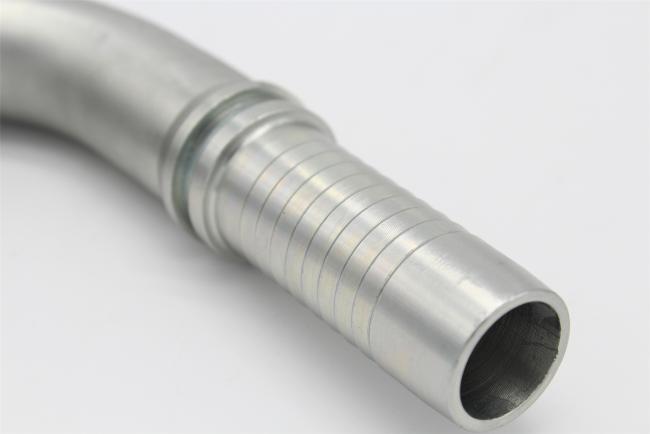

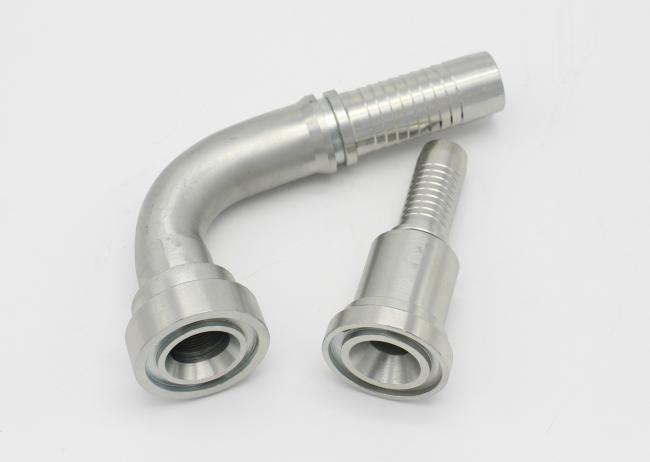

It is hydraulic hose fitting 90 degree SAE Flange 87691.
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,
oilfield, mine, building, transportation and other industries.
Specifications:
90 DEGREE SAE FLANGE 6000PSI ISO 12151-3-SAE J516
| Part No. | FLANG SIZE | Hose Bore | Dimensions | |||||
| DN | DASH | A | C | D | H | L | ||
| 87691-08-08 | 1/2" | 12 | 08 | 41 | 31.7 | 24 | 48 | 7.75 |
| 87691-12-10 | 3/4" | 16 | 10 | 56 | 41.3 | 32 | 56.5 | 8.76 |
| 87691-12-12 | 3/4" | 20 | 12 | 65.5 | 41.3 | 32 | 66 | 8.76 |
| 89691-16-12 | 1" | 20 | 12 | 65.5 | 47.6 | 38 | 69 | 9.53 |
| 87691-16-16 | 1" | 25 | 16 | 76.7 | 47.6 | 38 | 74.5 | 9.53 |
| 87691-16-20 | 1" | 32 | 20 | 91.5 | 47.6 | 38 | 85.5 | 9.53 |
| 87691-20-16 | 1.1/4" | 25 | 16 | 76.7 | 54 | 44 | 78.5 | 10.29 |
| 87691-20-20 | 1.1/4" | 32 | 20 | 91.5 | 54 | 44 | 89.5 | 10.29 |
| 87691-24-20 | 1.1/2" | 32 | 20 | 91.5 | 63.5 | 51 | 94.5 | 12.57 |
| 87691-24-24 | 1.1/2" | 40 | 24 | 109.4 | 63.5 | 51 | 108 | 12.57 |
| 87691-32-24 | 2" | 40 | 24 | 109.4 | 79.4 | 67 | 116 | 12.57 |
| 87691-32-32 | 2" | 50 | 32 | 131.8 | 79.4 | 67 | 136.3 | 12.57 |
Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 87692-**-**.
It is hydraulic hose fittings SAE Flange in silver color.
