Stainless Steel PTFE Braided Hose , 3 / 8" Braided Hose
Stainless Steel PTFE Braided Hose , 3 / 8" Braided Hose.
Description:
Among The Sizes (1/8''-1''), customers may need to pay attention to the size-1/4''.
For the size-1/4'', the I.D represents both 6.5mm I.D and 6mm I.D. Normally, Chinese customers buy 6mm I.D, and for exporting, customers buy 6.5mm I.D.
If you need 1/4'', please let us know do you need 6mm I.D or 6.5mm I.D?
Stainless Steel Braided Smoothbore Flexible PTFE Lined Hose
Construction: Tube: Imported PTFE Material.
Cover: SS304 braided.
Temperature: -50℃ to +260℃
Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc

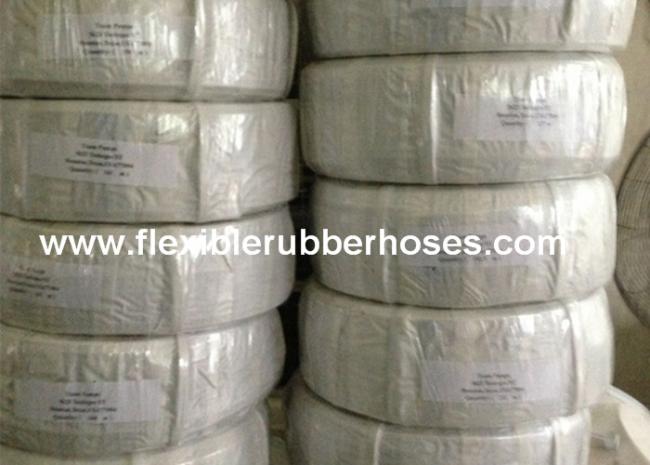

Standard length: 100m (Random Length).
Specifications
|
Material |
Temperature chemical resistant PTFE material. +304 Stainless Steel Braided |
|
Temperature |
-50C-260C |
|
I.D(inch) |
1/8’’-1’’ |
|
I.D 1/8inch |

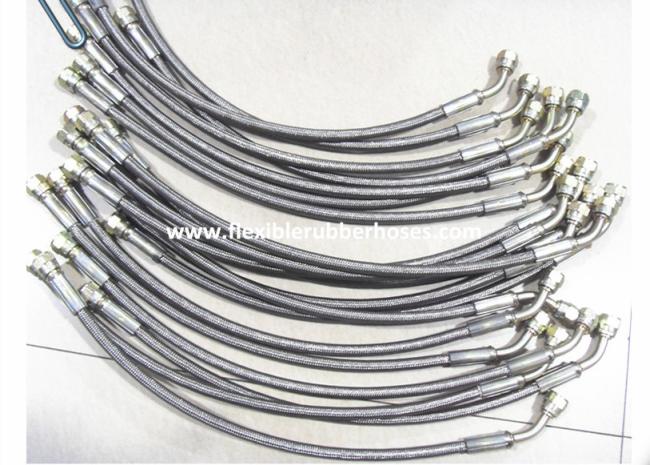

Specially used as brake hose. |
|
I.D*O.D(mm) |
6.0*8.7-25.0*29.5 |
|
W.P |
179.5BAR-48.8BAR |
|
B.P |
718BAR-195BAR |
|
Length/roll(m) |
>50 |
|
Application |
Used on Mechanical hydraulic system in Shipping Industry, Auto Industry and Ocean Industry. |
|
Type |
Smooth Surface and Corrguated Surface |
|
Type |
Imported PTFE Material and Made in China PTFE Material. |
Sizes List
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Weight |
|
|
inch |
mm |
mm |
bar |
bar |
m |
kg/m |
|
|
PPT-02 |
1/8" |
3.5 |
6.2 |
314 |
1080 |
100 |
0.07 |
|
PPT-03 |
3/16" |
5.0 |
7.7 |
256 |
752 |
100 |
0.09 |
| PPT-04 | 1/4'' | 6.0 | 8.7 | 240 | 718 | 100 | 0.10 |
|
PPT-04 |
1/4" |
6.5 |
9.3 |
232 |
644 |
100 |
0.11 |
|
PPT-05 |
5/16" |
8.0 |
10.8 |
180 |
504 |
100 |
0.15 |
|
PPT-06 |
3/8" |
10.0 |
12.7 |
152 |
426 |
100 |
0.17 |
|
PPT-08 |
1/2" |
13.0 |
16.3 |
90 |
270 |
100 |
0.31 |
|
PPT-10 |
5/8" |
16.3 |
19.3 |
80 |
240 |
50 |
0.47 |
|
PPT-12 |
3/4" |
19.0 |
22.3 |
70 |
196 |
50 |
0.57 |
|
PPT-14 |
7/8" |
22.5 |
25.8 |
60 |
175 |
50 |
0.7 |
|
PPT-16 |
1" |
25.4 |
29.8 |
50 |
150 |
50 |
0.8 |
*The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please don’t include the Stainless Steel.
*The Hose is tested when the Hose is under condition of rest.
*Temperature-Pressure:
20C---------P
100C-------0.43P
150C----------0.3P
200C------------0.22P
220C--------------0.2P
For more detailed information, please contact us.
