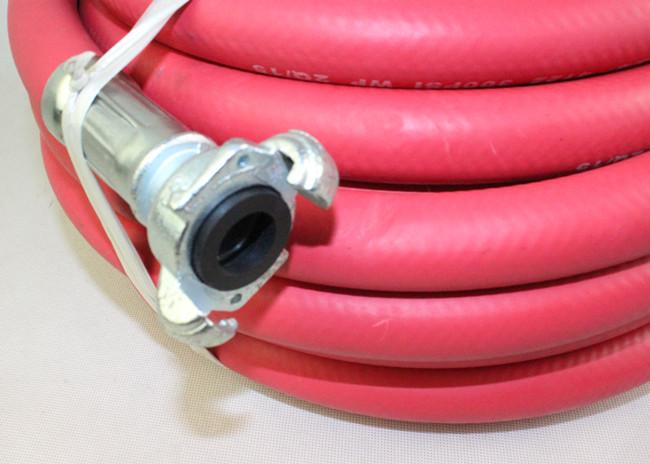

ID 19mm x 50 ft Rubber Air Hose for Rock Drilling , Coiled Air Hose for USA market
ID 19mm x 50 ft Rubber Air Hose for Rock Drilling
Hose Structure: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR or EPDM synthetic rubber.
Application: Rock Drilling, Mini Jack Hammer. Mainly used for building site and road construction.
Temperature: -30℃ - +70℃
Color: Red, Yellow, etc.
Standard length: 50ft (15m)
Specification of hose:
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
ft/pc |
kg/pc |
|
|
HPR1 |
3/4" |
19 |
29 |
17 |
250 |
50 |
750 |
50 |
10 |
Specification of fittings:
CRIMPED W/HOSE ENDS;
BANDED W/HOSE ENDS (C/W Safety Clamp)
Competitive Advantage:
PASSION® Rubber JACKHAMMER hose, is popular in USA, Canada market, made of non-recycled rubber, according to ISO-2398 standard.
Hangzhou Paishun is ISO 9001-2008 certified, can crimp the specified fittings and quick released coupling on the rubber air hose.
If you have some special request of size, Hangzhou Paishun can also customize for you.
