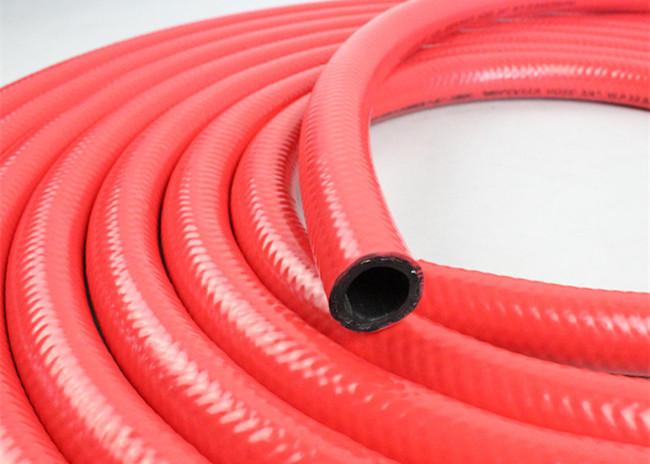

Red / Black Fuel Dispensing Hose , 30 bar Pressure braided fuel hose

Structure: Tube: NBR

Reinforcement: Single High-strength wire braided.

Cover: EPDM

Temperature: -40℃ to +100℃

Color: Black, Blue, Red and Green etc

Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.

Standard length: 20m, 50m (Random Length)

Technical information of Paishun's Fuel Dispenser Hose

Rubber Content of "Paishun's Hose": The NBR Content of Hose Inner Tube is 42% and 40% in Hose Outer Tube. The High NBR Material Content makes the Hose has excellent "permeability", so the Hose is able to not " bulge" even being immersed in High grade gasoline after 72 hours.

The Electrical Conductivity of Hose Assembly: When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, to make sure the Hose has "stable conducting electrostatic property", we test the " Hose Electrical Conductivity" with Ammeter.

Pressure Test: Every batch Hose will be tested under the Test Pressure (10times higher than the Hose's W.P.) and keeps at least 3 minutes, this is to avoid any invisible holes appear on Hose.

The Wire we use: The tensile strength of Single Wire we use is 2750 Newton high strength wire, the wire diameter is 0.295mm.
