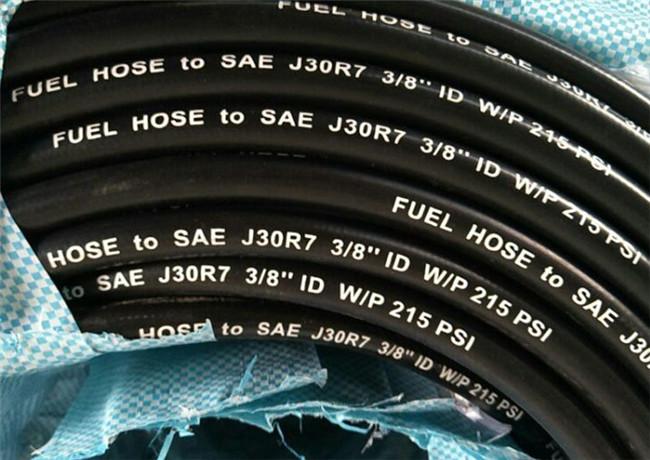

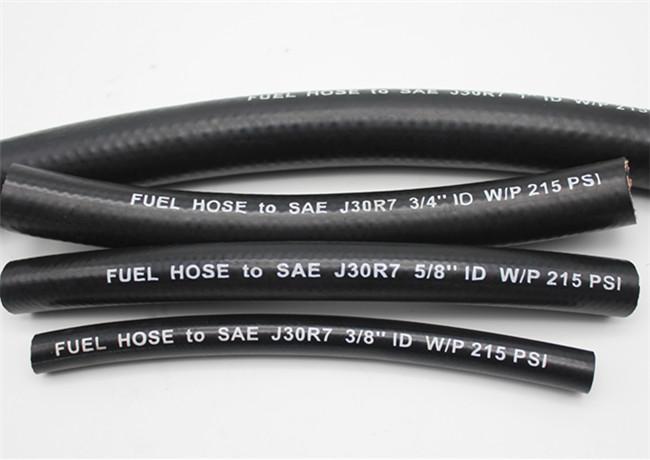

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m/roll | cbm/roll | kg/m |
| 3/16" | 5 | 11.5 | 20 | 300 | 60 | 900 | 100 | 0.028 | 0.15 |
| 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.031 | 0.17 |
| 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.0353 | 0.216 |
| 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 0.0442 | 0.24 |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 0.0756 | 0.428 |
Specifications:
Description:
1, Construction: Tube: Smooth Black Fuel Resistant nitrile synthetic rubber
Reinforcement: High tensile polyester fiber braided.
Cover: Smooth Black Ozone and Abrasion Resistant nitrile synthetic rubber
2, Appearance: Smooth finish, Black
3, Applicable temperature: -30℃ to +100℃
4, Bend radius: 10 times of proper diameter dimension
5, Package: Common packed by OPP transparent film and woven stripes wrapped
The pallet and woven bag packing are available, the color sticker can be offerd,
but shall be charged additionally.
6, Trademark: PASSION, OEM is available
7, Property: Good oil resistance and excellent flexibility. Without craze crack or fracture after 180°bending over or doubling
8, Certificates: CE, SGS
9, Main market: Middle East, Europe and America
10: Joint Connection: Customized as your request
Applications:
It is applied to transfer of unleaded, leaded, diesel & E10 fuels.
Competitive Advantage:
Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China.
8 years manufacturing experience, 50 sets of braiders and 3 production lines.
Paishun has a strict quality inspection team, every shipment would be tested before shipment.
Free sample can be offered, we are happy to customize as your request.
Cooperative Brands:
WELDMAN, Max Weld, SAEFLEX, BALFLEX
Paishun's Slogan:
PASSION FOR HOSE! PASSION FOR YOU!
