1 Inch Industrial Two Layers Polyester Fiber Braided Rubber Air Hose WP 20 bar 300 psi
1 Inch WP 20 bar 300 psi Industrial Rubber Two Layers Polyester Fiber Braided Rubber Air Hose
If you need other sizes or specification, please let us know.
We can customize for you!
Detail Information of Product
| Name | Smooth Rubber Air Hose |
| Material | NR or SBR |
| Size | 1" |
| Color | Black, Red, Yellow, Blue, Green, Orange, etc. |
| Inner Tube | NR or SBR synthetic rubber |
| Reinforcement | Two Layers High Tensile polyester fiber braided |
| Cover Compound | NR or SBR synthetic rubber |
| Temperature Range | -30℃~+80℃ |
| Application | Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc. |
| Certification | CE approved |
| Length | 50m, 100m. |
| Capability | Transfering low temperature air. |
| OEM Accepted | Yes |
| Fitting | We can provide as your requirement. |
| Printing Word | We can print LOGO or something else as your requirement. |
| Packaging Detail | We pack the goods with poly stripes or as your request. |
| Delivery | According to your quantity, about 30 days for a 20' container. |
Specification of Product
| Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |
| inch | mm | mm | bar | bar | m | cbm/roll | kg/m | |
| PRA-05 | 3/16" | 5 | 11.5 | 20 | 60 | 100 | 0.02 | 0.15 |
| PRA-06 | 1/4" | 6 | 13 | 20 | 60 | 100 | 0.025 | 0.17 |
| PRA-08 | 5/16" | 8 | 15 | 20 | 60 | 100 | 0.03 | 0.22 |
| PRA-10 | 3/8" | 10 | 17 | 20 | 60 | 100 | 0.04 | 0.26 |
| PRA-13 | 1/2" | 13 | 21 | 20 | 60 | 100 | 0.07 | 0.4 |
| PRA-16 | 5/8" | 16 | 24 | 20 | 60 | 50 | 0.06 | 0.45 |
| PRA-19 | 3/4" | 19 | 29 | 20 | 60 | 50 | 0.07 | 0.7 |
| PRA-25 | 1" (1b) | 25 | 36 | 12 | 36 | 50 | 0.09 | 0.85 |
| PRA-25-2 | 1" (2b) | 25 | 37 | 20 | 60 | 50 | 0.1 | 0.95 |

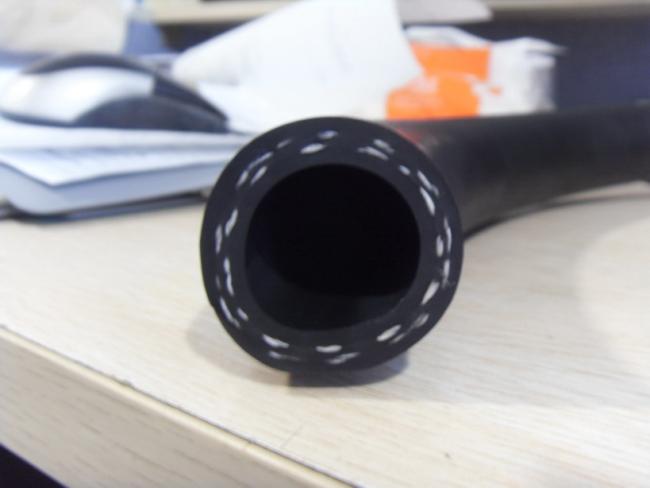

Picture of Product

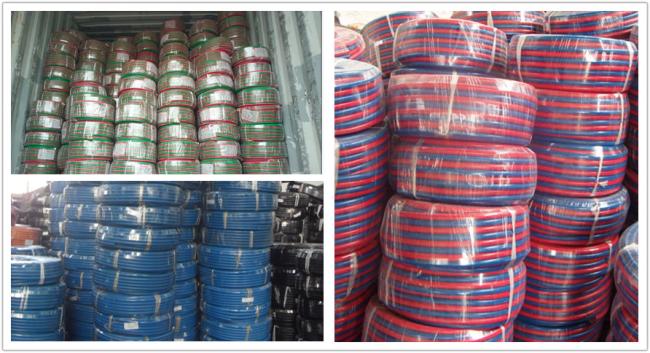

Picture of Packing

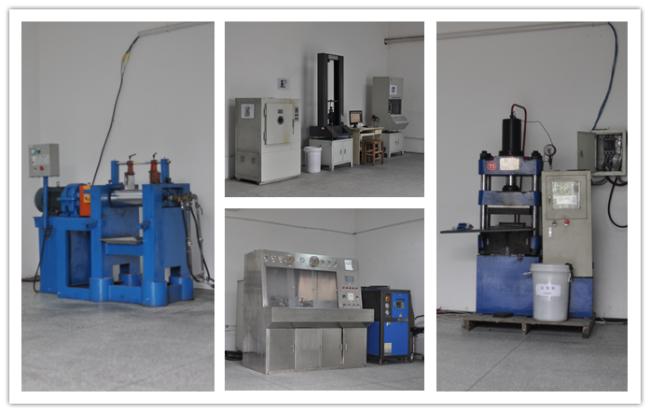

Test Machines
Competitive Advantage
1. Professional manufacturer for over 10 years.
2. We can provide free hose sample.
3. Hydraulic rubber hose is also served.
4. Other sizes can be customized.
5. We can print words and your logo on the hose as your request.
6. We can package the goods as your request.
7, We test the products before shipped out. We have complete line of test machines.
