SAE 100R3 Double Textile Braid Reinforced Rubber Hose 600 psi for Air , Water , Petroleum
Price:
USD 0.62 ~ 4.65 per meter
MOQ:
500 meters
Delivery Time:
Usually 30 days for a 20' container.
Brand:
PASSION
Product Description
SAE 100R3 Double textile Braid Reinforced Rubber Hose 1 in 600 psi for Air, Water, Petroleum
This hydraulic rubber hose 100R3 can also used to deliver air, water or fuel according to your usage.
Detail Information of Product
| Name | SAE 100R3 |
| Material | NBR |
| Certification | CE approved. |
| Size | 3/16"~1-1/2" |
| Color | Black |
| Temperature range | -40ºC~+100ºC |
| Reinforcement | Two textile braids |
| Capability/Feature | Oil resistant, abrasion resistant, anti-aging. |
| Length | 100m or 50m per roll. |
| Telerance | 0.05mm |
| Application | A low pressure, textile reinforced hose for petroleum or water based hydraulic fluids or pneumatic applications. For conveying air, water. Not to be used for air brake. |
| Package | Well packed by poly stripes or as your requirement. |
| Delivery | According to your quantity, generally speaking, 35 days for a 20' container. |
Specification of Product
| SIZE | I.D | O.D | W.P | B.P | Min Bend Radius | Weight | |
| Part Number | mm | mm | mm | bar/psi | bar/psi | mm | g/m |
| P03-R3 | 3/16″ | 4.8 | 13 | 103/1495 | 412/5974 | 80 | 150 |
| P04-R3 | 1/4″ | 6.4 | 14.8 | 86/1247 | 344/4988 | 80 | 180 |
| P05-R3 | 5/16″ | 8 | 18 | 83/1204 | 332/4814 | 100 | 265 |
| P06-R3 | 3/8″ | 9.5 | 19.5 | 78/1131 | 312/4524 | 100 | 300 |
| P08-R3 | 1/2″ | 12.7 | 23.8 | 69/1000 | 276/4002 | 125 | 425 |
| P10-R3 | 5/8″ | 16 | 27.2 | 60/870 | 240/3480 | 140 | 490 |
| P12-R3 | 3/4″ | 19 | 31.8 | 52/754 | 208/3016 | 150 | 685 |
| P16-R3 | 1″ | 25.4 | 38.1 | 39/566 | 156/2262 | 205 | 845 |
| P20-R3 | 1 1/4″ | 31.8 | 44.5 | 26/377 | 104/1508 | 255 | 985 |
| P24-R3 | 1 1/2″ | 38.1 | 51 | 20/290 | 80/1160 | 295 | 1160 |

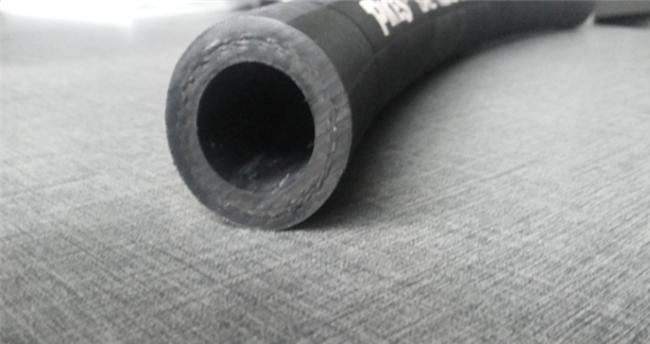

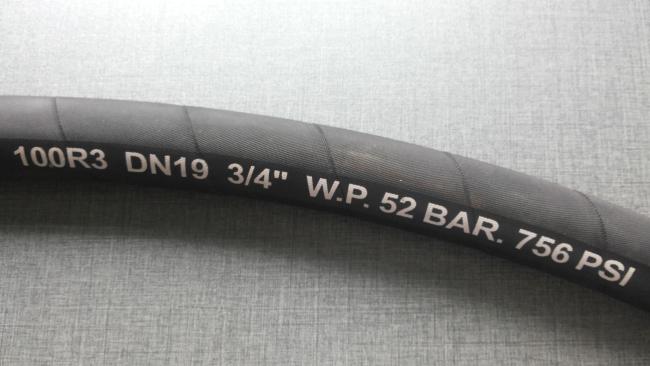

Picture of Product
Competitive Advantage
1. Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
2. Free hose sample.
3. OEM accepted.
4. We can print words and your logo on the hose as your request.
5. We can package the goods as your request.
6, We test the products before shipped out. We have complete line of test machines.
PASSION FOR HOSE, PASSION FOR YOU!
