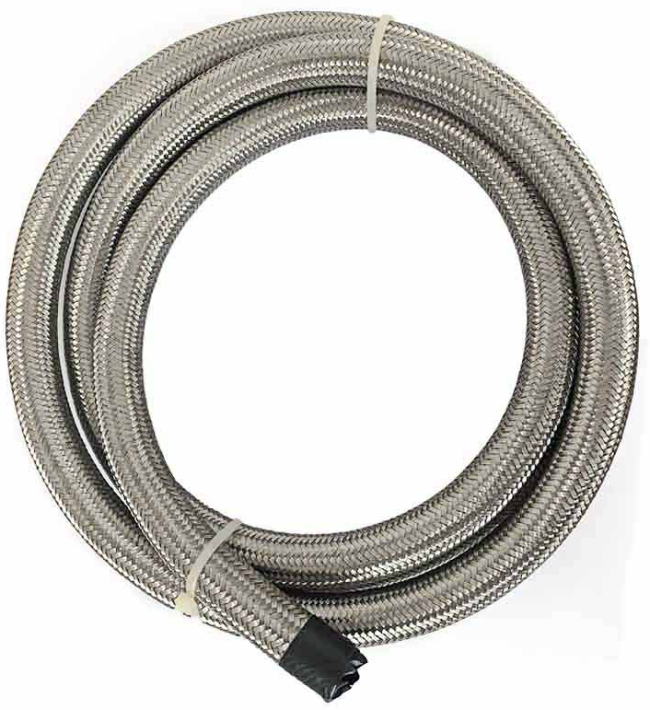

AN4 / AN 6 Braided Rubber Fuel Hose for Automotive , Stainless Steel Outer
AN4 / AN 6 Braided Rubber Fuel Hose for Automotive , Stainless Steel Outer
Structure: Tube: Pure rubber tube. It can be designed as to be Oil / Fuel / Gasoline resistant hoses according to the requirements of application.
Reinforcement: High tensile polyester fiber braided.
Outer cover: Stainless steel wire, or Aluminium wire, or cotton threads, or polyester fiber lines, which is used for strengthening pressure or protection.
Temperature: -40℃ - +150℃, customized according to application.
Application: Mainly used for conveying of Gasoline / Fuel in Automotive Industry.

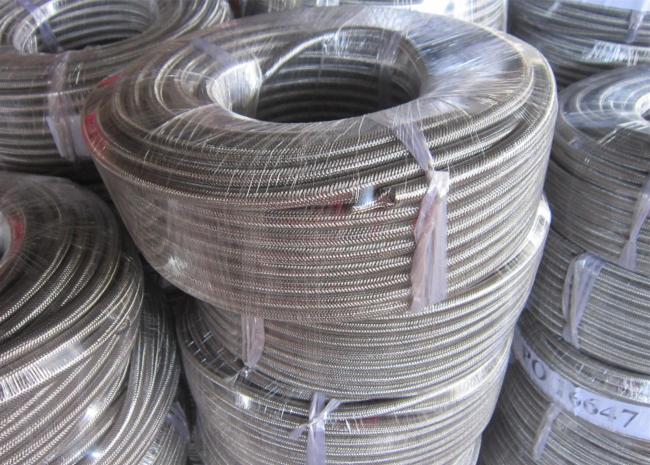

Standard length: 50m, 100m.
Specification of the inner hose:
| Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m | |
| PRA-06 | 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.0256 | 0.17 |
| PRA-08 | 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.0271 | 0.22 |
| PRA-10 | 3/8" | 10 | 17 | 20 | 60 | 60 | 900 | 100 | 0.036 | 0.26 |
| PRA-13 | 1/2" | 13 | 22 | 20 | 300 | 60 | 900 | 100 | 0.0634 | 0.4 |
| PRA-16 | 5/8" | 16 | 25 | 20 | 300 | 60 | 900 | 50 | 0.1095 | 0.45 |
| PRA-19 | 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 | 0.146 | 0.7 |
| PRA-25 | 1" | 25 | 36 | 20 | 300 | 60 | 900 | 50 | 0.171 | 0.85 |
Note: The inner hose can also be Pure rubber tube without fiber braided reinforcement.
If the specifications you need are not in the list, please offer your specification parameters or operating requirements. We’ll check and customize.
Main Market: North America
