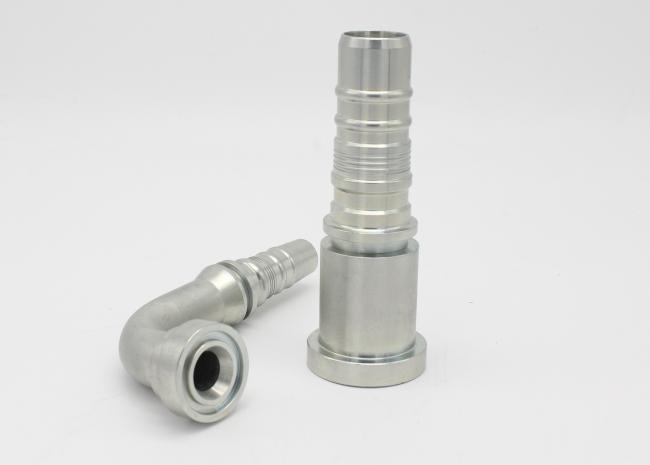

High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock
Straight SUPERCAT Flange 9000 PSI , Interlock Hose Fitting , Very high pressure Hose Fitting
Descrioption:
Supercat Flange, 9000 PSI
Technology: Hot forging
Material: carbon steel 45# or Stainless steel 304/316
Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
It passes a 96 h salt spray test in accordance with ASTM B 117.
Packaging: cartons and non-fumigation wooden box.
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,
oilfield, mine, building, transportation and other industries.
Specifications:
SAE FLANGE 9000 PSI
87913
| Part No. | Thread E | Hose Bore | Dimensions | ||||
| DN | DASH | A | C | D | L | ||
| 87913-12-12 | 3/4" | 20 | 12 | 58.5 | 41.3 | 32 | 14.3 |
| 87913-16-12 | 1" | 20 | 12 | 63 | 47.6 | 38 | 14.3 |
| 87913-16-16 | 1" | 25 | 16 | 64.4 | 47.6 | 38 | 14.3 |
| 87913-20-16 | 1.1/4" | 25 | 16 | 6.8 | 54 | 43 | 14.3 |
| 87913-20-20 | 1.1/4" | 32 | 20 | 73.8 | 54 | 43 | 14.3 |
| 87913-24-20 | 1.1/2" | 32 | 20 | 80.6 | 63.5 | 51 | 14.3 |
| 87913-24-24 | 1.1/2" | 40 | 24 | 80.7 | 63.5 | 51 | 14.3 |
It is high pressure hose Flange
Packageing: Well packed by cartons and free fumigating wooden box.
Strong Packaging of Hydraulic Hose Fitting from PAISHUN
All fittings are with PVC plastic caps and plugs to protect against Dust.
All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.
In order to guarantee that even in worst sea / maritime weather/transport conditions,
the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.
Normal Measure:
Carton:24cm X 24cm X 16cm
Wooden box: 110cm X 85cm X 75cm
Usually 42 cartons can be packed in a wooden box.
Surely we can be customized the measure according to your request.
