304 Stainless Hydraulic Hose Fitting Ferrule For One Or Two Wires Braided Hose
Price:
Negotiated
MOQ:
300pcs
Delivery Time:
Within 20 to 30 days after we receive advance payment
Brand:
PASSION
Product Description

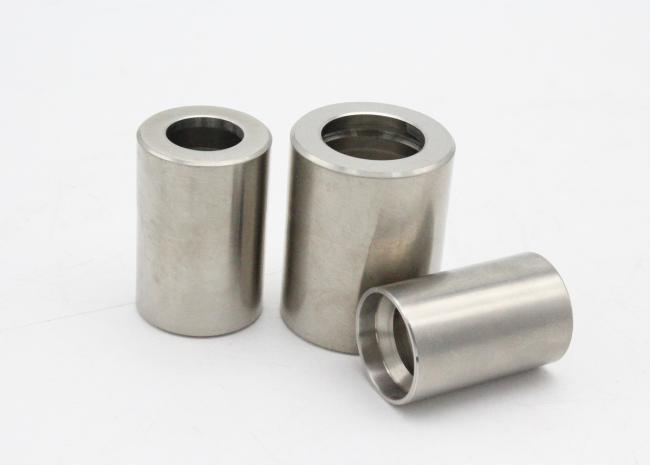

304 Stainless Steel Hydraulic Hose Fitting Ferrule for One or Two Wires Braided Hose
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,
oilfield, mine, building, transportation and other industries.
Standard: Yonghua
Technology: Hot forge
Material: Stainless steel 304
Specifications:
FERRULE FOR SAE 100 R2AT / DIN EN 853 2SN / SAE 100R3 HOSE
| Part No. | Hose Bore | Dimensions (L) | |
| DN | Dash | ||
| 00210-03 | 5 | 03 | 27 |
| 00210-04 | 6 | 04 | 30 |
| 00210-05 | 8 | 05 | 31 |
| 00210-06 | 10 | 06 | 32 |
| 00210-08 | 12 | 08 | 34 |
| 00210-10 | 16 | 10 | 37 |
| 00210-12 | 20 | 12 | 43 |
| 00210-16 | 25 | 16 | 50 |
| 00210-20 | 32 | 20 | 59 |
| 00210-24 | 40 | 24 | 74 |
| 00210-32 | 50 | 32 | 78 |
