1/4" Textile Cover Wired Braided High Pressure Hydraulic Hose SAE 100 R5
Price:
Negotiation
MOQ:
500 meters
Delivery Time:
300,000 meter per month
Brand:
PASSION
Product Description

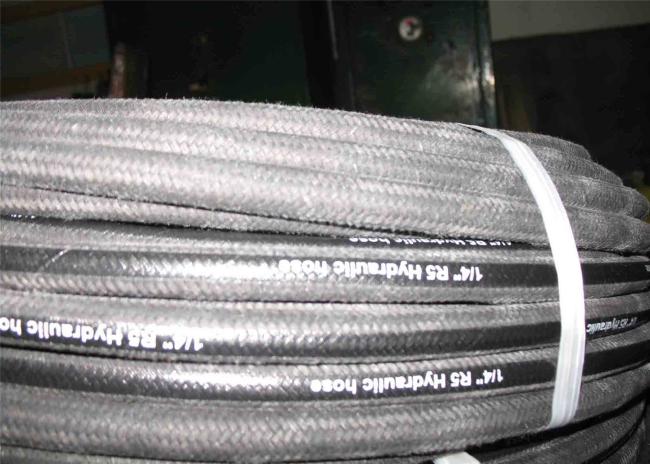

1/4" Textile Cover High Pressure Hydraulic Hose SAE 100 R5
Application: General purpose, medium pressure applications including petroleum-based hydraulic
oil, air and water for use in air brakes, power steering, turbo oil lines, tilt cab cylinders,
transmission coolant and filtration lines.
Inner Tube: Nitrile
Reinforcement: One braid of high-tensile steel wire
Cover Compound: Impregnated textile braid
Temperature Range: -40C ~ +100C
Specification:
| part | In | Hose Size ID DIN Dash Size | Hose OD | Max.Working pressure | Min.Bend Radius | Min..Burst pressure | Weight | ||||
| in | mm | psi | mpa | in | mm | psi | mpa | (ibs/foot) | |||
| GR5-04 | 3/16 | 4.8MM | 0.52 | 13.2 | 3000 | 20.7 | 3 | 76 | 12000 | 82.7 | 0.1481 |
| GR5-05 | 1/4 | 6.4MM | 0.583 | 14.8 | 3000 | 20.7 | 3.38 | 86 | 12000 | 82.7 | 0.1802 |
| GR5-06 | 5/16 | 7.9MM | 0.675 | 17.1 | 2250 | 15.5 | 4 | 102 | 9000 | 62.1 | 0.2224 |
| GR5-08 | 13/32 | 10.3MM | 0.766 | 19.5 | 2000 | 13.8 | 4.62 | 117 | 8000 | 55.2 | 0.2982 |
| GR5-10 | 1/2 | 12.7MM | 0.921 | 23.4 | 1750 | 12.1 | 5.5 | 140 | 7000 | 48.3 | 0.3692 |
| GR5-12 | 5/8 | 15.9MM | 1.079 | 27.4 | 1500 | 10.3 | 6.5 | 165 | 6000 | 41.4 | 0.4482 |
| GR5-16 | 7/8 | 22.2MM | 1.236 | 31.4 | 800 | 5.5 | 7.38 | 187 | 3200 | 22.1 | 0.4744 |
| GR5-20 | 1 3/8 | 28.6MM | 1.5 | 38.1 | 625 | 4.3 | 9 | 229 | 2500 | 17.2 | 0.5842 |
| GR5-24 | 1 5/8 | 35MM | 1.75 | 44.4 | 500 | 3.4 | 10.5 | 267 | 2000 | 13.8 | 0.7296 |
| GR5-32 | 7 1/16 | 46MM | 2.22 | 56.4 | 350 | 2.4 | 13.25 | 337 | 1400 | 9.7 | 0.9025 |
Available Hose Ends / Fittings:

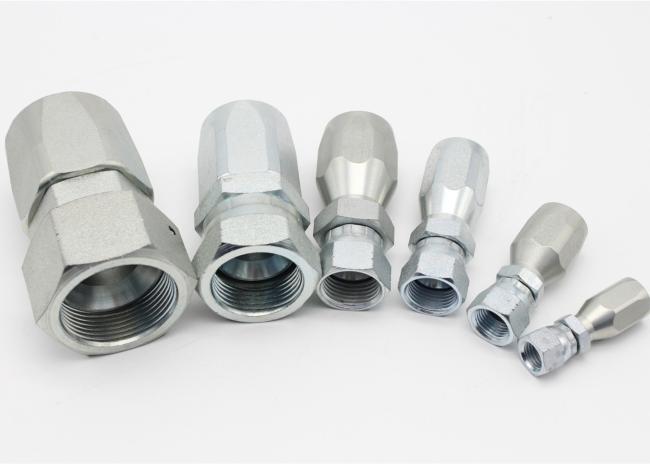

Reusable Hose Fitting:
