1/4" Hydraulic Rubber Hose SAE 100R1 One Single High Tensile Steel Wire Braided

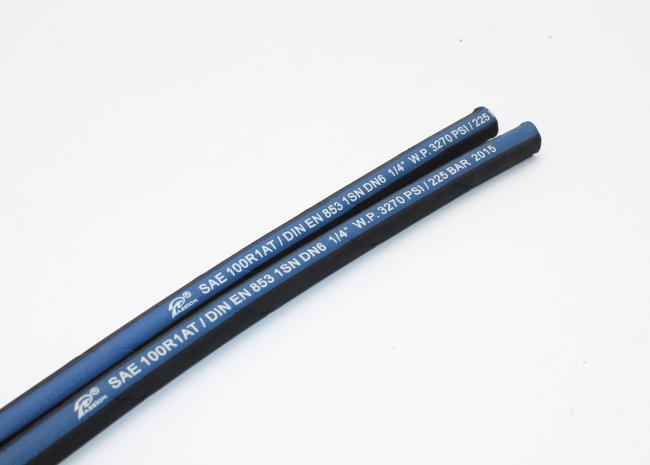

1/4" Hydraulic Hose SAE 100R1 with One Single High-tensile Steel Wire Braided
Description:
Standard: SAE J517 100R1 AT
Construction
Tube: NBR synthetic rubber.
Reinforcement: A single high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.
Standard length: 100m/roll
Crimped Fitting: 00110 ferrule and 1 serious crimping fitting.
Specifications:
One Wire Braided Reinforced Hydraulic Rubber Hose
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m | |
| R1-05 | 3/16 | 5.0 | 12.0 | 250 | 3630 | 1001 | 14520 | 100 | 0.0425 | 0.20 |
| R1-06 | 1/4 | 6.4 | 13.5 | 225 | 3270 | 900 | 13080 | 100 | 0.0454 | 0.24 |
| R1-08 | 5/16 | 8.0 | 15.1 | 215 | 3120 | 860 | 12480 | 100 | 0.0487 | 0.28 |
| R1-10 | 3/8 | 10.0 | 17.5 | 180 | 2615 | 721 | 10460 | 100 | 0.0735 | 0.36 |
| R1-13 | 1/2 | 12.5 | 20.0 | 160 | 2320 | 640 | 9280 | 100 | 0.0487 | 0.45 |
| R1-16 | 5/8 | 16.0 | 24.0 | 130 | 1890 | 521 | 7560 | 50 | 0.0784 | 0.51 |
| R1-19 | 3/4 | 19.0 | 28.0 | 105 | 1530 | 422 | 6120 | 50 | 0.0686 | 0.65 |
| R1-25 | 1 | 25.0 | 36.0 | 88 | 1280 | 353 | 5120 | 50 | 0.0949 | 0.96 |
| R1-32 | 1 1/4 | 32.0 | 43.5 | 63 | 920 | 254 | 3680 | 20 | 0.121 | 1.25 |
| R1-38 | 1 1/2 | 38.0 | 50.1 | 50 | 730 | 201 | 2920 | 20 | 0.1452 | 1.60 |
| R1-51 | 2 | 51.0 | 63.6 | 40 | 580 | 160 | 2320 | 20 | 0.2197 |
2.20 |
Details:

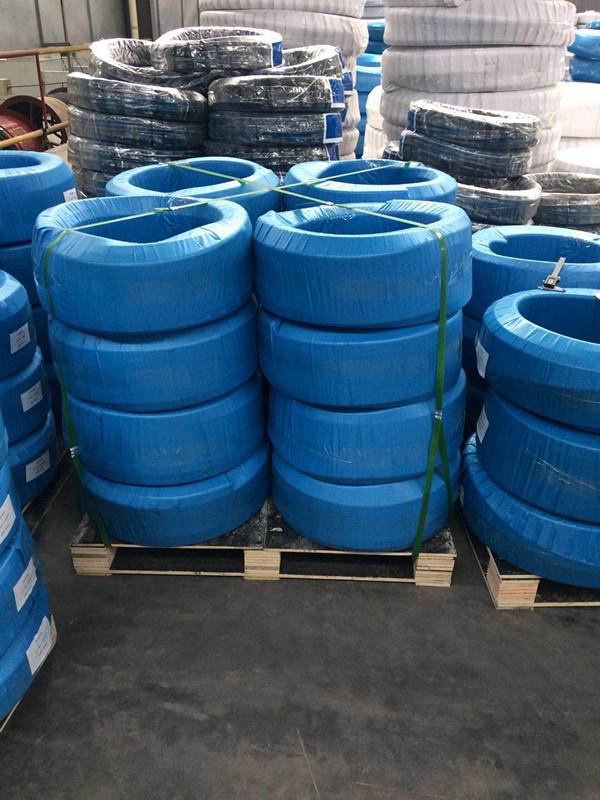

Packed
Competitive Advantage:
It is made according to SAE J517 / DIN EN 853 standard.
We have several ways of hydraulic hose packaging for our customers:
- Colorful poly stripes (normal packing)
- reel
- customized carton hose assembly
- customized PE bag for hose assembly
- packed with pallets
We supply OEM, ODM according to customer’s requirement.
The hydraulic hoses and fittings can be assembled in our factory.
The hydraulic hoses R1 and R2 can be made in the smooth surface.
We also supply hose protector for our customers.
