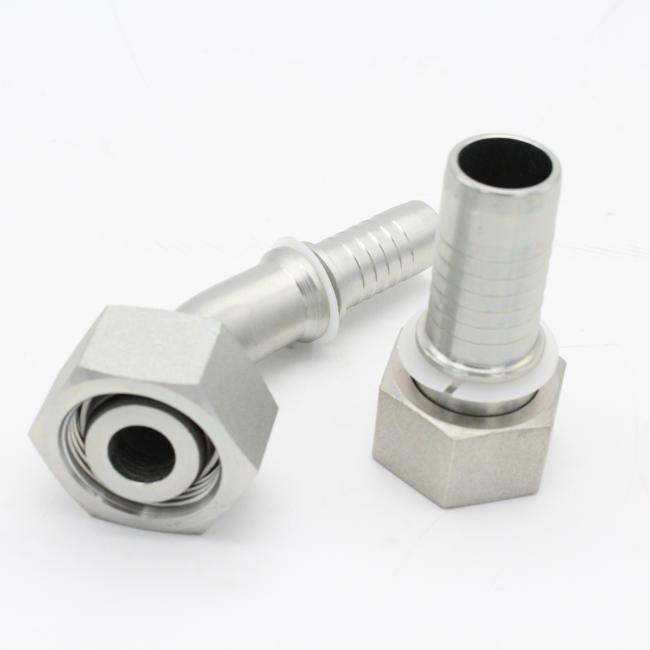

45 Degree Elbow Metric Female Braided Hose Fitting Hydraulic Hose Connection
45 Degree Elbow Metric Female High Pressure Hydraulic Hose Connection
Applications:
High pressure hose connector is widely used in the hydraulic and fluid conveying system of machinery,
oilfield, mine, building, transportation and other industries.
Specifications:
45 DEGREE METRIC FEMALE 24 DEGREE CONE O-RING H.T.ISO 12151-2 DIN 3865
20541 20541-T
| Part No. | Thread E | Hose Bore | THBE O.D. | Dimensions | O-ring | |||
| DN | DASH | A | C | S2 | ||||
| 20541-14-04 | M14X1.5 | 6 | 04 | 6 | 1.5 | 19 | O04.5X1.5 | |
| 20541-16-04 | M16X1.5 | 6 | 04 | 8 | 1.5 | 22 | O06.5X1.5 | |
| 20541-16-05 | M16X1.5 | 8 | 05 | 8 | 1.5 | 22 | O06.5X1.5 | |
| 20541-18-04T | M18X1.5 | 6 | 04 | 10 | 1.5 | 22 | O08.0X1.5 | |
| 20541-18-06 | M16X1.5 | 10 | 06 | 10 | 2 | 24 | O08.0X1.5 | |
| 20541-20-06T | M20X1.5 | 10 | 06 | 12 | 2.5 | 24 | O10.0X1.5 | |
| 20541-20-08 | M20X1.5 | 12 | 08 | 12 | 2.5 | 27 | O10.0X1.5 | |
| 20541-22-06T | M22X1.5 | 10 | 06 | 14 | 3 | 27 | O11.0X1.5 | |
| 20541-22-08 | M22X1.5 | 12 | 08 | 14 | 2.5 | 27 | O11.0X1.5 | |
| 20541-24-08T | M24X1.5 | 12 | 08 | 16 | 3 | 30 | O13.0X2.0 | |
| 20541-30-10T | M30X2 | 16 | 10 | 20 | 2.5 | 36 | O16.3X2.4 | |
| 20541-30-12 | M30X2 | 20 | 12 | 20 | 3 | 36 | O16.3X2.4 | |
| 20541-36-12T | M36X2 | 20 | 12 | 25 | 3.2 | 46 | O20.3X2.4 | |
| 20541-36-14T | M36X2 | 22 | 14 | 25 | 3.2 | 46 | O20.3X2.4 | |
| 20541-42-16T | M42X2 | 25 | 16 | 30 | 3.9 | 50 | O25.3X2.4 | |
| 20541-52-20T | M52X2 | 32 | 20 | 38 | 4.5 | 60 | O33.3X2.4 | |
| 20541-52-24T | M52X2 | 40 | 24 | 38 | 4.5 | 60 | O33.3X2.4 | |
Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 20542-**-**.
Production Flow:
Material of ferrule: carton steel 20#
Material of fitting: carton steel 45#
All of our machines are CNC machines
Packageing: Well packed by cartons and free fumigating wooden box.
Strong Packaging of Hydraulic Hose Fitting from PAISHUN
All fittings are with PVC plastic caps and plugs to protect against Dust.
All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.
In order to guarantee that even in worst sea / maritime weather/transport conditions,
the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.
Normal Measure:
Carton:24cm X 24cm X 16cm
Wooden box: 110cm X 85cm X 75cm
Usually 42 cartons can be packed in a wooden box.
Surely we can be customized the measure according to your request.
