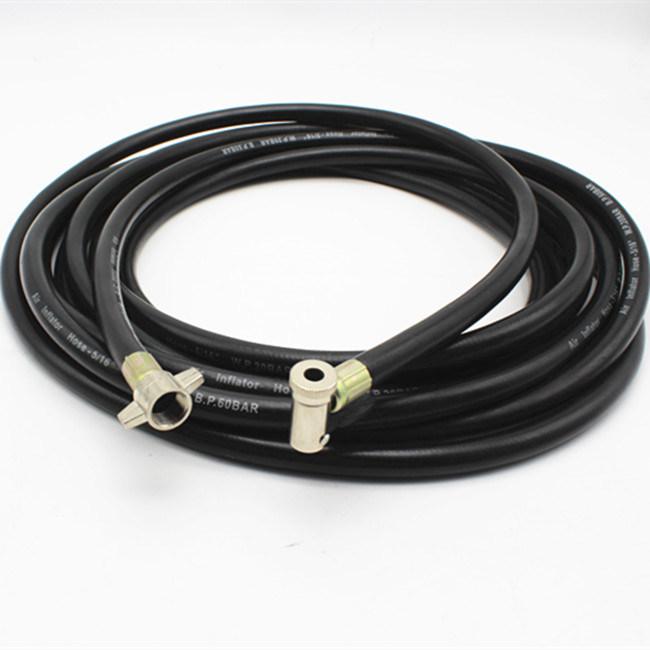

Polyester Fiber Reinforcement 300PSI Tire Inflator Air Hose
300PSI Polyester Fiber Reinforcement Good Aging Resistance Tire Inflator Air Hose
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +70ºC
Color: Black, Red, Blue etc.
Application: Mainly used for conveying of air, insert gas, construction, engineering, shipbuilding, steel production etc.
Standard length: 8m,10m,12m,15m, 20m
Specification of hose:
| Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m/pc | kg/pc | |
/ |
1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 10 | 1.8 |
| / | 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 20 | 3.5 |
| / | 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 10 | 2.3 |
| / | 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 20 | 4.5 |
| / |
3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 10 | 2.8 |
| / | 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 20 | 5.4 |
Specification of fittings:
*German or Universal 3 in 1 quick coupler and plug.
*1/4 bsp female swivel ends (both ends).
* Euro style long bard clip on tyre inflator (one side) +screw on m16 x 1.5mm test point adaptor valve (other side).
