Character of PTFE
The PTFE hose material is made of Japanese Daikin.
The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.
PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:
1. Excellent weather resistance, long service life, no brittle fracture and no aging.
2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.
3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
4. With a very low friction coefficuent. non-flammable.
5. With very low evaporate transpiration rate, cold liquid is not volatile.
6. With excellent electrical charateristics (does not change with frequency and temperature changes)
7. Excellent mechanical properties, shock resistance and flexibility.

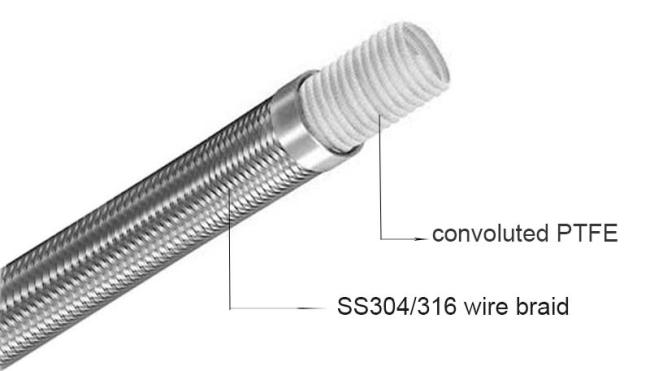

Inner tube: corrugated PTFE
Outer tube: stainless steel 304 wire braided
Temperature range: -65℃ to +260℃
Advantage:
high temperature resistance, corrsion resistance, excellent flexibility and resistance to distortion
| no | Specification | I.D. | O.D. | Thickness | W.P. | B.P. | Min.Bending Radius |
| mm | mm | mm | bar | bar | mm | ||
| 1 | 1/4 | 6.4 | 11.5 | 0.8 | 150 | 400 | 20 |
| 2 | 5/16 | 8 | 12.3 | 0.65 | 130 | 365 | 25 |
| 3 | 3/8 | 10 | 14.2 | 0.65 | 125 | 350 | 33 |
| 4 | 1/2 | 13 | 17.2 | 0.85 | 110 | 330 | 42 |
| 5 | 5/8 | 16 | 21.6 | 0.9 | 80 | 245 | 50 |
| 6 | 3/4 | 19 | 25.3 | 1 | 70 | 215 | 63 |
| 7 | 1 | 25 | 31 | 1 | 50 | 150 | 79 |
| 8 | 1 1/4 | 32 | 39 | 1.1 | 45 | 140 | 125 |
| 9 | 1 1/2 | 38 | 45 | 1.45 | 43 | 120 | 145 |
| 10 | 2 | 50 | 60 | 1.5 | 35 | 100 | 180 |

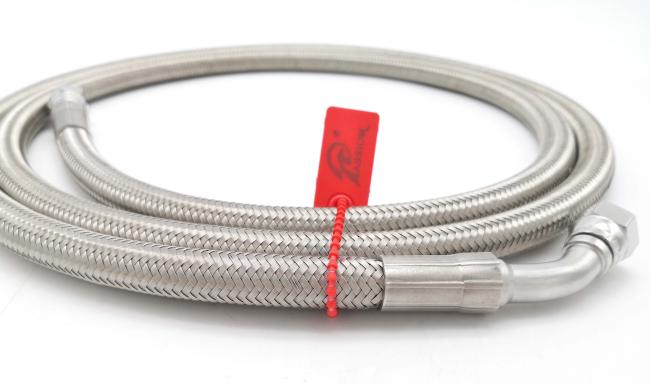

PTFE Hose Assembly
We can crimp the hose assembly in our factory.
Ferrule: 00TF0
Fitting: According to customers' request. Most of them use JIC Female thread.
Material 1: carbon steel with zinc plated
Material 2: carbon steel with nickel alloy plated
Material 3: SS304 / SS316
